Danfoss 023R9615 modulinQ Hermetic Filter Drier Installation Guide
Installation guide for the Danfoss modulinQ Hermetic filter drier (Type DMC / DCC). Includes assembly steps, torque specifications, operating limits, and maintenance requirements.
Table of contents
Quick guide from the manual
The Danfoss modulinQ Hermetic filter drier (Type DMC / DCC) is designed for modular refrigeration systems. Key operating conditions include a maximum working pressure (MWP/PS) of 49 bar and an operating temperature range of -40°C to +85°C. The unit must be installed within +/- 10° of the vertical position and requires mandatory support via clamping.
Installation procedure
Follow these steps to install the filter drier:
- Preparation: Remove any dirt or debris from the connection surfaces before assembly.
- Pre-assembly: Apply oil (e.g., Reniso Triton SE 55) to the metal seal. Insert the metal seal into the bottom part of the assembly.
- Tightening: Connect the top and bottom parts. Tighten the connection to a torque of 60 +/- 12 Nm.
Safety and maintenance
To ensure system integrity and safety, adhere to the following requirements:
- Always discard used metal seals and o-rings; replace them with new ones for every installation.
- Always use dedicated metal seals and o-rings.
- The ModulinQ Hermetic receiver filter drier must be connected to a ModulinQ Expansion module.
- For a complete list of approved refrigerants, visit the official Danfoss website at store.danfoss.com.
Technical specifications
The following specifications apply to the DMC / DCC series:
- Refrigerant: R290 (check website for full list).
- Media Temperature: -40°C to +85°C.
- MWP/PS: 49 bar.
- Max Tilt: +/- 10° vs vertical.
- Support: Obligatory clamping required.
Official resources from the manual
Manufacturer information
Danfoss A/S
Practical help
Common problems
Leakage at connection
Ensure new metal seal and o-rings are used. Do not reuse old components.
Mechanical instability
Ensure mandatory support/clamping is installed as per instructions.
Before use
- Verify refrigerant compatibility (R290 approved).
- Ensure operating temperature is between -40°C and +85°C.
- Confirm support/clamping is available for installation.
- Obtain new metal seal and o-rings.
- Have torque wrench ready (60 +/- 12 Nm).
Specs in practice
- MWP/PS: 49 bar
- Maximum Working Pressure allowed for the unit.
- Torque: 60 +/- 12 Nm
- Required tightening force for the connection.
- Tilt: +/- 10° vs vertical
- Maximum allowable installation angle.

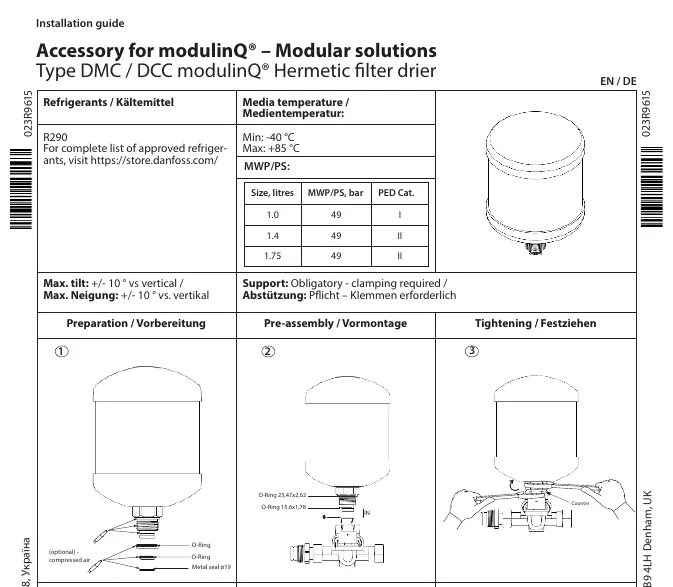

Images and diagrams
- Step 1: Clean surfaces of dirt and debris.
- Step 2: Apply oil to seal and insert into bottom part.
- Step 3: Tighten connection to specified torque.
Model compatibility
- Must be connected to modulinQ® Expansion module.
- Approved refrigerants: R290 (check website for full list).
