Installation Guide for Deante KON 007S Linear Slot Drain
A comprehensive installation guide for the Deante KON series linear slot drains (models 007S, 008S, 009S). This guide covers assembly, leveling, waterproofing, and finishing procedures to ensure proper drainage and installation.
Table of contents
Manual images
Click an image to enlargeQuick Installation Guide
The Deante KON series linear slot drain requires precise installation to ensure effective water drainage. Key requirements include maintaining a 2-3% slope towards the outlet, applying waterproofing foil up to a height of 1.5m, and allowing 24 hours for silicone sealant to cure before use.
Assembly and Preparation
Begin by assembling the drain components. Attach the mounting brackets to the drain body using the provided hardware. Ensure all feet and leveling screws are securely attached to the drain body to allow for height adjustment during installation.
Installation and Leveling
Place the drain in the designated location. Use a spirit level to verify the installation angle. It is critical to maintain a slope of 2-3% towards the drain outlet to prevent water pooling. Verify the slope is at least 2.5% before proceeding with concrete or screed application.
Waterproofing and Finishing
Once the drain is leveled and secured, apply waterproofing foil to the surrounding area. The foil should be applied up to a height of 1.5m on the walls to ensure a watertight seal. After the floor is tiled, apply silicone sealant around the edges of the drain grate. Allow the silicone to cure for at least 24 hours before using the shower. Finally, insert the grate into the drain body.
Manufacturer information
Deante
Practical help
Common problems
Water pooling in the shower area
Ensure the drain was installed with a 2-3% slope towards the outlet. Re-check the leveling if necessary.
Leaks around the drain perimeter
Ensure proper application of waterproofing foil and silicone sealant. Allow 24 hours for the silicone to cure before exposing it to water.
Before use
- Verify the drain is installed with a 2-3% slope.
- Ensure waterproofing foil is applied up to 1.5m height.
- Check that all mounting feet are secure.
- Apply silicone sealant around the drain edges.
- Allow 24 hours for the silicone to cure before using the shower.
Specs in practice
- Waterproofing height
- 1.5m is the recommended height for applying waterproofing foil on walls.
Images and diagrams

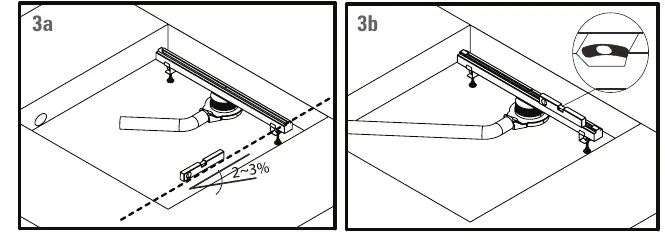

- Step 3a: Demonstrates using a spirit level to check the 2-3% slope.
- Step 6a: Illustrates the application of waterproofing foil up to 1.5m.

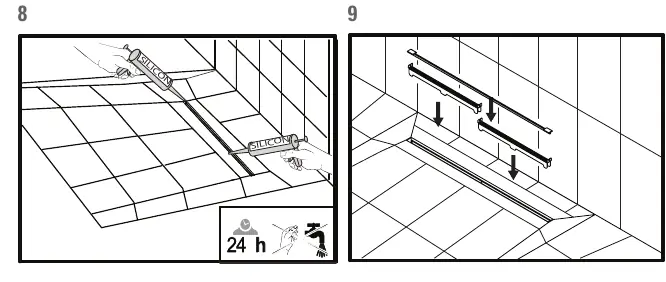

- Step 8: Shows the application of silicone sealant around the drain.
Model compatibility
- Instructions apply to Deante KON 007S, KON 008S, and KON 009S models.
