Installation and User Manual for Hansgrohe Rebris and Tecturis Basin Mixers
A comprehensive installation and user guide for Hansgrohe Rebris S 80, Rebris E 80, Tecturis E 80, and Tecturis S 80 basin mixers. Includes technical specifications, installation steps, maintenance tips, and parts diagrams.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides installation and operating instructions for the Hansgrohe Rebris and Tecturis 80 series basin mixers. Before installation, inspect the product for transport damage. The product is designed exclusively for drinking water systems. Hansgrohe recommends flushing the system after installation and not using the first half-liter of water drawn in the morning or after prolonged periods of non-use for drinking.
Safety Notes
- Wear protective gloves during installation to prevent crushing and cutting injuries.
- The product must only be used for bathing, hygienic, and body cleaning purposes.
- Do not use silicone containing acetic acid during installation.
Installation
The installation process varies slightly by model (Rebris vs. Tecturis). Ensure pipes are flushed and tested according to applicable standards. Follow the specific installation steps provided in the manual for your model (Rebris E/S 80, Tecturis E 80, or Tecturis S 80). Ensure all connections are tightened to the specified torque (e.g., 3 Nm or 4 Nm) to prevent leaks.
Technical Data
The mixers are equipped with EcoSmart (flow limiter) as standard.
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Note: 1 MPa = 10 bar = 147 PSI
Maintenance and Operation
Regular maintenance ensures the longevity of your mixer. Refer to the parts diagrams for specific replacement part numbers. The aerator should be cleaned periodically. If the flow is restricted, check the EcoSmart flow limiter. For cleaning, follow the manufacturer's cleaning recommendations available at www.hansgrohe.com/cleaning-recommendation.
Official resources from the manual
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Leaking after installation
Check all seals and ensure connections are tightened to the specified torque (e.g., 3 Nm or 4 Nm).
Reduced water flow
Check the EcoSmart flow limiter or clean the aerator for debris.
Before use
- Inspect the product for transport damage before installation.
- Flush the pipes thoroughly before connecting the mixer.
- Wear protective gloves during assembly.
- Ensure the water supply pressure is within 0.1 - 0.5 MPa.
- Do not use acetic acid-based silicone.
Specs in practice
- Operating pressure
- The maximum pressure the mixer can handle is 1 MPa. Recommended pressure is 0.1 to 0.5 MPa.
Images and diagrams

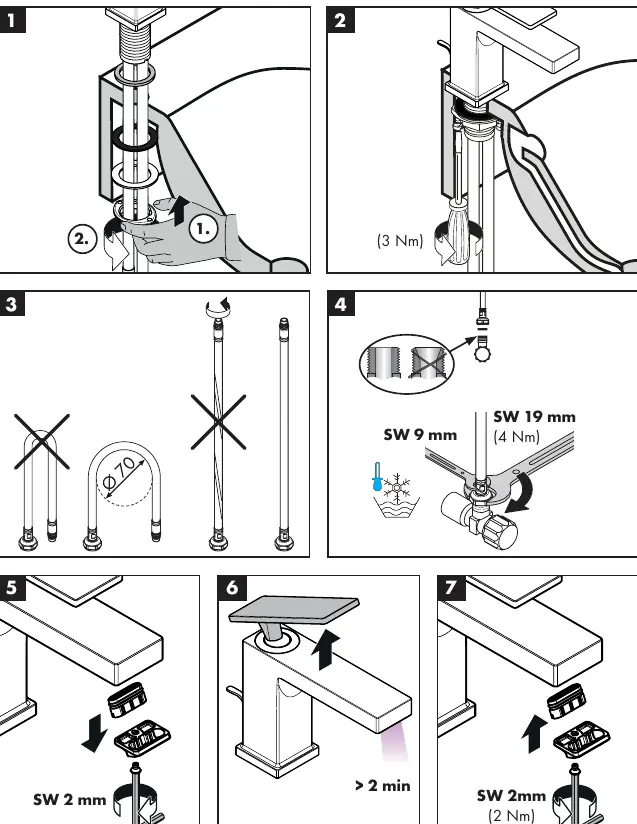

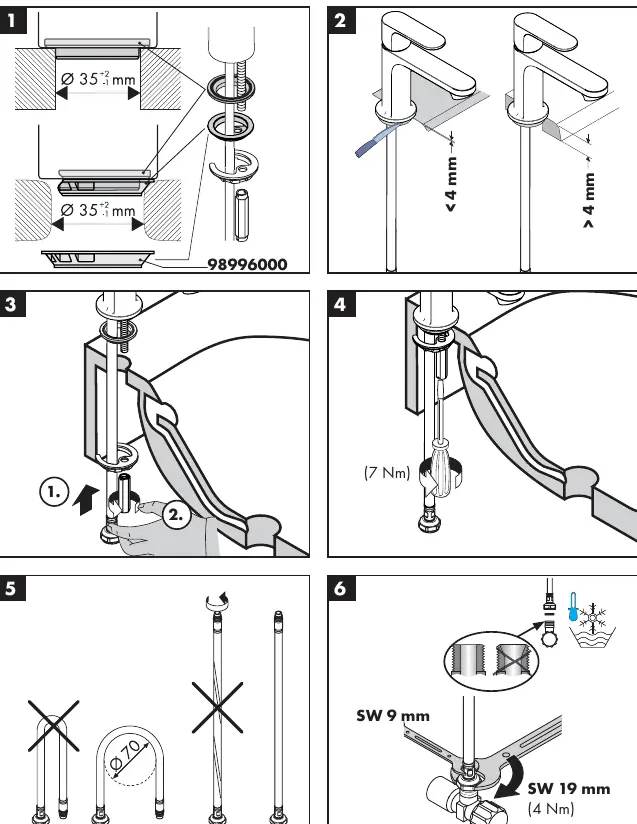

- Installation diagrams show the mounting sequence for Rebris and Tecturis models.

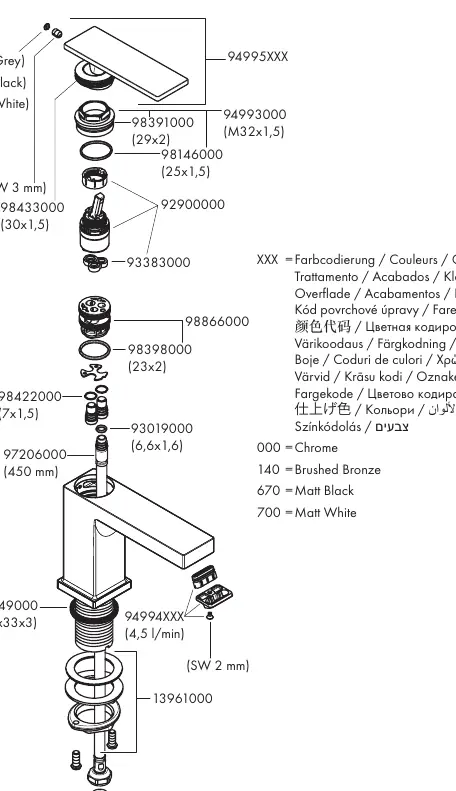

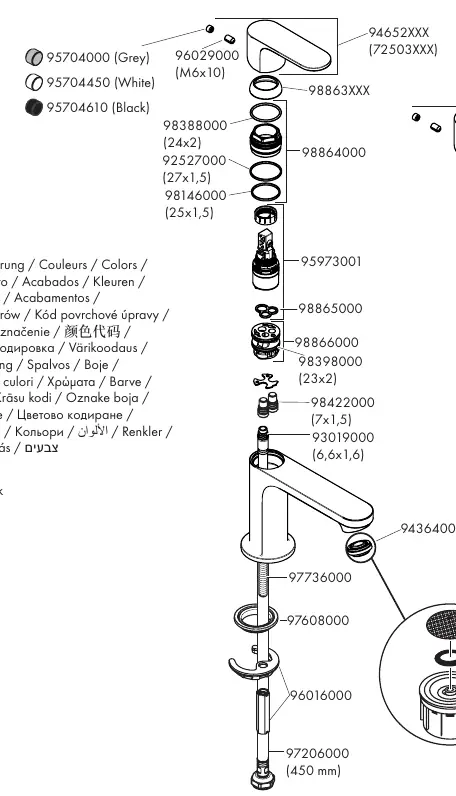

- Exploded views provide part numbers for maintenance and repair.
Model compatibility
- Designed for use with drinking water systems.
- Not suitable for use with acetic acid-based silicone.
