User Manual for Glacier Bay Utility Sink Kit 040GB4510WTGYCP

Quick guide from the manual

This guide provides instructions for installing the Glacier Bay Utility Sink Kit. Before beginning, ensure you have all parts listed in the package contents. Installation should be performed by qualified personnel in accordance with local codes. Always wear safety goggles and gloves during installation.

Tools required

• Phillips and Flathead screwdrivers
• Pipe wrench and pliers
• Hacksaw and utility knife
• Hammer and small wooden block
• Carpenters level and pencil
• Silicone sealant
• Safety goggles and gloves

Installation

1. Installing the steel legs

Insert the 4 steel legs into the corner sockets of the sink. Place a small wooden block against the leg and tap with a hammer to drive the leg into the tapered socket until secure. Do not overstrike or wiggle the legs.

2. Installing the levelers

Attach the levelers to the legs using the included 1/4" bolt and nut. Hand tighten, then turn the sink to the correct position.

3. Installing the faucet

Shut off the water supply. Apply a thin bead of silicone sealant to the underside of the putty plate. Set the faucet into the sink holes. Underneath the sink, assemble the large washers and mounting nuts onto the faucet shanks and tighten.

4. Installing the faucet hand sprayer

Insert the small washer into the hose nut and tighten the hand sprayer onto the spray hose. Insert the spray hose into the spout.

5. Attaching the quick connector

Underneath the sink, push the quick connector from the spray hose into the receiving block until it clicks. Pull down moderately to ensure the connection is secure.

6. Installing the weight and garden hose adapter

Align the weight at the "weight here" marking on the hose and snap it together. Optionally, remove the aerator from the hand sprayer and attach the garden hose adapter.

7. Installing the water supply lines

Thread the new water supply lines to the faucet shanks and tighten. Do not connect to the shut-off valve yet.

8. Installing the drainage kit

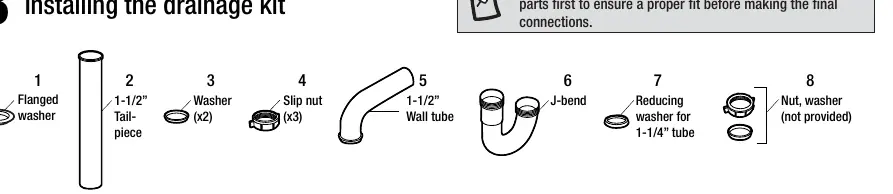

Loosely tighten all parts first to ensure a proper fit. Assemble the wall tube, J-bend, and tail-piece using the provided slip nuts and washers. If trimming of the tail-piece is necessary, mark with a pencil and cut with a hacksaw. Ensure the trim line does not exceed the socket line. Tighten all slip nuts by hand; use a pipe wrench only if leaks occur.

9. Connecting the supply lines

Attach supply lines to the hot and cold shut-off valves. Turn on the valves and check for leaks. Remove the hand sprayer and run the faucet for a minute to flush debris, then re-attach the sprayer.

Care and Cleaning

For Utility Sink: Clean regularly to prevent staining. Use soap or non-abrasive surface cleaner. Use isopropyl alcohol for grease, oil, paint, or ink stains. Rinse with water and wipe dry to prevent water spots. Do not use sharp instruments, razor blades, or chlorine bleach.

For Faucet: Wipe away water after use. Use a damp, non-abrasive sponge. Do not use polishing powder, granular cleaners, nylon brushes, or abrasive detergents.
