User Manual for Della 048-TL-W8KI, 048-TL-W10KI, 048-TL-W12KI Air Conditioner
Quick guide for the Della 048-TL-W8KI, 048-TL-W10KI, and 048-TL-W12KI air conditioners. Includes installation steps, operation instructions, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual covers the installation and operation of the Della 048-TL-W8KI, 048-TL-W10KI, and 048-TL-W12KI air conditioners. Before use, ensure the unit is properly installed in a window, grounded, and that the power supply matches the requirements. The unit features multiple modes including Cool, Dry, Fan, and Auto, as well as energy-saving options like Eco and Sleep modes.

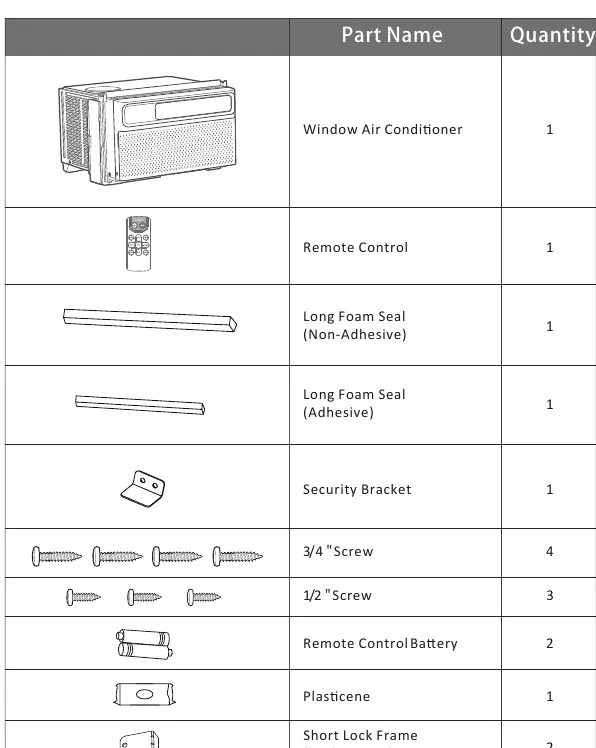

Installation

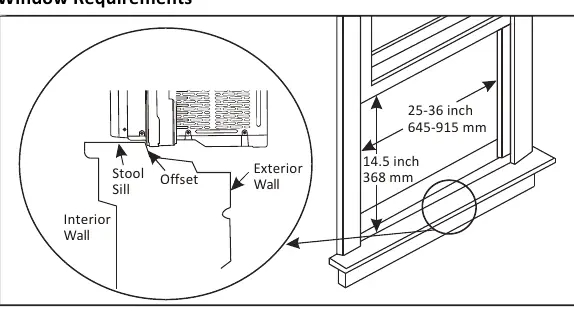

The air conditioner is designed for standard single-hung or double-hung windows. Ensure the window width is between 25 and 36 inches (645-915 mm) and provides at least 14.5 inches of vertical clearance.
- Packaging: Remove all packaging straps and wraps.
- Foam Seal: Apply the adhesive foam seal to the upper window frame.
- Placement: Lift the unit into the windowsill, ensuring it is centered. The unit should be tilted slightly (about 3 degrees) toward the outside for proper condensate drainage.
- Brackets: Extend side brackets and secure them to the window frame using the provided 3/4 inch screws.
- Sealing: Secure side panels to the brackets and use plasticene to fill any remaining crevices.
- Top Rail: Install the 1/2 inch screw into the top rail.

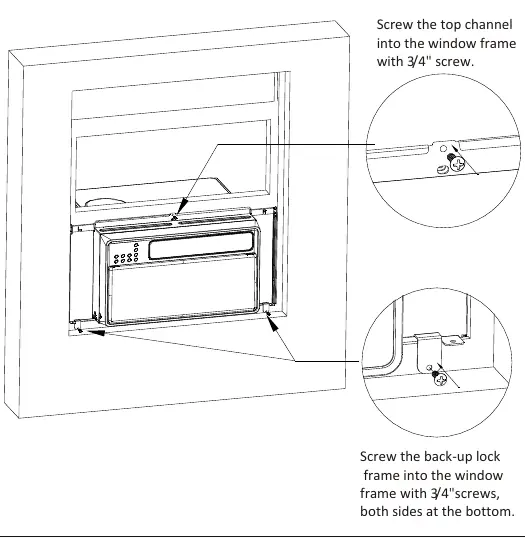

- Security: Attach the security bracket to the top of the window sash.
Operation
The unit can be controlled via the onboard control panel or the included remote control.
- Power: Turns the unit on or to standby.
- Mode: Cycles through Cool, Dry, Fan, and Auto modes.
- Fan Speed: Adjusts between Low, Med, High, and Auto.
- Temperature: Use the up/down arrows to adjust the set temperature.
- Eco Mode: Saves energy by cycling the compressor and fan based on the set temperature.
- Sleep Mode: Gradually adjusts temperature for comfort and mutes button sounds.
- Timer: Allows setting the unit to turn on or off automatically (0.5 to 24 hours).
Maintenance
Regular maintenance ensures optimal performance.

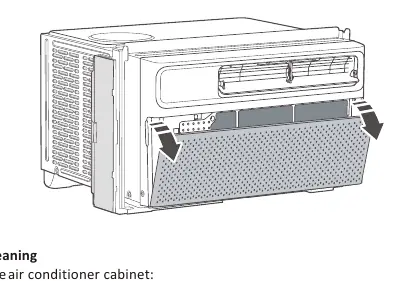

- Air Filter: Check monthly. Pull the grille out, remove the filter, wash with warm water and mild soap, and let it dry completely before reinstalling.
- Cabinet: Dust with an oil-free cloth or wipe with a damp cloth using mild soap. Do not use harsh cleaners.
- Winter Storage: Remove the unit from the window and store it in the original box.
Troubleshooting
If the unit does not start, check the power plug, house fuse, or circuit breaker. If the unit is not cooling effectively, ensure the filter is clean, the room is not too warm, and the unit is not blocked by curtains or furniture. If water is dripping inside, ensure the unit is tilted slightly toward the outside.
Manufacturer information
Della
Practical help
Common problems
The air conditioner will not start
Check if the plug is pushed completely into the outlet, check the house fuse or circuit breaker, or press the RESET button on the power cord plug.
The air conditioner does not cool as it should
Ensure airflow is not restricted, lower the thermostat temperature, clean the dirty air filter, or allow time for the room to cool down.
Water is dripping inside
The unit is likely not tilted correctly. Ensure it is tilted slightly toward the outside to allow for proper water drainage.
Noise when the unit starts
A 'da-da' sound for about 30 seconds is normal when the compressor starts.
Before use
- Ensure the window width is between 25 and 36 inches.
- Verify 14.5 inches of vertical clearance is available.
- Ensure the electrical outlet is grounded and within reach of the power cord.
- Check that the unit is tilted slightly (about 3 degrees) toward the outside.
- Ensure the filter is clean and properly installed.
Specs in practice
- RATED Capacity
- The cooling power of the unit measured in Btu/h (8000, 10000, or 12000 depending on the model).
- Application area
- The recommended room size for the unit, ranging from 300 to 520 sq.ft depending on the model.
- Power supply
- The unit requires a 1Ph, 115V, 60Hz power source.
Images and diagrams
- The installation diagrams illustrate the correct tilt angle for drainage and the placement of side brackets and screws.
- The control panel diagram identifies the location of buttons for power, mode, fan speed, and temperature control.
Model compatibility
- Designed for standard single-hung or double-hung windows.
- Not suitable for installation in unventilated spaces smaller than 4 square meters.
