User Manual for Della 048-GM-48266 Portable Air Conditioner

Quick guide from the manual

This portable air conditioner is designed for indoor use to provide cooling, dehumidification, and fan-only operation. Before first use, ensure the unit has been kept in an upright position for at least 2 hours. The unit requires proper installation of the exhaust hose and window seal-plate to function correctly.

Safety Instructions

Electrical Safety:

• All wiring must comply with local and national electrical codes.
• The unit must be grounded. Do not remove the ground prong or use an adapter/extension cord.
• Never connect or disconnect the power plug with wet hands.
• Do not share the power outlet with other appliances.

General Safety:

• Indoor use only. Do not use in bathrooms or humid environments.
• Keep children away from the unit.
• Do not cover or obstruct air inlets or outlets.
• Move and install the unit with two or more people.
• Do not use chemical solvents to clean the unit.

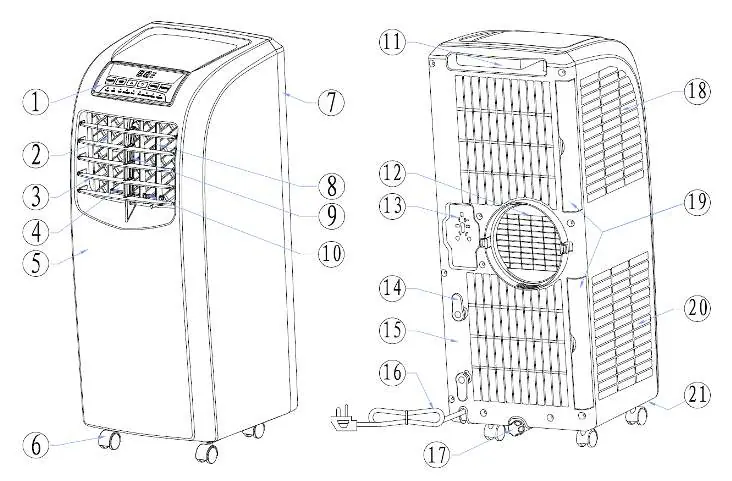

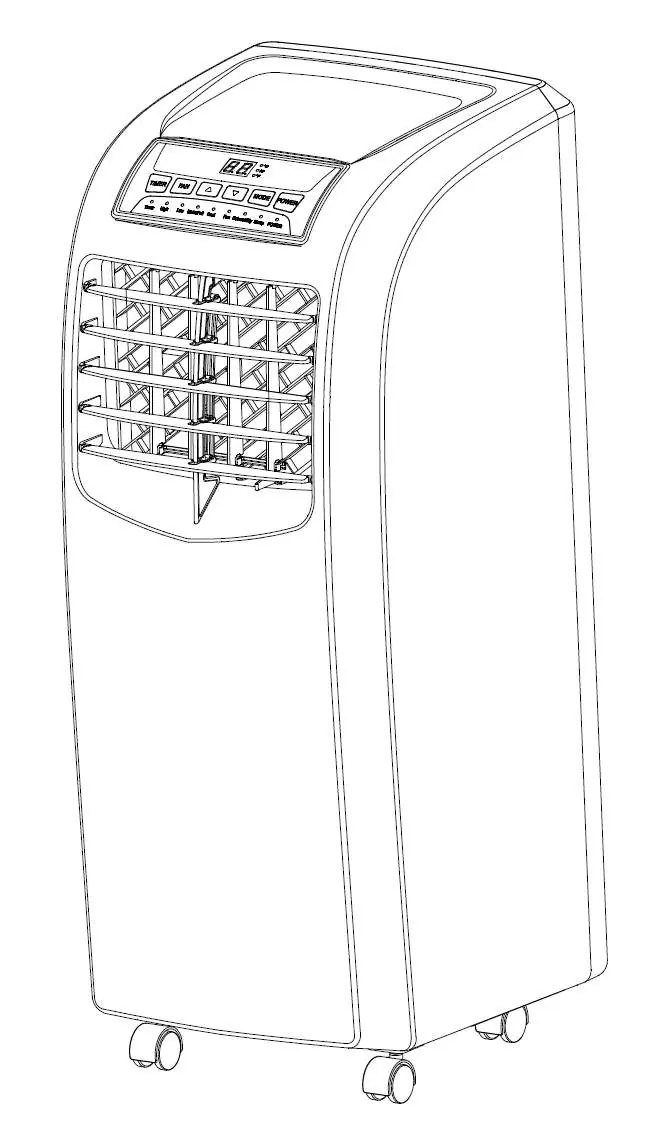

Features and Parts

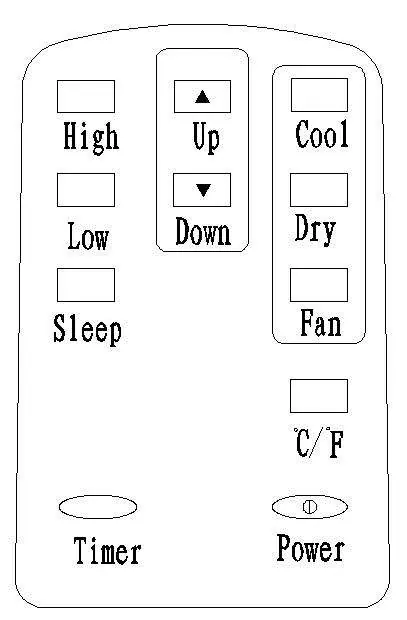

The unit features a control panel, vertical and horizontal louvers, a remote control compartment, and an exhaust hose assembly. The control panel allows for mode selection (Cool, Dehumidify, Fan, Sleep), fan speed adjustment, and timer settings.

Operation and Settings

Modes:

• Cool Mode: Adjustable temperature range of 17-30°C (62-86°F). Compressor and fan start when room temperature is 1°C higher than the set temperature.
• Fan Mode: Fan runs at set speed; compressor does not work. Temperature cannot be adjusted.
• Dehumidify Mode: Fan runs at low speed automatically.
• Sleep Mode: Available under cooling mode. Temperature increases by 1°C after 2 hours, and another 1°C after another 2 hours.

Timer: Can be set for automatic ON or OFF within a range of 1-24 hours.

Installation

Exhaust Hose Installation:

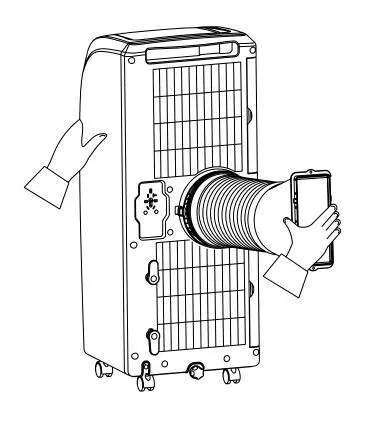

1. Extend the exhaust hose and screw the round adapter onto it (anticlockwise).
2. Attach the exhaust hose assembly to the exhaust outlet on the back of the unit.
3. Install the window seal-plate in the window and secure it with screws.
4. Connect the rectangle end of the exhaust hose adapter to the window seal-plate.

Important: Keep the unit at least 50cm away from walls or other objects. The exhaust hose length is 280mm-1500mm; do not extend it.

Drainage

Manual Drain: When the water tank is full, the unit stops, and the "FL" indicator flashes. Place a tray below the drain outlet, remove the drain cover and stopper to drain the water.

Continuous Drain: Connect a 13mm PVC drain hose to the drain hole and lead it to a drain or outdoor area.

Maintenance

Filter Cleaning: Clean the filters every two weeks to maintain performance.

1. Remove filters from the back and side panels.
2. Wash gently in warm water (about 40°C) with detergent.
3. Dry in the shade before reinstalling.

Troubleshooting

If the unit fails to start, check the power supply, drain the water tank, or check the ambient temperature (recommended 10-35°C). Error codes include E1 (tube temperature sensor failure), E2 (room temperature sensor failure), and E4 (anti-freeze protection). If the "FL" indicator is on, drain the water.
