User Manual for Dometic 2 Cook 3 Gas Stove
A comprehensive user guide for the Dometic 2 Cook 3 gas stove. This manual covers safety instructions, assembly, gas connection, operation, GreenGrill cooking, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Dometic 2 Cook 3 is a portable gas stove for outdoor use. It operates on gas cylinders via a hose and regulator. It features piezo ignition and GreenGrill cooking surfaces. p. 1, 15
Key actions
- Connect gas supply p. 13, 15
- Light the burner p. 15
First start
- Season the cooking surface p. 14
Show 3 more answers Show less
Problems and fixes
Blocked jet
Remove cooking surfaces, turn upside down, unscrew bottom panel, remove burner, and replace jet (K).
p. 17Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Heat Input | 2.2kW per burner | Total output 4.4kW | p. 13 |
Where to find it in the PDF
- Safety Information p. 14
- Assembly and Use p. 15
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Dometic 2 Cook 3 is a portable gas stove designed for outdoor use. Before using the appliance, ensure it is placed on a firm, level surface and that you have adequate ventilation. Always check for gas leaks using soapy water before lighting. The appliance uses a hose and regulator to connect to a gas cylinder. Lighting is achieved using the built-in piezo igniter or a BBQ lighter.
Safety Information
- For outdoor use only.
- Do not use in unventilated areas.
- Keep gas containers away from heat and flames.
- Accessible parts may be very hot; keep children away.
- Do not modify the appliance.
- If you smell gas, turn off the gas supply immediately and move to a flame-free location.
Assembly and Connection
The appliance requires an approved hose and regulator. Ensure the rubber seal on the regulator is in good condition before connecting. Connect the hose to the valve tailpiece and ensure it is properly seated. Always check for leaks by applying soapy water to the joints; bubbles indicate a leak.
Operating the Appliance
Lighting with Piezo
- Remove cooking surfaces to easily see the burner.
- Push and turn the control knob 90 degrees anti-clockwise.
- Press the piezo button to ignite.
- If it does not ignite, turn the knob to OFF, wait 30 seconds, and repeat.
Lighting with a BBQ Lighter
For cold starts, you can light the burner from the top. When hot, insert a BBQ lighter through one of the vent holes under the burner (do not use the large hole directly under the burner) and turn the control knob anti-clockwise.
GreenGrill Cooking
Most cooking surfaces feature a GreenGrill ceramic coating. Seasoning the surface before first use is recommended: rub lightly with cooking oil and heat on medium for 2-3 minutes. Always use silicone or wooden utensils to protect the coating. Clean surfaces only after they have cooled completely using warm soapy water.
Maintenance and Troubleshooting
Regular cleaning prolongs the life of the appliance. If the burner flame is weak or non-existent, the jet may be blocked. To replace a blocked jet: remove cooking surfaces, turn the unit upside down, remove the bottom panel, unscrew the burner, and replace the jet (K) using a suitable spanner. Do not use pliers on the jet.
Technical Specifications
The appliance operates at various pressures (28-30mbar, 37mbar, or 50mbar) depending on the gas type and region. The nominal heat input is 2.2kW per burner (4.4kW total).
Manufacturer information
Dometic
Practical help
Common problems
Gas leak (smell of gas)
Turn off gas supply immediately at the cylinder and appliance. Check all connections with soapy water.
Small or no flame
The jet may be blocked. Inspect and clean or replace the jet.
Flame burns back (light back)
Turn off gas supply at cylinder then appliance. Check seal condition and re-light.
Before use
- Ensure all protective packaging is removed.
- Check hose and regulator for damage or wear.
- Ensure appliance is on a firm, level surface.
- Check for gas leaks using soapy water.
- Ensure adequate ventilation.
Show more Show less
Specs in practice
- Gas Pressure
- Operating pressure required (28-30mbar, 37mbar, or 50mbar depending on region/gas type).
- Nominal Usage
- Gas consumption per burner (160g/h).
- Gross Heat Input
- Total heat output (2.2kW per burner).
Images and diagrams

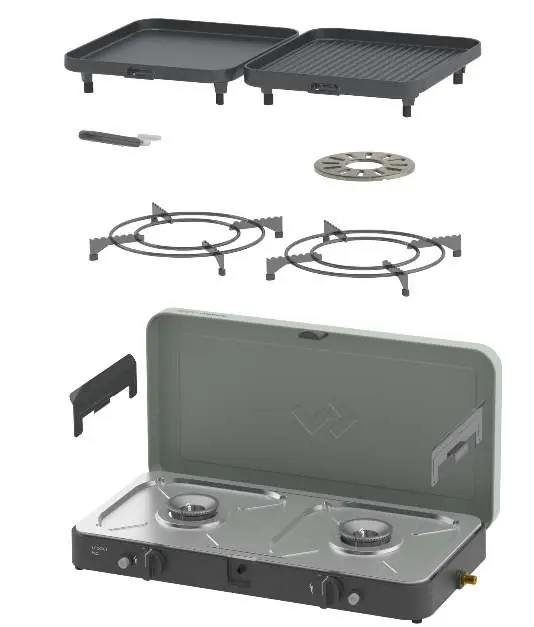

- Diagrams show assembly of cooking surfaces, gas connection (regulator/hose), and jet replacement procedure.
Model compatibility
- Use only approved hose and regulator.
- Compatible with gas cylinders up to 500mm high and 400mm wide.
