User Manual for Draper 98676 and 98677 Pressure Washer
Quick guide for Draper 98676 and 98677 pressure washers. Includes assembly, operation, maintenance, safety instructions, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Draper 98676 and 98677 are electric pressure washers. The 98676 model operates at 1600W with 90bar working pressure, while the 98677 operates at 2200W with 110bar working pressure. Both feature a Total Stop Device and require an upright operating position. p. 5, 17
Key actions
- Bleeding air from the system p. 18
- Switching on the machine p. 17
First start
- Assemble the handle, lance, and hose, connect the water supply, bleed the air from the system, and then switch the power on. p. 11, 14, 17, 18
Show 4 more answers Show less
Problems and fixes
Motor pulsing
Bleed air from the system.
p. 18Maintenance and reset
- Use the cleaning pin to clear nozzle blockages. p. 18
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated input (98676) | 1600W | Power consumption | p. 5 |
| Rated input (98677) | 2200W | Power consumption | p. 5 |
| Working pressure (98676) | 90bar | Operating pressure | p. 5 |
| Working pressure (98677) | 110bar | Operating pressure | p. 5 |
Where to find it in the PDF
- Assembly p. 11, 12, 13, 14
- Operation p. 17
- Maintenance p. 18
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the Draper 98676 and 98677 pressure washers. These units are designed for outdoor cleaning tasks such as vehicles, caravans, and driveways. Important: Always ensure the machine is switched off before plugging it in and never run the motor dry. The machine must be used in an upright position.
Assembly
Before use, assemble the unit following these steps:
- Transport Handle: Slide the handle section over the mounting points and secure with the 2 supplied screws.
- Lance Holder and Cable Hook: Attach these to the designated location points on the main body.
- Lance and Nozzles: Connect the lance to the trigger assembly by pushing and turning 45 degrees anti-clockwise. Push-fit nozzles into the lance until they click.

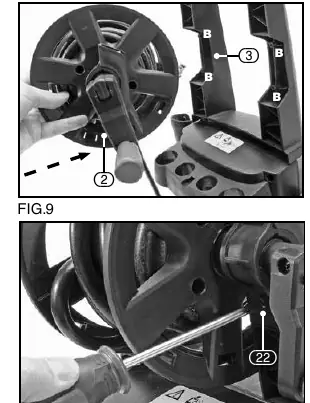

- Hose Reel (98677 only): Position the reel in the handle recess and secure with 4 screws.
- High Pressure Hose: Connect to the trigger assembly and the high-pressure outlet on the machine.
- Water Supply: Screw the inlet adaptor to the machine and connect a water hose. Ensure the supply is between 1.5bar and 6.0bar with a flow of 7 litres/min.
Operation
The pressure washer features a Total Stop Device, which starts and stops the motor when the trigger is activated. To start the machine:
- Ensure the switch is in the OFF (O) position.
- Connect the water supply and turn it on.
- Pull the trigger to bleed air from the system.
- While holding the trigger, switch the power to ON (I).
- Release the trigger when air is purged.
After use, switch off the power, turn off the water, pull the trigger to release pressure, and disconnect the hoses.
Maintenance and Troubleshooting
Regular maintenance ensures longevity. If the motor pulses, there is likely air in the system; follow the bleeding procedure (connect water, turn on, run for 20-30 seconds, then attach hose). Use the provided cleaning pin to clear blockages in the nozzle. If the pump fails to start, check the fuse or power cable.
Safety
Always wear appropriate PPE (goggles, gloves). Never point the jet at people, animals, or electrical equipment. Do not store the machine at or below 0°C to prevent frost damage.
Manufacturer information
Draper Tools
Practical help
Common problems
Motor pulsing
Air in the system. Perform the bleeding procedure (run water through the system without the high-pressure hose attached for 20-30 seconds).
Pump fails to start
Check if the plug fuse is blown or the power cable is damaged. Replace fuse or contact an authorized repair agent.
Bad spray pattern
Nozzle is blocked. Use the provided cleaning pin to remove debris.
Poor pressure
Water leaks. Check and tighten all hose connections.
Before use
- Ensure the machine is in an upright position.
- Check that the power switch is in the OFF (O) position before plugging in.
- Connect the water supply and ensure it is turned on.
- Bleed air from the system by pulling the trigger before switching the motor on.
- Ensure the high-pressure hose is fully unwound before starting.
Show more Show less
Specs in practice
- Working pump pressure
- Operating pressure: 90bar (98676) or 110bar (98677).
- Max. flow rate
- Water throughput: 7.1L/min (98676) or 8.2L/min (98677).
- Max. water feed temperature
- Maximum temperature of input water is 50°C.
Images and diagrams
- The identification diagram (Page 9) labels all main components including the spray trigger, hose reel, and detergent bottle.
- The assembly diagrams (Pages 11-14) show the step-by-step installation of the handle, lance, hose, and water connection.

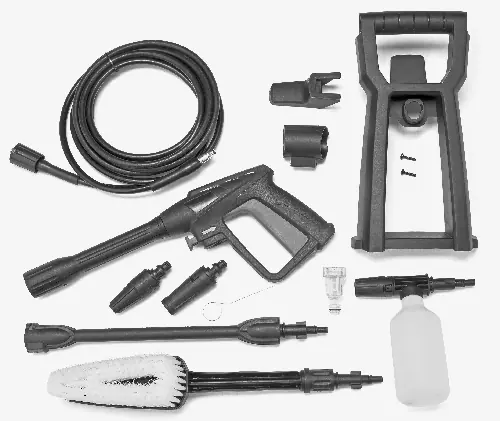

- The parts list (Page 10) provides a visual reference for all included accessories and screws.
Model compatibility
- Use only recommended hoses, accessories, and couplings.
- The appliance is designed for use with neutral, biodegradable anionic detergents.
- The turbo nozzle is not adjustable and cannot be used to apply detergent.
