Installation Manual for Eastbrook Corniche Easy Clean Shower Enclosure
Comprehensive installation guide for the Eastbrook Corniche Easy Clean shower enclosure. Includes adjustment ranges, parts list, step-by-step assembly instructions, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeImportant Information
This product should only be fixed by a fully qualified installer. Before beginning the installation, ensure all parts listed are present. Silicone sealant must be applied on the outside of the screen only to ensure proper drainage and prevent leaks.
Product Overview and Adjustments
The Eastbrook Corniche Easy Clean shower enclosure is available in multiple sizes. Please verify your specific model code to determine the correct adjustment range:
- 69.0075: 960-1000mm
- 69.0077: 1160-1200mm
- 69.0078: 1360-1400mm
Parts List
The kit includes various components labeled SD1 through SD20. Ensure you have all necessary hardware, including screws (ST4 30mm, 10mm, 25mm), wall profiles, glass panels, and seals before starting the assembly.
Installation Steps
- Prepare the area with necessary tools: drill, pencil, screwdriver, hammer, tape measure, spirit level, and silicone sealant.
- Install the wall profiles (SD5, SD15) using the provided screws and wall plugs (SD10).
- Insert the glass panels into the wall profiles.
- Assemble the frame components (SD4, SD12) and secure them using screws (SD3).
- Attach the top and bottom rails (SD7, SD8) to the glass panels.
- Install the door seals (SD9) and handle (SD16).
- Secure the moving panels using the rollers and hooks (SD14, SD18).
- Adjust the frame for a perfect fit using the flex adjustment ranges (-30mm/+0mm or -10mm/+0mm).
- Finalize the installation by securing all screws (SD3, SD6, SD13) and attaching the covers (SD2, SD11, SD19, SD20).
- Apply silicone sealant to the outside of the screen only and allow 24 hours to cure before use.
Cleaning and Maintenance
To maintain the appearance and functionality of your shower enclosure:
- Clean only with warm soapy water.
- Do not use irritant detergents, alcohol, bleach, or other chemical cleaners.
- If the glass door becomes noisy during movement, apply a small quantity of lubricant to the roller wheel, slipping hook, and the track.
For technical support, contact the helpline at 01452 317890.
Practical help
Common problems
Noisy glass door movement
Apply a small quantity of lubricant to the roller wheel, slipping hook, and the track.
Water leakage
Ensure silicone sealant is applied correctly on the outside of the screen only.
Before use
- Ensure installation is performed by a fully qualified installer.
- Verify all parts (SD1-SD20) are present.
- Have necessary tools ready: drill, pencil, screwdriver, hammer, tape measure, spirit level, silicone.
- Check the adjustment range for your specific model (69.0075, 69.0077, or 69.0078).
- Allow 24 hours for silicone to cure before using the shower.
Specs in practice
- Adjustment Range
- The tolerance range for fitting the enclosure to the wall opening (e.g., 960-1000mm for model 69.0075).
Images and diagrams

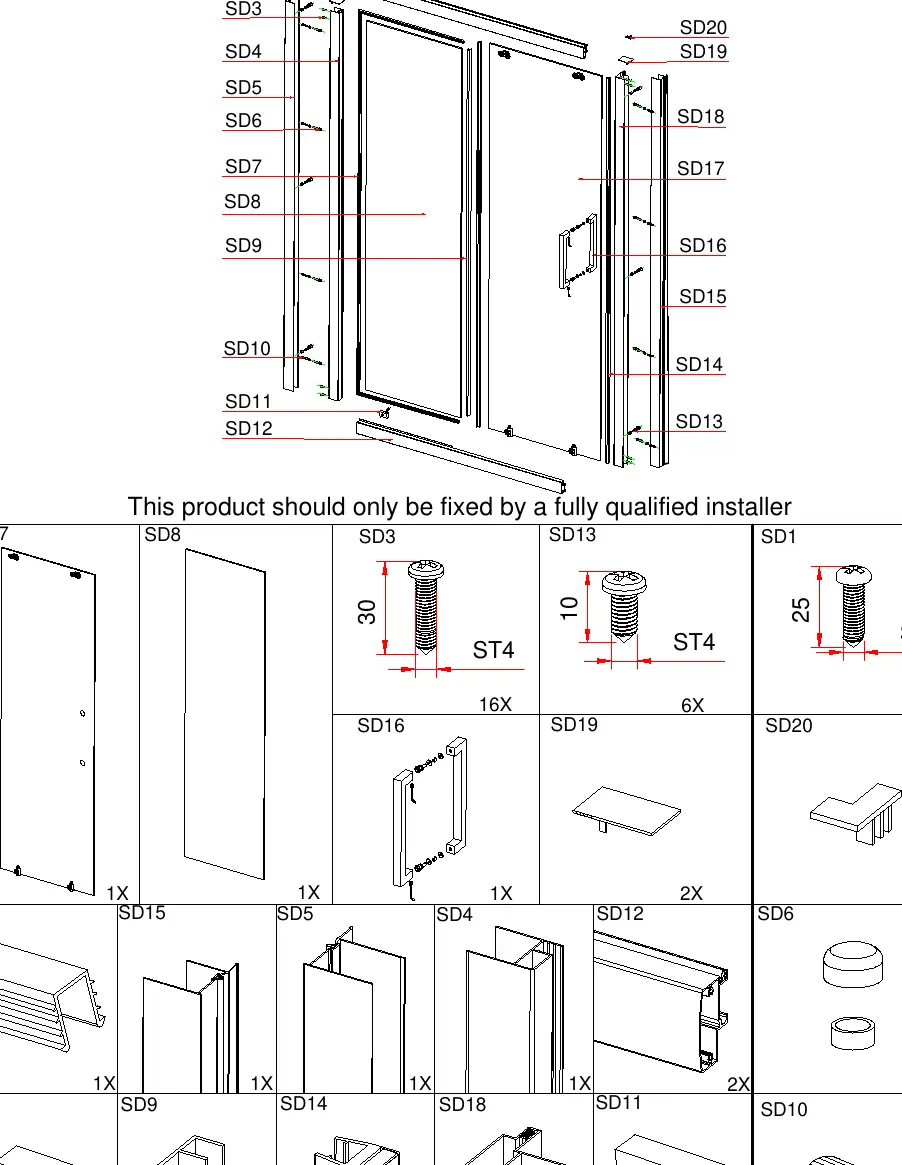

- The manual provides an exploded view of all parts (SD1-SD20) to assist in identification.

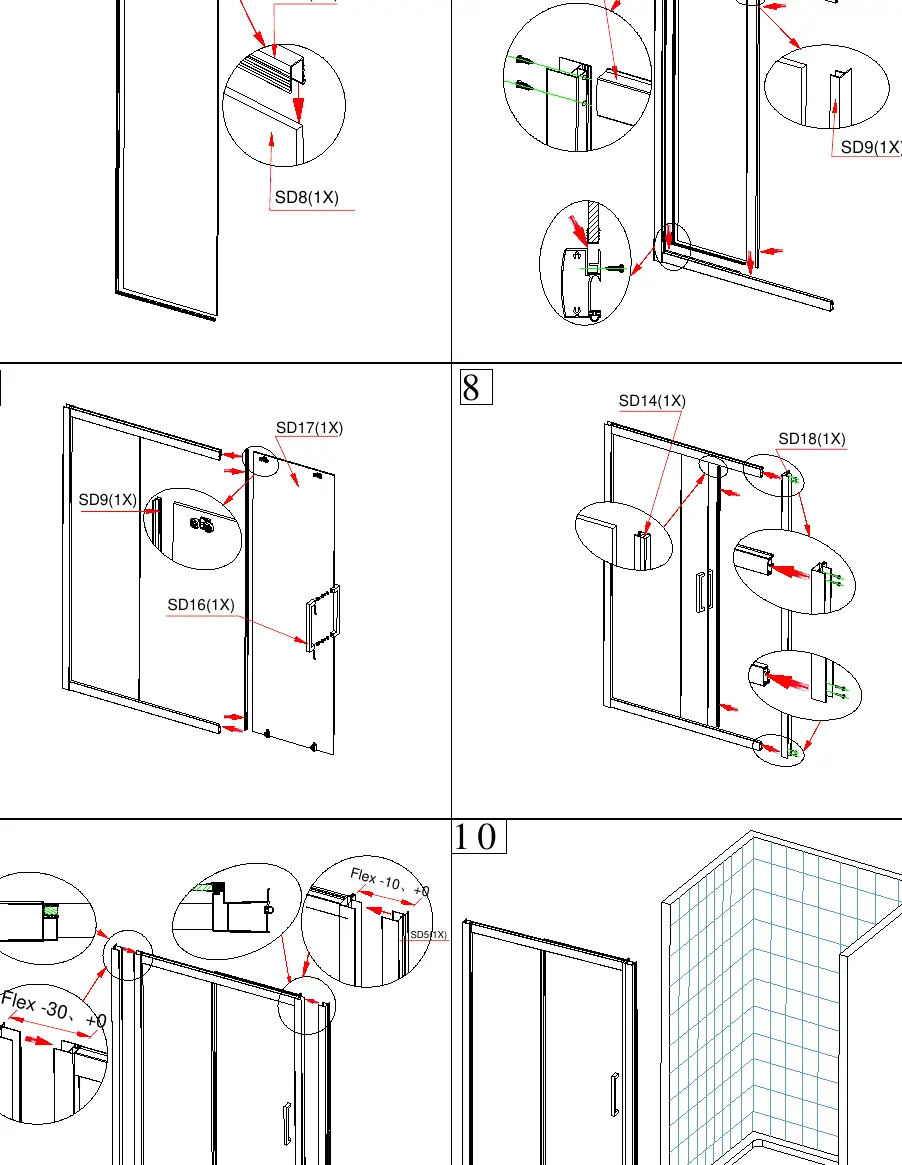

- Steps 1-15 provide a visual sequence for drilling, mounting profiles, and sealing the enclosure.
Model compatibility
- This manual covers models 69.0075, 69.0077, and 69.0078.
