Eco-Worthy 12V195W Bifacial Solar Panel
Quick guide for the Eco-Worthy 12V195W Bifacial Solar Panel. Includes technical specifications, electrical characteristics, dimensions, and warranty information.
Table of contents
Manual images
Click an image to enlargeImportant information
This document provides technical specifications and operational data for the Eco-Worthy 12V195W Bifacial Solar Panel. It includes electrical characteristics, physical dimensions, and warranty terms. For technical support, please refer to the contact information provided in this guide.
Technical specifications
The solar panel features monocrystalline cells with bifacial technology, allowing for electricity generation on both sides. Key electrical parameters under standard test conditions (STC) include:
- Rated Power: 195W
- Maximum Power Voltage (Vmp): 19.8V
- Open Circuit Voltage (Voc): 23.7V
- Short Circuit Current (Isc): 10.50A
- Maximum Power Current (Imp): 9.85A
The junction box is IP68 rated and includes blocking bypass diodes. The solar cable connectors are IP67 rated, supporting a temperature range of -40°C to +85°C.
Dimensions
The physical dimensions of the panel are 1335 x 670 x 35 mm (52.6 x 26.4 x 1.4 in). The total weight of the unit is 9.20 kg (20.48 lbs).
Warranty
The product is covered by a 1-year material and workmanship warranty, and a 25-year power output warranty.
Contact
For technical assistance, you can contact Eco-Worthy via the following channels:
- US: 1-866-939-8222
- UK: +44 20 7570 0328
- DE: +496931090113
- Email: [email protected]
- Website: www.eco-worthy.com
Official resources from the manual
Manufacturer information
ECO-WORTHY
Practical help
Common problems
Technical issues or troubleshooting
If you cannot find a solution in the manual, contact Eco-Worthy support via phone or email.
Before use
- Inspect the panel for physical damage upon receipt.
- Verify compatibility with your charge controller and battery system.
- Ensure proper cable connections using the provided 12AWG cables.
- Check environmental conditions to ensure they are within the operating temperature range (-40°C to +80°C).
Images and diagrams
- I-V Curves illustrate the panel's performance (current vs. voltage) at different temperatures and irradiance levels.

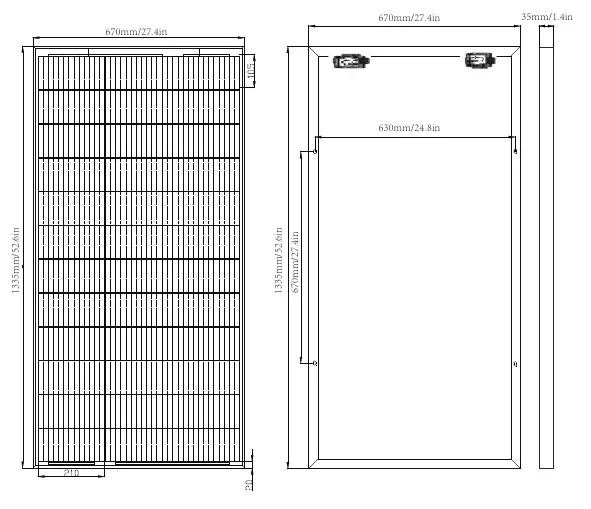

- Dimensions diagram provides the physical layout, mounting hole positions, and overall size of the panel.
Model compatibility
- Compatible with 12V solar power systems.
- Junction box is IP68 rated for dust and water resistance.
- Connectors are IP67 rated.
