Elgato Wall Mount User Manual

Quick Guide

This guide provides essential information for the Elgato Wall Mount. Before installation, ensure you have selected appropriate mounting hardware (screws and anchors) suitable for your specific wall type (e.g., drywall, concrete, or wood) to ensure a secure fit.

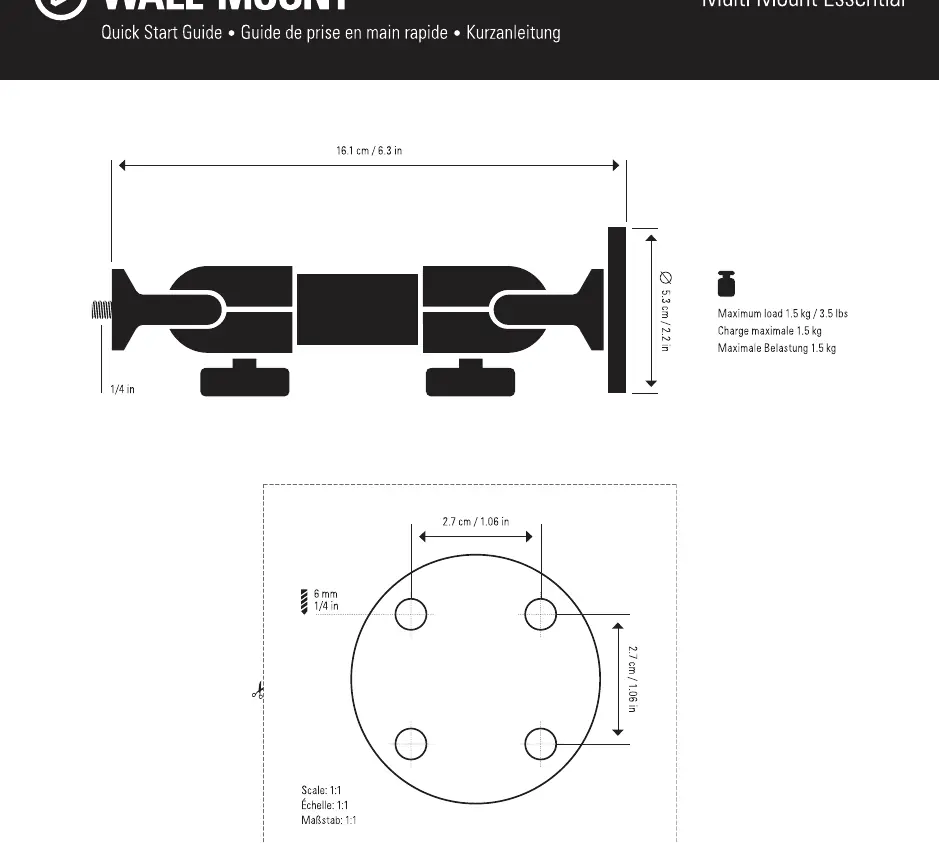

Product Specifications

The Wall Mount is designed for camera equipment and accessories. Key specifications include:

• Maximum Load Capacity: 1.5 kg (3.5 lbs). Do not exceed this weight to prevent damage or injury.
• Mounting Screw: 1/4 inch standard thread.
• Base Diameter: 5.3 cm (2.2 in).
• Mounting Hole Spacing: 6 mm (1/4 in) diameter holes.

Installation and Safety

Proper installation is critical for the safety of your equipment. Follow these guidelines:

• Wall Conditions: Always select mounting materials appropriate for your wall surface.
• Placement: Avoid exposing the product to direct sunlight for extended periods.
• Safety: Keep the product away from children.
• Usage: Do not use the Wall Mount for applications other than those specified in this guide.

Maintenance

To keep the Wall Mount in good condition:

• Clean the product with a soft cloth moistened with a little water and mild detergent.
• Do not use benzene, thinner, or other volatile agents, as these can cause permanent damage to the finish.
