Installation Manual for Elk Home 14427/2 Vanity Lamp
Installation guide for the Elk Home 14427/2 2-Light Vanity Lamp. Includes step-by-step instructions for wiring, mounting the fixture, and installing bulbs and shades.
Quick answers from the manual
Quick answer
- This document is the installation manual for the Elk Home 14427/2 2-Light Vanity Lamp, detailing wiring, mounting, and shade assembly procedures. p. 1, 2
Key actions
- Disconnect power at the main fuse box before installation. p. 1
- Connect ground, lead (black), and neutral (white) wires using provided connectors. p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | E26 Edison | Compatible bulb base type. | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation and Wiring p. 1
- Wiring and Assembly p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for installing the Elk Home 14427/2 2-Light Vanity Lamp. Important: Always disconnect power at the main fuse box before beginning installation. If you are not familiar with electrical code requirements, installation by a certified electrician is recommended.
Installation Preparation
Before starting, remove all parts and packages from the box. Ensure all components are present. You will need to strip 3/4 inch of insulation from the ends of the fixture wires.
Wiring Instructions
Proper wiring is essential for safety. Follow these steps:
- Ground Wire: Loosen the ground screw on the mounting bracket. Wrap the house ground wire (copper) around the screw. Twist the fixture ground wire and house ground wire together, secure with a wire connector, and tighten.
- Lead and Neutral Wires: Connect the house lead wire (black) to the fixture lead wire using a wire connector. Connect the house neutral wire (white) to the fixture neutral wire using a wire connector.
- Securing Connections: Ensure all wire connectors are tightened completely. Wrap electrical tape (not included) around wire connectors and wires to ensure they are securely fastened. Carefully push all wires into the junction box.
Fixture Assembly

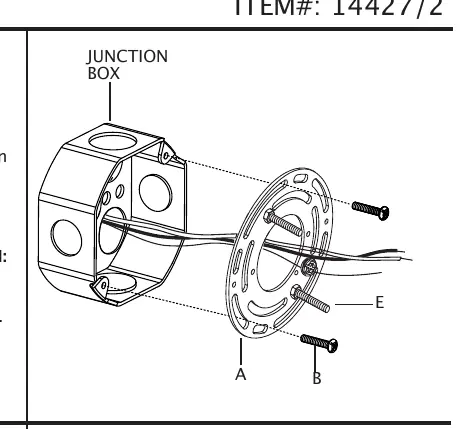

- Position the mounting bracket so the threaded ends of the fixture mounting screws are facing out.
- Align the bracket with the junction box and secure it using the junction box screws.
- Place the backplate over the mounting bracket and secure it with the threaded caps. Do not overtighten.
Bulb and Shade Installation
The fixture uses E26 Edison-type bulbs (not included). Verify the correct bulb wattage marked on the socket and do not exceed the maximum wattage.
To install the shades:
- Raise the shade up to the fixture and pass the hole in the top of the shade over the bulb.
- Fit the top of the shade inside the socket cup.
- Thread the thumbscrews into the holes in the edge of the socket cup. Do not fully tighten until all thumbscrews are installed, then tighten them equally to secure the shade.
Practical help
Common problems
Wires pinched between wall and bracket
Ensure house wires are pulled completely through the hole in the mounting bracket before securing.
Shade is loose or uneven
Ensure all thumbscrews are installed and tightened equally to secure the shade in place.
Before use
- Disconnect power at the main fuse box
- Verify bulb wattage compatibility (E26 Edison type)
- Strip 3/4 inch of insulation from fixture wires
- Ensure all parts are present before assembly
Show more Show less
Images and diagrams
- Wiring diagram shows connections for ground, lead, and neutral wires.
- Assembly diagram shows the sequence of mounting bracket, backplate, and shade installation.
Model compatibility
- Intended for installation in accordance with the National Electrical Code (NEC).
