Installation Manual for Elk Home 18681/2 Vanity Light
A comprehensive installation guide for the Elk Home 18681/2 vanity light. Includes step-by-step instructions for mounting, wiring, and assembling the fixture, along with safety warnings and bulb requirements.
Quick answers from the manual
Quick answer
- This manual provides instructions for installing the Elk Home 18681/2 vanity light, including mounting the bracket, wiring connections, and installing shades and bulbs. p. 1, 2
Key actions
- Mounting the bracket p. 1
- Connecting wires p. 1, 2
- Installing shades and bulbs p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | E26 Edison | Recommended bulb base type. | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Instructions (English) p. 1, 2
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
WARNING: Always disconnect power at the main fuse box before beginning installation. This fixture is intended for installation in accordance with the National Electrical Code (NEC) and all local code specifications. If you are not familiar with these requirements, installation by a certified electrician is recommended.
Installation Steps
- Preparation: Carefully pull house wires out of the junction box so they are easily accessible.
- Mounting Bracket: Position the mounting bracket (A) so the ground screw head faces outward. Ensure the tabs are at the top and bottom. Pull house wires through the center hole of the bracket. Align the bracket with the junction box holes and secure it using the junction box screws (B). Ensure the bracket is level and wires are not pinched.
- Grounding: Strip 3/4 inch of insulation from the fixture wires. Loosen the ground screw on the mounting bracket. Wrap the house ground wire (copper) around the screw, then twist it together with the fixture ground wire. Secure with a wire nut (C).
- Wiring: Connect the house lead wire (black) to the fixture lead wire using a wire nut (C). Connect the house neutral wire (white) to the fixture neutral wire using a wire nut (C). Wrap wire nuts with electrical tape (not included) to ensure they are secure. Carefully push all wires into the junction box.
- Backplate Installation: Place the backplate (D) over the mounting bracket (A). Align the holes in the backplate with the tabs on the mounting bracket. Secure the backplate using the fixture mounting screws (E).
- Shade and Bulb Installation: Raise the shade (K) to the fixture, passing the hole over the socket. Secure it in place using the socket ring (L). Repeat for all shades. Install recommended E26 Edison bulbs (not included). Verify the correct bulb wattage on the socket and do not exceed the maximum limit.
Wiring Guide
Refer to the following connections for your supply wires:
- Black Lead Supply Wire: Connect to black wire, parallel cord (round/smooth), or insulated wire (other than green) with copper conductor.
- White Neutral Supply Wire: Connect to white wire, parallel cord (square/ridged), or insulated wire (other than green) with silver conductor.
- Ground Supply Wire: Connect to bare copper, bare silver, or green insulated wire.
Practical help
Common problems
Fixture is not level
Ensure the mounting bracket is properly aligned and level with the junction box before tightening the screws.
Wires are pinched
Ensure all house wires are pulled completely through the center hole of the mounting bracket before securing the bracket to the wall.
Before use
- Disconnect power at the main fuse box
- Verify all parts are present in the box
- Ensure you have E26 Edison bulbs (not included)
- Have electrical tape ready for securing wire nuts
Show more Show less
Images and diagrams

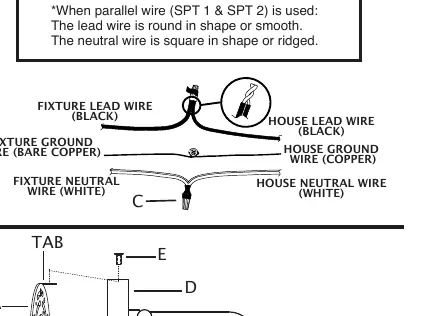

- The wiring diagram illustrates how to connect the house ground, lead, and neutral wires to the corresponding fixture wires using wire nuts.
- The mounting diagram shows the orientation of the mounting bracket (A) with tabs facing outward.
Model compatibility
- Intended for installation per National Electrical Code (NEC) and local codes.
- Requires E26 Edison bulbs.
