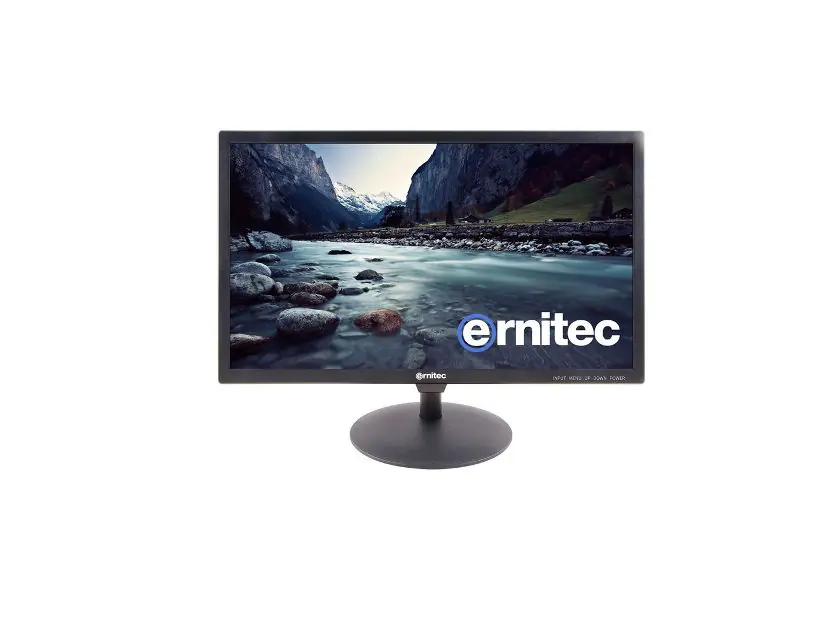

User Manual for Ernitec 0070-24224-AC HDMI/VGA/BNC Monitor

Quick guide from the manual

This monitor is designed for professional use with multiple input options including HDMI, VGA, and BNC. To get started, ensure the power cable is connected to a dedicated circuit and the input source is selected using the INPUT button on the front panel or remote control. If you encounter a 'No Signal' message, verify that your source device is on and the correct input is selected.

Safety instructions

• Do not expose the apparatus to rain or moisture to reduce the risk of fire or electric shock.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• Unplug the monitor during lightning storms or when unused for long periods.
• Protect the power cord from being walked on or pinched.
• Refer all servicing to qualified service personnel.

Connections

The monitor supports various input types. Ensure all cables are securely connected:

• Power: Connect the DC12V power input.
• HDMI/VGA: Connect your PC or video source to the respective ports.
• BNC: Use BNC1/BNC2 inputs for processor connections. BNC output is available for daisy-chaining to other monitors.
• Audio: Use the Audio In and Audio Out ports for sound connectivity.

Remote control

The remote control allows for full operation of the monitor. Key functions include:

• POWER: Switch the monitor between standby and active modes.
• MUTE: Toggle sound on/off.
• INPUT: Cycle through available input sources (VGA, BNC1, BNC2, HDMI, YPbPr).
• MENU: Access the OSD settings.
• Navigation: Use the arrow keys to navigate menus and adjust settings.

Basic OSD setup

The On-Screen Display (OSD) menu allows you to customize your viewing experience:

• Picture: Adjust Contrast, Brightness, Color, Tint, Sharpness, Color Temp, Aspect Ratio, and Picture Mode.
• Sound: Adjust Bass, Treble, Balance, Sound Mode, and Auto Volume.
• Option/Function: Configure OSD Language, OSD Duration, Transparency, and perform Software Updates via USB.

Maintenance

Regular cleaning helps maintain performance:

• Cleaning the screen: Use a soft cloth dampened with a mixture of lukewarm water and a mild fabric softener or dishwashing detergent. Wring the cloth until almost dry before wiping. Allow the screen to air-dry completely before turning the monitor back on.
• Cleaning the cabinet: Wipe the cabinet with a soft, dry, lint-free cloth.

Troubleshooting

If you experience issues, perform these checks:

• No sound: Check volume levels, ensure the device is not muted, and verify audio cable connections.
• No signal: Check if the signal cable is connected, verify the input source, and check the resolution/frequency settings of the source device.
• Picture unstable: Check video cables and ensure the video card is properly installed.
• Remote not working: Check for obstructions, ensure batteries are installed with correct polarity, and replace batteries if necessary.
