User Manual for ESAB Renegade VOLT ES 200i Welding Machine
Comprehensive user manual for the ESAB Renegade VOLT ES 200i welding machine. Includes installation, operation, maintenance, troubleshooting, and technical specifications for mains, battery, and hybrid modes.
Quick answers from the manual
Quick answer
- The ESAB Renegade VOLT ES 200i is an inverter-based welding power source capable of operating in Mains Mode, Battery Mode, or AMP+ Hybrid Mode. It supports MMA/SMAW/Stick and TIG/GTAW welding processes. p. 14
Key actions
- Installation and Setup p. 21, 22, 23, 24
- Operation p. 27, 28, 29, 30
- Maintenance p. 47, 48, 49, 50
First start
- Install batteries (if using battery mode), connect cables, turn on mains switch (if applicable), and press the ON/OFF membrane switch. p. 23, 29, 30
Problems and fixes
No arc
Check power supply, display status, cable connections, and fuses.
p. 52
Thermal protection trips
Check duty cycle, ensure air inlets/outlets are not clogged, and clean inside the unit.
p. 52Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| 206.10 | Temperature fault (power source too high) | Wait for the unit to cool down. | p. 53 |
| 906.07/08 | Battery Temperature warning/error | Remove battery and allow to cool. | p. 53 |
| 937.01/02/05/06/07 | Battery voltage/connection errors | Remove batteries and charge immediately or reconnect properly. | p. 53, 54 |
Maintenance and reset
- The unit automatically resets when normal operating temperature is achieved. p. 31
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Mains Mode | 120V/230V | Outlet voltage specifications. | p. 16 |
| Battery Mode | 80V | Outlet voltage specifications. | p. 17 |
| Weight | 24.5 kg (System) | Total system weight. | p. 17 |
Where to find it in the PDF
- Installation p. 21, 22, 23, 24
- Operation p. 27, 28, 29, 30
- User Interface p. 32, 33, 34, 35
- Maintenance p. 47, 48, 49, 50
- Troubleshooting p. 52
- Error Codes p. 53, 54
Table of contents

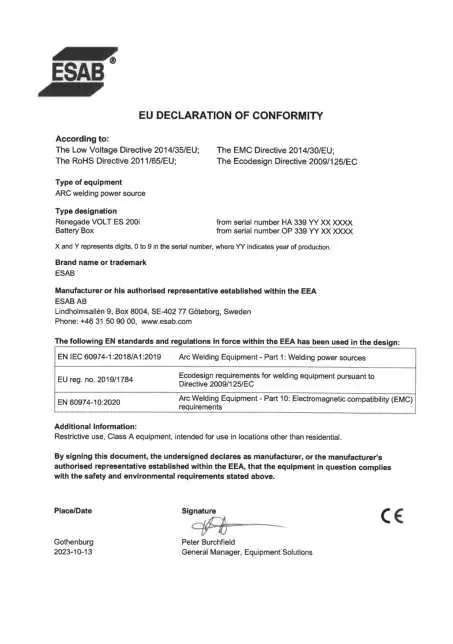

Manual images
Click an image to enlargeQuick guide from the manual
The ESAB Renegade VOLT ES 200i is an inverter-based welding power source that supports three operating modes: Mains Mode, Battery Mode, and AMP+ Hybrid Mode. This manual provides essential instructions for safe operation, installation, and maintenance.
- Mains Mode: Operates using 120V or 230V AC power.
- Battery Mode: Operates using 4 DeWALT FLEXVOLT batteries.
- AMP+ Hybrid Mode: Combines mains and battery power for enhanced performance.
Safety
Always read and understand the safety instructions before operating the equipment. Key precautions include:
- Ensure the return cable is connected securely.
- Wear recommended personal safety equipment (safety glasses, flame-proof clothing, gloves).
- Do not touch live electrical parts or electrodes with bare skin or wet clothing.
- Keep the working area free from drafts and unauthorized persons.
- Be aware of fire hazards from sparks and hot surfaces.
Installation
Installation must be carried out by a professional. Ensure the power source and battery box are positioned to allow unobstructed airflow for cooling. Secure the equipment, especially on uneven ground.
- Connecting Battery Box: Follow the specific mounting kit instructions to attach the battery box to the power source.
- Battery Installation: Ensure the mains switch is OFF before installing or removing batteries. Align batteries with slots and slide them in until firmly seated.
- Shoulder Strap: Install using the provided retention pins and secure with the top handle cover screws.
- Mains Supply: Ensure the supply voltage matches the requirements (120V or 230V). Use the recommended fuse sizes and cable areas specified in the technical data.
Operation
The unit features a user interface with a display, pushbutton encoder, and back button for navigation. To turn the unit on, install batteries (if applicable), connect to mains (if applicable), and press the ON/OFF membrane switch.
- Welding Modes: Supports MMA/SMAW/Stick and TIG/GTAW welding.
- AMP+ Hybrid Mode: Allows for circuit breaker selection to manage power draw.
- Jobs: Save and recall specific welding parameters.
- Hot Start & Arc Force: Adjustable settings to optimize arc initiation and stability.
Maintenance
Regular maintenance is crucial for safe operation. Disconnect mains supply before cleaning. Clean the power source and battery box using dry compressed air (4 bar pressure). Check cables and terminals every 3 months.
Troubleshooting
Before contacting a service technician, perform basic checks: verify power supply, cable connections, and ensure the thermal protection has not tripped. Refer to the error codes section for specific fault descriptions and actions.
Manufacturer information
ESAB
Practical help
Common problems
No arc
Check that the electrical power supply switch is turned on, the display is active, and welding/return cables are correctly connected.
Thermal protection trips frequently
Ensure the recommended duty cycle has not been exceeded, air inlets/outlets are not clogged, and clean inside the power source.
Battery not charging or working
Check battery status on the display, ensure correct battery capacity (6/9/12AH) is selected, and check for high battery temperature.
Before use
- Ensure all cables are connected securely.
- Check that the torch is clean and undamaged.
- Verify battery charge status.
- Ensure proper ventilation for the unit.
- Check that the correct welding process is selected.
Specs in practice
- Battery Mode
- Operation using 4 DeWALT batteries.
- AMP+ Hybrid Mode
- Combined operation using both mains and battery power.
Images and diagrams

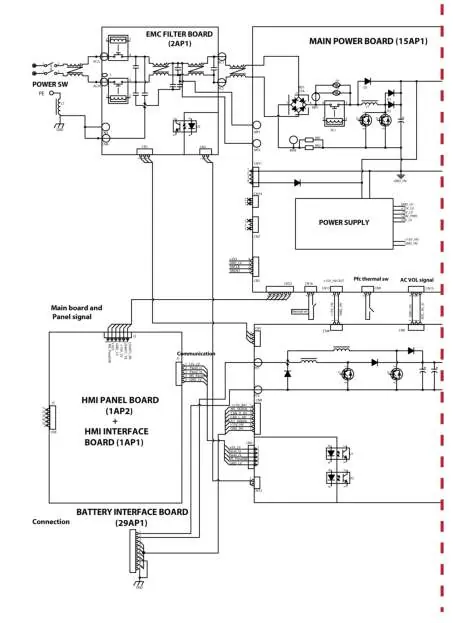

- Wiring diagram for power source and battery box.
- Control panel layout and navigation buttons.

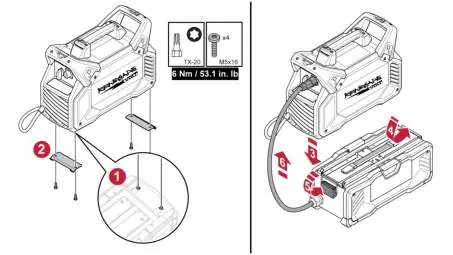

- Battery installation and removal steps.
- Shoulder strap installation.
Model compatibility
- Compatible with DeWALT FLEXVOLT 6AH, 9AH, and 12AH batteries.
- Not compatible with 15AH batteries.
- Requires specific generator ratings (4kW for 120V, 7kW for 230V).
