Eurofase 39316 Santoro LED 20-Inch Bath Bar Wall Light Installation Guide
Installation guide for the Eurofase 39316 Santoro LED 20-Inch Bath Bar Wall Light. Includes wiring diagrams, safety precautions, and electrical specifications.
Quick answers from the manual
Quick answer
- The Eurofase 39316 is a 20-inch LED bath bar wall light. Installation requires a qualified electrician, turning off the power, and connecting wires according to the provided diagram (Black to Black, White to White, Ground to Ground). p. 1, 2
Key actions
- Disconnect power at the circuit breaker or fuse box before starting. p. 1
- Connect wires: Black to Black (L), White to White (N), and Green/Bare to Green/Bare (G). p. 2
Problems and fixes
No ground wire in junction box
Attach the bare copper fixture wire to the green ground screw on the crossbar.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V~ | Input voltage | p. 2 |
| Frequency | 60Hz | Input frequency | p. 2 |
| Max Wattage | 20W | Maximum power consumption | p. 2 |
Where to find it in the PDF
- Safety and Tools p. 1
- Wiring and Assembly p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Eurofase 39316 is a 20-inch LED bath bar wall light. Installation should be performed by a qualified electrician. Before starting, ensure the power is disconnected at the circuit breaker or fuse box. The installation process involves mounting the fixture to the junction box and making the necessary electrical connections according to the provided wiring diagram.
Safety information
- Always disconnect power at the circuit breaker or by removing the fuse before beginning installation.
- All electrical connections must comply with local and National Electrical Code or Canadian Electrical Code standards.
- Use only CSA or UL certified wire connectors suitable for the gauge, type, and number of conductors.
- Ensure the junction box is properly grounded. If the junction box lacks a ground wire, attach the bare copper fixture wire to the green ground screw on the crossbar.
Tools required
The following tools are required for assembly (not included):
- Flathead screwdriver
- Phillips screwdriver
- Pliers
- Electrical tape
- Wire cutters
- Wire strippers
- Ladder
Installation and wiring
Follow the numerical order provided in the assembly diagram to install the fixture:
- Ensure the power is turned off.
- Prepare the junction box and ensure the mounting hardware is ready.
- Connect the wires using the provided wire connectors (H):
- Connect the Black (L) wire from the junction box to the Black (L) wire from the fixture.
- Connect the White (N) wire from the junction box to the White (N) wire from the fixture.
- Connect the Green/Bare copper (G) wire from the junction box to the Green/Bare copper wire from the fixture.
- Secure the fixture to the junction box using the outlet box screws.
Technical specifications
- Voltage: 120V~, 60Hz
- Power: 1 x 20W Max LED
- Features: Dimmable LED included
Practical help
Common problems
Fixture does not light up after installation
Verify that the circuit breaker is on and that all wire connections (Black to Black, White to White, Ground to Ground) are secure and properly connected.
Junction box has no ground wire
Attach the bare copper fixture wire directly to the green ground screw located on the crossbar.
Before use
- Turn off power at the circuit breaker or fuse box
- Verify you have all required tools (screwdrivers, pliers, wire cutters)
- Ensure wire connectors are UL or CSA certified
- Confirm the junction box is compatible with the fixture mounting hardware
Show more Show less
Images and diagrams
- The wiring diagram shows the correct pairing of wires: Black (L) to Black (L), White (N) to White (N), and Green/Bare (G) to Green/Bare (G).

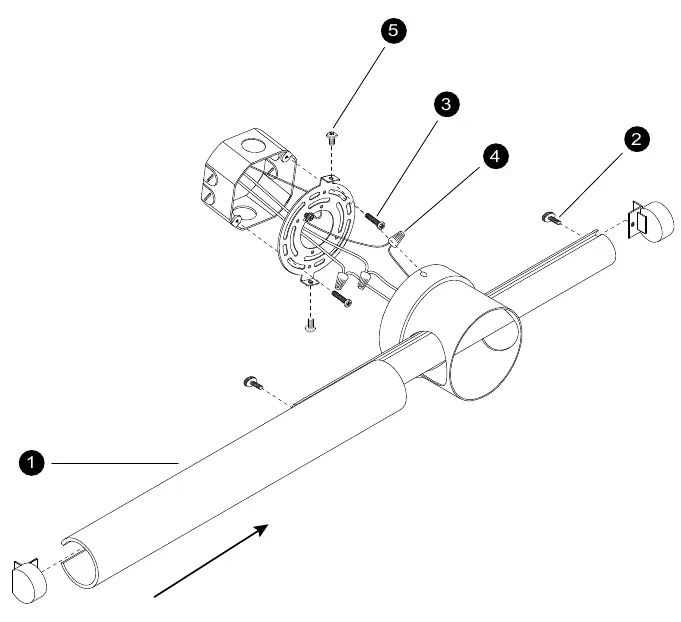

- The assembly diagram illustrates the sequence of attaching the fixture to the junction box using the provided screws.
