User Manual for Euromaid 126L Bar Fridge
Quick guide for the Euromaid 126L Bar Fridge (models EBF126W, EBF126BK, EBF126S). Includes installation, door reversal, temperature settings, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual provides installation, operation, maintenance, and troubleshooting instructions for the Euromaid 126L Bar Fridge (models EBF126W, EBF126BK, EBF126S). p. 1, 19
Key actions
- Reverse the door p. 10, 11, 12
- Defrost the freezer p. 17
- Replace the lamp p. 17
First start
- Wait at least 4 hours before connecting the appliance to allow oil to flow back in the compressor. p. 7
- Wash the interior and all internal accessories with lukewarm water and some neutral soap. p. 15
- Let the appliance run at least 2 hours on higher settings before putting food in. p. 15
Show 3 more answers Show less
Problems and fixes
Appliance does not work
Check if thermostat is at 0, check mains plug, check fuse, check socket.
p. 18
The food is too warm
Adjust temperature, ensure door is closed, check for heat sources.
p. 18
Unusual noises
Level the unit, move away from walls or objects.
p. 18Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Gross Volume | 126L | Total capacity | p. 19 |
| Storage Volume | 124L | Usable capacity | p. 19 |
| Evaporator compartment volume | 15L | Freezer section capacity | p. 19 |
| Voltage | 220-240V ~50Hz | Electrical requirements | p. 19 |
| Rated current | 0.55A | Electrical current | p. 19 |
| Climate class | T | Operating temperature range | p. 19 |
| Refrigerant | R600a (29g) | Cooling agent | p. 19 |
| Dimensions | W495 x D560 x H838 mm | Physical size | p. 13, 19 |
Where to find it in the PDF
- Safety Information p. 4, 5, 6, 7
- Overview p. 9
- Reverse Door p. 10, 11, 12
- Installation p. 13, 14
- Daily Use p. 15, 16, 17
- Troubleshooting p. 18
- Product Information p. 19
- Warranty p. 21, 22, 23
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe installation, operation, and maintenance of the Euromaid 126L Bar Fridge. Before using the appliance, ensure it is installed in a well-ventilated area and that you have read all safety warnings, particularly regarding the flammable R600a refrigerant.
Overview
The fridge consists of the following main components:
- Door Hinge
- Freezer Compartment
- Thermostat Control
- Adjustable Shelf
- Small Glass Shelf
- Levelling Feet
- Door Bins (Upper, Middle, Lower)
Installation
Proper installation is critical for performance and safety:
- Space Requirements: Maintain at least 40mm gap at the rear and 100mm gap above for overhead cabinets. Ensure at least 50mm gap on both sides.
- Positioning: Install away from heat sources like radiators or direct sunlight.
- Leveling: Adjust the two front leveling feet to ensure the unit is stable and the magnetic seal aligns correctly.
- Initial Setup: Wait at least four hours after moving the appliance before connecting it to the power supply to allow the compressor oil to settle.
Reversing the Door
The door can be reversed to open from the opposite side. This process requires a Phillips screwdriver and a flat-bladed screwdriver. It is recommended that two people handle the unit during this process to avoid damage. Ensure the unit is unplugged and empty before starting.
Daily Use
Temperature Setting: The internal temperature is controlled by the thermostat knob. Settings range from 1 to 7 (7 being the coldest), while 0 turns the appliance off.
Cleaning: Before cleaning, switch off and disconnect the appliance. Use lukewarm water and mild soap. Do not use abrasive powders, metal objects, or steam cleaners. Regularly check and clean the drain for defrosted water to prevent blockages.
Defrosting: If frost builds up, remove the plug, store food in a cool place, and leave the door open. Use a plastic scraper if necessary; never use sharp metal tools.
Troubleshooting
If you encounter issues, check the following before calling service:
- Appliance does not work: Check if the plug is loose, the fuse is blown, or the thermostat is set to 0.
- Food is too warm: Check the temperature setting, ensure the door is not left open, and verify the unit is not near a heat source.
- Unusual noises: Ensure the unit is level and not touching walls or other objects.
Product Information
Technical Specifications:
- Gross Volume: 126L
- Storage Volume: 124L
- Evaporator Compartment: 15L
- Voltage: 220-240V ~50Hz
- Rated Current: 0.55A
- Climate Class: T
- Refrigerant: R600a (29g)
Practical help
Common problems
Appliance does not work
Check if the mains plug is inserted, the fuse is intact, or if the thermostat is set to '0'.
Food is too warm
Adjust the temperature setting to a colder level, ensure the door is not left open, and check that the unit is not placed near a heat source.
Unusual noises
Ensure the unit is level using the feet and that it is not touching the wall or other objects.
Before use
- Wait at least 4 hours after installation before plugging in to allow compressor oil to settle.
- Ensure 40mm clearance at the rear and 100mm above the unit.
- Clean the interior with lukewarm water and mild soap.
- Check that the unit is level to ensure proper door seal alignment.
- Verify the power supply matches the 220-240V requirement.
Show more Show less
Specs in practice
- Climate Class T
- Designed for tropical environments with ambient temperatures up to +43°C.
- R600a Refrigerant
- Flammable gas; handle with care and avoid damaging the refrigerant circuit.
- Thermostat 0
- Setting the knob to 0 turns the cooling system off.
Images and diagrams
- The overview diagram identifies the door hinge, thermostat, shelves, and door bins.

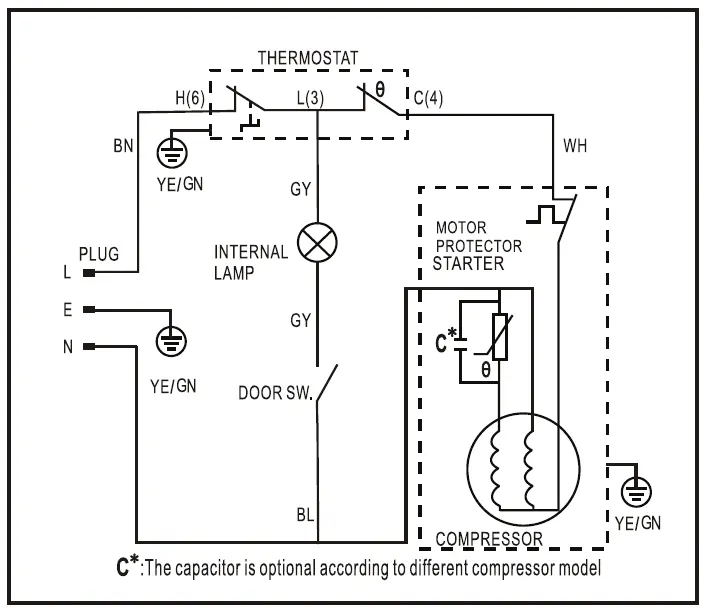

- The wiring diagram illustrates the connections for the thermostat, internal lamp, door switch, and compressor.
Model compatibility
- Designed for domestic use only.
- Not suitable for outdoor or alfresco areas.
- Must be installed by a qualified person if electrical work is required.
