The Fieldmann FZR 2018-E is an electric lawnmower designed for home garden use. This manual provides essential instructions for safe assembly, operation, and maintenance. Always ensure the power cable is undamaged before use and keep it away from the cutting blade. Never mow wet grass, as it reduces performance and clogs the mower.
Description of parts
- Switch button and lever
- Handle (upper and lower parts)
- Grass catcher with indicator
- Wheels (front and rear)
- Power cable
Assembly
The mower is delivered disassembled.
- Switch box: Attach the switch box to the upper handle part using the provided screws.
- Handle: Assemble the upper and lower handle parts. Secure the handle to the mower body and attach the cable using plastic clips.
- Grass catcher: Assemble the upper and lower parts of the catcher. Attach the handle.
- Wheels: Install wheels onto the axles, secure with washers and cotter pins, and attach wheel covers.
Operation
Height adjustment
The cutting height can be set to 3 positions (20mm, 40mm, 56mm) by adjusting the front and rear wheels. Ensure all four wheels are set to the same height.
Starting and stopping
To start, press and hold the safety button, then pull the switch lever towards the handle. To stop, release the switch lever. Do not start the mower in tall grass.
Mowing
Always mow in a direction away from the power cable to prevent accidental cutting. Mow only when the grass is dry.
Maintenance
Regularly check that all nuts, bolts, and screws are tightened. Inspect the grass catcher for wear. Before any maintenance, disconnect the power supply. If the blade needs replacement, contact an authorized service center or follow the instructions to remove the blade using a 6mm hex key, ensuring the mower is turned upside down and the blade is secured against rotation.
Technical specifications
- Power: 1000 W
- Voltage: 230-240 V, 50 Hz
- Cutting width: 320 mm
- Cutting height: 20/40/56 mm (3 positions)
- Grass catcher volume: 30 L
- Weight: 8 kg
Manufacturer information
Fieldmann
Practical help
Common problems
Mower vibrates excessively
Check for loose parts or a damaged/unbalanced blade.
Poor grass collection
Check if the grass catcher is full or if the grass is too wet.
Mower will not start
Check the power connection and ensure the safety button is pressed before pulling the switch lever.
Before use
- Check the power cable for damage.
- Ensure all nuts and bolts are tightened.
- Verify the grass catcher is properly attached.
- Check the blade for damage or wear.
- Ensure the area is clear of debris.
Specs in practice
- Cutting Width
- 320 mm width of the cutting path.
- Cutting Height
- Adjustable between 20, 40, and 56 mm.
Images and diagrams

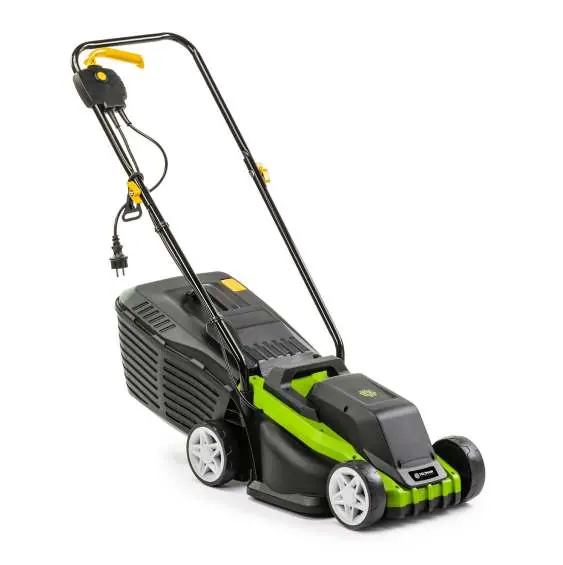

- Obr. 1: Overview of all mower components.

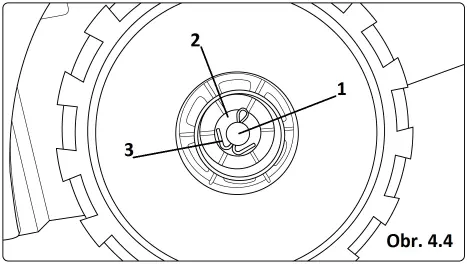

- Obr. 4.4: Detailed steps for wheel installation.
- Obr. 7: Recommended mowing pattern to avoid cutting the power cable.
Model compatibility
- Use only with 230-240V, 50Hz power supply.
- Extension cable should not exceed 30m to prevent power loss.
