The Fieldmann FDU 2003-E is a wet and dry vacuum cleaner. Before first use, ensure all parts are present, the filter is correctly installed, and the container is empty. Always turn the device off and disconnect from the power source before performing any maintenance or assembly.

Machine Description

The vacuum cleaner consists of the following main components (see Fig. 1):

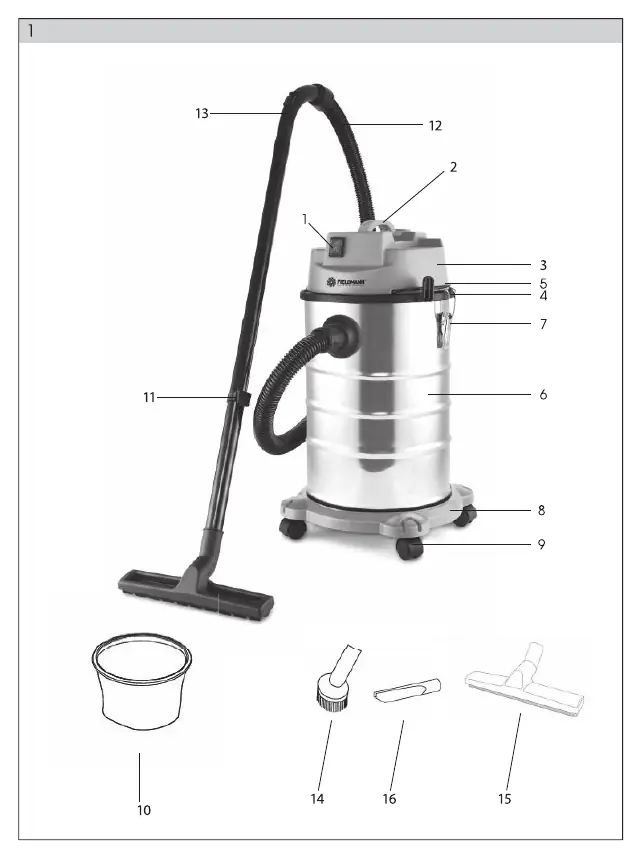

Machine parts identification (Fig 1)
Machine parts identification (Fig 1)
  • Switch (I/O)
  • Motor Top Cover
  • Collecting Container (30L)
  • Castors
  • Filter
  • Plastic Hose and Tubes
  • Nozzles (Brush, Floor, Slot)

Assembly

Follow these steps to assemble the vacuum cleaner (see Fig. 2):

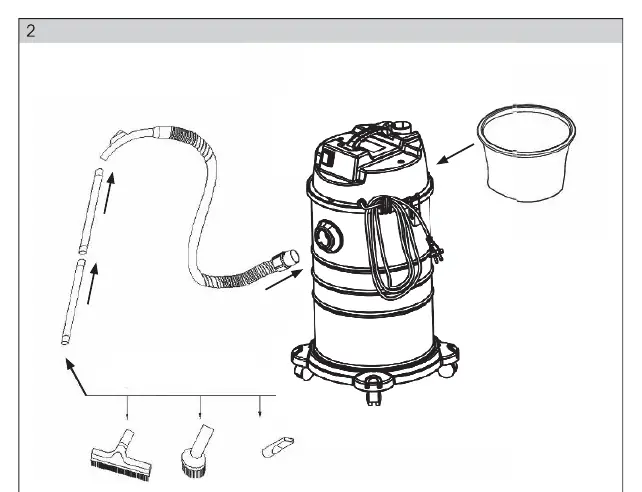

Assembly sequence (Fig 2)
Assembly sequence (Fig 2)
  1. Prepare all accessory parts.
  2. Attach the tube to the hose handle.
  3. Insert the flexible hose connector into the suction hole on the upper side of the vacuum cleaner until it clicks into place.
  4. Install the filter.
  5. Attach the wheels/castors to the base.

Operation

Turning On/Off: Use the I/O switch on the vacuum cleaner body. Position 'I' turns the machine on.

Floor nozzle (Fig 3)
Floor nozzle (Fig 3)

Suction Adjustment: Adjust suction strength using the dial on the body or the moveable flap on the hose handle.

Vacuuming Water: Attach the floor nozzle with rubber squeegees. Remove the dust bag from the container. If the container fills completely, a safety float will stop suction and motor noise will increase; empty the container immediately. After finishing, let the vacuum run for 30 seconds to clear remaining water from the hose.

Filter Maintenance

Clean the filter at least once a month or when suction force decreases. Never use the vacuum without an installed filter. To clean: disconnect from power, remove the filter, and shake it out. Do not use a dishwasher or hairdryer.

Safety Guidelines

  • Do not vacuum hot embers, burning items, or materials exceeding 40°C.
  • Do not vacuum flammable or explosive substances.
  • Always disconnect the plug when the device is unattended or during maintenance.
  • Do not use the power cord to carry the appliance or pull it from the socket.
  • Keep the appliance away from children and pets.
  • If the power cord is damaged, have it repaired by an authorized service center.

Manufacturer information

Fieldmann

Brand profile
Manufacturer website https://www.fieldmann.com

Practical help

Common problems

Suction stops and motor noise increases dramatically

The container is full. Empty the collecting container.

Reduced suction power

The filter is likely dirty. Clean the filter by shaking it out.

Vacuum cleaner tips over during water vacuuming

Have the motor inspected by a service center before further use.

Before use

  • Check that all parts listed in the scope of delivery are present.
  • Ensure the filter is properly installed.
  • Verify that the power supply voltage matches the machine label.
  • Ensure the switch is in the OFF position before plugging in.
  • Check the hose and tubes for any blockages.

Specs in practice

Metal Container
30L - The maximum capacity for collected debris or liquid.

Images and diagrams

  • Fig 1: Overview of all vacuum cleaner parts and accessories.
  • Fig 2: Assembly sequence for the hose, tubes, and nozzles.
  • Fig 3: Detail of the floor nozzle with rubber squeegees for wet vacuuming.

Model compatibility

  • Do not use carpet nozzles with metal undersides for wet vacuuming (risk of corrosion).
  • Use only accessories delivered with the product or recommended by the manufacturer.
