User Manual for Fieldmann FDU 201450-E Ash Vacuum Cleaner
Comprehensive user guide for the Fieldmann FDU 201450-E Ash Vacuum Cleaner. Includes assembly instructions, safety warnings, operating procedures, filter maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- The Fieldmann FDU 201450-E is an ash vacuum cleaner with a 50L container and 1400W motor. It is designed for dry vacuuming only. Never vacuum hot embers or materials hotter than 40°C. p. 14, 18
Key actions
- Clean the filter at least once a month or when suction is reduced. p. 17
First start
- Assemble the wheels, attach the hose to the suction hole until it clicks, and ensure the filter is installed before connecting to power. p. 16
Problems and fixes
Reduced suction or high noise
Clean or replace the filter.
p. 17Maintenance and reset
- The vacuum is equipped with a thermal fuse that turns off the motor if it overheats. It will restart automatically once cooled. p. 33
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input Power | 1400W | Power consumption | p. 18 |
| Container | 50L | Capacity | p. 18 |
Where to find it in the PDF
- Safety Instructions p. 8, 9, 10, 11
- Assembly p. 16
- Technical Data p. 18
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FDU 201450-E is an ash vacuum cleaner intended for dry vacuuming. Important: Never vacuum hot embers, burning items, or materials exceeding 40°C (104°F). Always ensure the filter is installed before operation to prevent motor damage.
Machine description
The vacuum cleaner consists of the following main components:
- Switch
- Handle
- Motor Top Cover
- Collecting Container
- Clamps
- Castors
- Filter
- Hose and Aluminum Tube
Vacuum cleaner assembly
Before assembly or disassembly, always disconnect the plug from the mains socket.
- Prepare all accessory parts.
- Attach the tube to the hose handle.
- Assemble the flexible hose and insert its connector into the suction hole on the upper side of the vacuum cleaner. Push inwards until you hear a click.
- Connect the wheels to the base.
Operating instructions
Turning on/off: Use the ON/OFF switch located on the machine.
After use: Turn off the appliance, pull the plug from the mains socket, remove the hose from the suction hole, and empty the accumulated dust from the collecting container.
Filter cleaning
We recommend cleaning the filter at least once a month, or sooner if suction force is reduced or motor noise increases.
- Always disconnect the vacuum cleaner from the power supply before cleaning the filter.
- The best cleaning method is to manually shake out the filter.
- Do not use a dishwasher to clean the filter.
- Do not use a hairdryer to dry the filter.
- Never operate the vacuum cleaner without an installed filter.
Technical data
- Voltage/Frequency: 230V/50Hz
- Input Power: 1400W
- Container Capacity: 50L
- Noise Level: 80dB(A)
- Weight: 12.5kg
Manufacturer information
Fieldmann
Practical help
Common problems
Reduced suction force or increased motor noise
The filter is likely clogged. Clean or replace the filter.
Vacuum cleaner stops during operation
The thermal fuse may have triggered due to overheating. Allow the motor to cool down before restarting.
Before use
- Ensure the filter is correctly installed.
- Check that the power cord and plug are undamaged.
- Verify that the container is empty and clean.
- Ensure the hose is securely connected.
- Check that the voltage matches the label (230V).
Specs in practice
- Metal Container
- 50L - The capacity for collected ash/dust.
- Ash Vacuum-Cleaning
- Up to 40°C - The maximum temperature of ash that can be safely vacuumed.
Images and diagrams

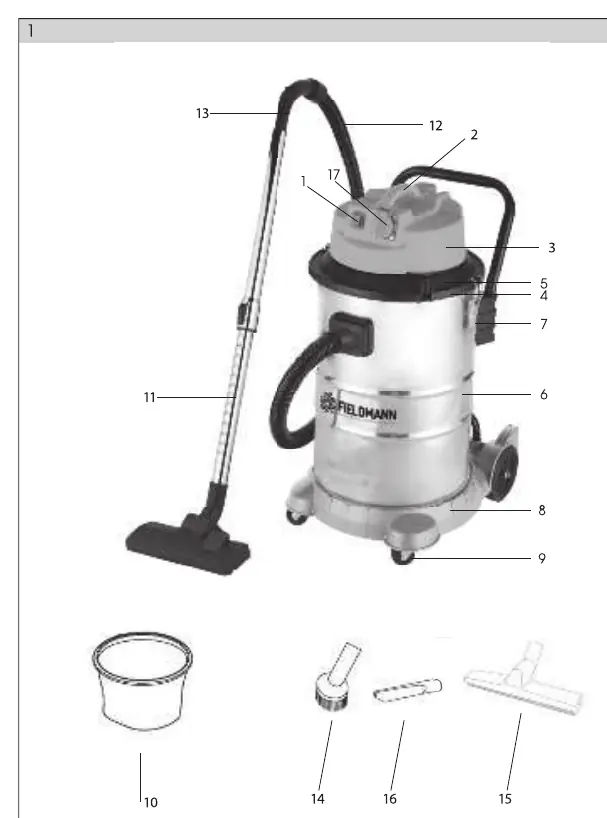

- Fig 1: Overview of the vacuum cleaner and its parts.
- Fig 2: Assembly instructions for the hose, tube, and wheels.
- Fig 3: Location of the ON/OFF switch.
- Fig 5: Steps for filter disassembly and assembly.
Model compatibility
- Intended for dry vacuuming only.
- Do not vacuum liquids or flammable substances.
