This vacuum cleaner is designed for wet and dry cleaning. Before using the device, ensure all parts are present and the filter is correctly installed. Always disconnect the power plug before assembly, disassembly, or maintenance.
Machine Description
The vacuum cleaner consists of the following main components:
- 1 – Switch
- 2 – Handle
- 3 – Motor Top Cover
- 4 – Motor Body Cover
- 5 – Power Cord
- 6 – Collecting Container
- 7 – Clamps
- 8 – Protective Guard
- 9 – Castors
- 10 – Filter
- 11 – Aluminum Tube
- 12 – Plastic Hose
- 13 – Hose Connector
- 14 – Brush Nozzle
- 15 – Floor Nozzle
- 16 – Slot Nozzle
- 17 – Power socket
Vacuum Cleaner Assembly
- Prepare all accessory parts.
- Attach the tube to the hose handle.
- Assemble the flexible hose and insert the connector into the suction hole on the upper side of the vacuum cleaner. Push until you hear a click.
- Install the filter.
- Connect the wheels.
Operating Instructions
Turning on/off: The vacuum cleaner is turned on by the switch I/0 on the body of the vacuum cleaner (position I). Position II activates the power socket, but the cleaner remains off until the connected device is turned on.
Adjusting suction strength: Suction strength can be adjusted using the dial on the product's body or the moveable flap on the hose handle.
Vacuuming water: Attach the floor nozzle with rubber squeegees and remove the dust bag from the container. If the container fills up, a safety float will stop the suction and motor noise will increase. Empty the container immediately.
Filter Cleaning
Clean the filter at least once a month, or when suction force is reduced and motor noise is higher than usual. The best cleaning method is to shake out the filter. Do not use a dishwasher or hairdryer for cleaning or drying.
Technical Data
- Voltage/Frequency: 230V/50Hz
- Input Power: 1400W
- Metal Container: 30L
- Hose Length: 2.5m
- Weight: 4kg
- Noise Level: 80dB(A)
Manufacturer information
Fieldmann
Practical help
Common problems
Reduced suction or increased motor noise
The filter is likely dirty. Disconnect from power and clean the filter by shaking it out.
Suction stops while vacuuming water
The container is full. The safety float has activated. Empty the container.
Vacuum cleaner tips over during water vacuuming
Have the motor inspected by a service center before further use.
Before use
- Unpack and check all parts against the scope of delivery list.
- Ensure the filter is installed.
- Assemble the hose and tube.
- Attach the correct nozzle for the task (floor, brush, or slot).
- Check that the power cord and plug are undamaged.
Specs in practice
- Input Power (1400W)
- The power consumption of the vacuum cleaner motor.
- Metal Container (30L)
- The capacity of the waste collection tank.
- Noise Level (80dB(A))
- The operating sound level of the device.
Images and diagrams

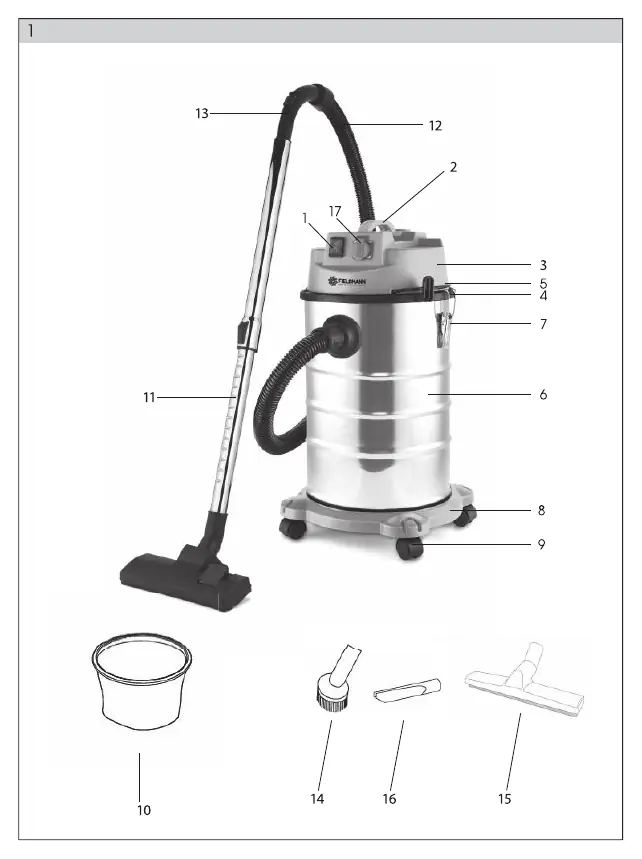

- Fig 1: Overview of all components and parts.

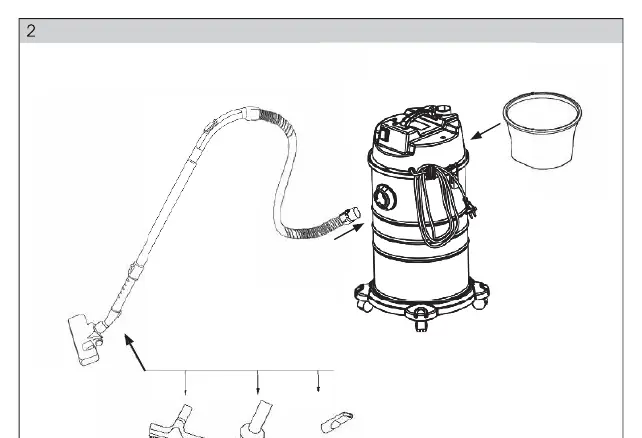

- Fig 2: Assembly instructions for the hose and accessories.
- Fig 3: Floor nozzle details with rubber squeegees for wet vacuuming.
Model compatibility
- Do not use the carpet nozzle with a metal underside for wet vacuuming (risk of corrosion).
- Do not use the vacuum cleaner as a pump for tanks, baths, or aquariums.
