User Manual for Fieldmann FZP 2005-E Electric Chain Saw
Quick guide and user manual for the Fieldmann FZP 2005-E electric chain saw. Includes assembly, chain tensioning, operation, maintenance, and safety instructions.
Quick answers from the manual
Quick answer
- The Fieldmann FZP 2005-E is an electric chain saw. This manual covers assembly, operation, maintenance, and safety procedures. p. 3
Key actions
- Installing guide bar and chain p. 10
- Tensioning the chain p. 13
- Filling oil tank p. 11
First start
- Fill the oil tank, install the guide bar and chain, check chain tension, and ensure the brake is disengaged before starting. p. 10, 11
Problems and fixes
Chain jams
Stop the saw and use a wedge to open the cut.
p. 13
Saw does not start
Disengage the brake lever.
p. 11Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power input | 2000 W | Motor power | p. 19 |
| Chain pitch | 3/8" | Chain link spacing | p. 19 |
| Oil tank capacity | 120 ml | Lubrication reservoir | p. 19 |
Where to find it in the PDF
- Parts Description p. 9
- Installation p. 10
- Technical Specifications p. 19
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FZP 2005-E is an electric chain saw designed for cutting wood. Before use, ensure the oil tank is filled with appropriate lubricant and the chain is correctly tensioned. Always wear protective gear, including a helmet, safety glasses, ear protection, and work gloves. The saw features an automatic chain brake for safety in case of kickback.
Description of the chain saw
- Power cord safety hook and fastening hole
- Rear and front handles
- Safety brake
- Chain tensioning wheel
- Sprocket cover and fastening knob
- Oil tank cap and level window
- Start/stop trigger with safety lock
Assembly and installation
Installing the guide bar and chain:
- Ensure the saw is disconnected from the power grid.
- Disengage the safety brake lever.
- Loosen the sprocket cover fastening knob and remove the cover.
- Place the chain on the drive sprocket and guide bar, ensuring the teeth direction matches the arrow markings.
- Reattach the sprocket cover and fasten it loosely.
- Use the tensioning wheel to tension the chain until it can be lifted 3-4 mm from the guide bar.
- Tighten the sprocket cover fastening knob.
Operation
Filling the oil tank: Use only oil specified for total-loss lubrication. Fill the tank before first use and check regularly.
Starting the saw: Secure the extension cord using the safety hook. Press the trigger safety lock, then press the start/stop trigger. The saw will run at maximum speed.
Maintenance and care
Sharpening the chain: Keep the chain sharp for safer and faster cutting. Use a round file and file guide set at a 30° angle. If the chain is blunt, it will produce sawdust rather than wood chips.
Guide bar maintenance: Regularly remove sawdust from the guide bar groove. Replace the guide bar if it is bent, cracked, or if the groove is worn out.
Technical specifications
- Power input: 2000 W
- Voltage/frequency: 230 V - 240 V / 50 Hz
- Chain pitch: 3/8"
- Oil tank capacity: 120 ml
- Weight: 5.5 kg
Safety
Always keep the work area tidy and well-lit. Do not use the saw in explosive environments or near flammable liquids. Always hold the saw firmly with both hands during operation. If the chain jams, stop the saw immediately and use a wedge to release it.
Manufacturer information
Fieldmann
Practical help
Common problems
Chain jams in the material
Stop the saw and knock a wooden or plastic wedge into the cut to release the chain.
Saw does not start
Check the power supply and ensure the brake lever is disengaged.
Chain is loose or slides off
Adjust the chain tension using the tensioning wheel.
Before use
- Check oil level in the tank.
- Check chain tension (should be liftable 3-4 mm from the bar).
- Check chain brake functionality.
- Ensure extension cord is suitable for outdoor use.
- Wear protective gear (helmet, glasses, ear protection, gloves).
Specs in practice
- Oil tank capacity
- 120 ml for chain lubrication.
- Cutting speed
- 13 m/s chain speed.
Images and diagrams

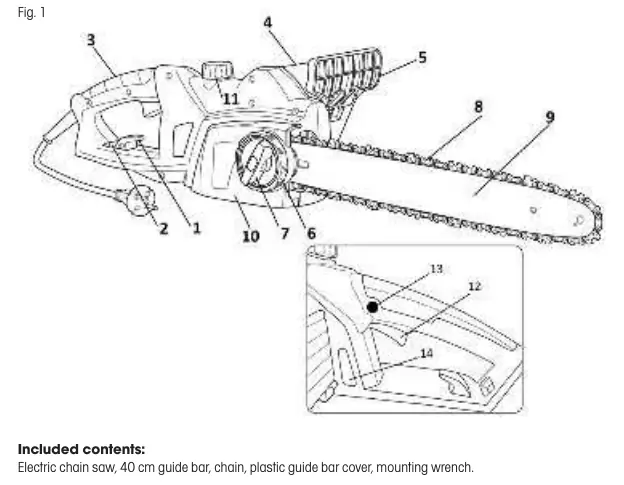

- Fig 1: Main components of the chainsaw.
- Fig 2: Installing the chain on the drive sprocket.
- Fig 3: Fastening the sprocket cover.
- Fig 4: Tensioning the chain.
Model compatibility
- Use only extension cords designed for outdoor use (min 1.5 mm2).
- Use only oil specified for total-loss lubrication.
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
