User Manual for Fieldmann FDW 2004-E High-Pressure Washer
Quick guide and operating instructions for the Fieldmann FDW 2004-E high-pressure washer. Includes assembly, startup, storage, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Fieldmann FDW 2004-E is a high-pressure washer designed for cleaning surfaces. It requires a 230V, 50Hz power supply and a dedicated 15A circuit. Always ensure the water supply is connected and the valve is fully open before starting. p. 3, 13, 20
Key actions
- Connect the high-pressure hose to the machine outlet and the garden hose to the water inlet. p. 12
- Remove the shipping plug from the outlet before first use. p. 11
First start
- Connect hoses, turn on water supply, plug into 230V outlet, unlock gun safety, squeeze trigger to bleed air, turn switch to ON, squeeze trigger to start motor. p. 12, 13, 14
Problems and fixes
Motor stops during operation
Thermal overload switch tripped. Allow to cool for 20 minutes.
p. 18Maintenance and reset
- Allow the motor to cool for 20 minutes before troubleshooting and the switch will automatically reset. p. 18
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal power input | 1200 W | Power consumption | p. 20 |
| Nominal pressure | 6 MPa | Operating pressure | p. 20 |
Where to find it in the PDF
- Safety Instructions p. 4, 8, 9, 10
- Assembly p. 11
- Starting p. 12, 13, 14
- Troubleshooting p. 16, 17, 18, 19
- Technical Specifications p. 20
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FDW 2004-E is a high-pressure washer designed for cleaning surfaces. Before using, ensure all parts are accounted for and the shipping plug is removed. The device requires a 230V, 50Hz power supply and a dedicated 15A circuit. Always ensure the water supply is connected and the valve is fully open before starting.
General Description
The unit consists of a motor and pump in a case, a spray gun, a variable spray nozzle with lance, a high-pressure hose, and wheels. Familiarize yourself with the location of the ON/OFF switch, cord wrap, and accessory storage holsters.
Assembly Instructions
Locate and remove all loose parts from the carton. Click the storage hook into the back part and fix it with two screws. Remove and discard the shipping plug from the outlet on the front of the machine.
Starting
Connect the high-pressure hose to the machine outlet, ensuring threads are aligned. Connect the garden hose to the connector on the back of the machine. Insert the spray lance into the gun by pushing firmly and twisting 1/4 turn counter-clockwise. Turn on the water supply, plug the unit into an electrical outlet, unlock the gun safety, squeeze the trigger to bleed air, and turn the switch to the ON position.
Storage
After using detergent, rinse the suction tube and detergent nozzle with clear water for 30 seconds. Turn the machine OFF, squeeze the trigger to release trapped pressure, remove hoses, disconnect the lance, run the machine for 5 seconds to clear water, and store in a dry, climate-controlled environment above 4°C.
Troubleshooting
If the detergent is not dispensing, check if it is approved for pressure washers and ensure the suction tube is not kinked. If the motor stops, it may be due to thermal overload; allow it to cool for 20 minutes. If pressure is low, check the water supply and clean the inlet filter.
Technical Specifications
The unit operates at 230V, 50Hz with a nominal power input of 1200W. Nominal pressure is 6 MPa, with a maximum of 9 MPa. The nominal flow rate is 5.5 L/min.
Manufacturer information
Fieldmann
Practical help
Common problems
Detergent not dispensing
Check if detergent is approved for pressure washers, ensure suction tube is connected/not kinked, and clean the nozzle.
Motor stops during operation
Thermal overload switch tripped due to overheating. Allow the motor to cool for 20 minutes before restarting.
Low or surging pressure
Check water supply, ensure the garden hose is not kinked, and clean the water inlet filter screen.
Before use
- Check all parts are present in the carton
- Remove the shipping plug from the outlet
- Connect high-pressure hose to machine outlet
- Connect garden hose to water inlet
- Ensure water supply is on and valve is fully open
Specs in practice
- Nominal pressure
- 6 MPa (standard operating pressure)
- Maximum pressure
- 9 MPa (peak pressure)
- Nominal flow rate
- 5.5 L/min (standard water flow)
Images and diagrams

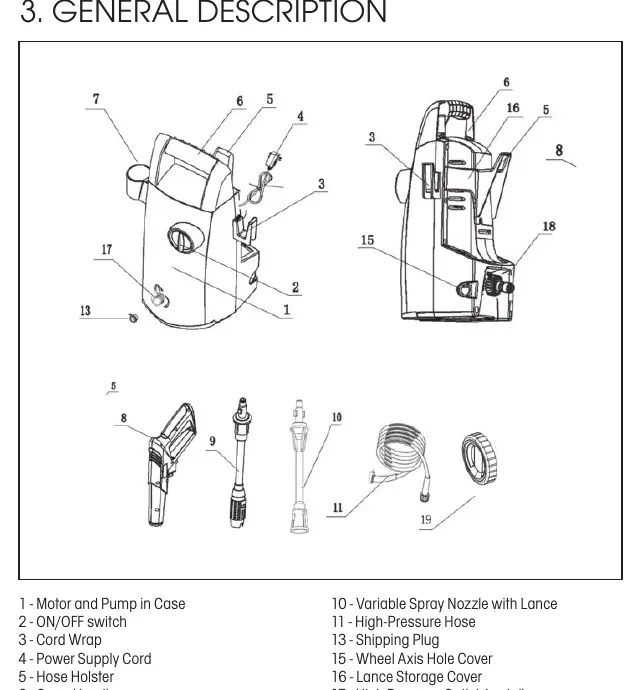

- Page 7: Overview of components including motor, pump, spray gun, and hose.
- Page 11: Assembly steps for storage hook and shipping plug removal.

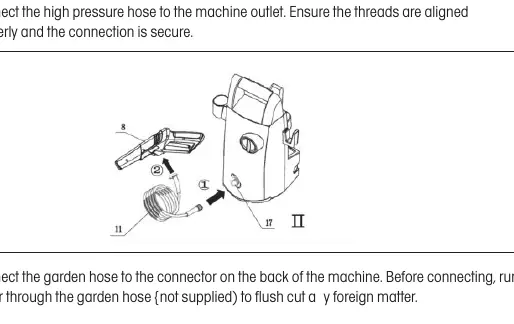

- Page 12: High-pressure hose and garden hose connection points.
Model compatibility
- Requires 230V, 50Hz power supply.
- Minimum 15 amp dedicated circuit required.
- Maximum garden hose length: 15.2m (city water) or 7.5m (well water).
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
