The Fieldmann FDV 2001-E and FDV 2002-E are impact drills designed for drilling into brick, concrete, wood, metal, ceramics, and plastic. They also support screwdriving and thread cutting. Always ensure the power supply matches the 230V/50Hz requirement before use.

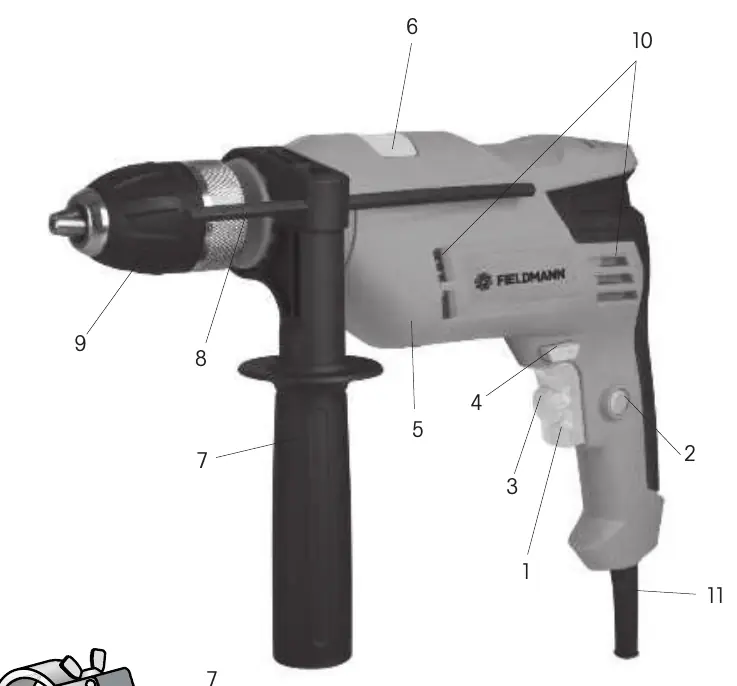

Product description
- 1: Main ON/OFF switch
- 2: Lock-on button for ON/OFF switch
- 3: Speed control dial
- 4: Direction switch
- 5: Drill body
- 6: Drilling/Impact mode switch
- 7: Auxiliary handle
- 8: Depth gauge
- 9: Keyless chuck
- 10: Ventilation slots
- 11: Power cable
Safety instructions
- Always use a detector to locate hidden electrical, water, or gas lines before drilling.
- Wear appropriate protective gear, including goggles and ear protection, especially during impact drilling.
- Secure the workpiece in a vice or clamp.
- If the motor stops under load, reduce pressure immediately.
- Always disconnect the power plug before changing drill bits or performing maintenance.
Operation
Drilling modes
Use the switch (6) to select the operating mode:
- Drilling: Move the switch to the right (standard drilling for wood/metal).
- Impact drilling: Move the switch to the left (for concrete).
Speed control
The drill speed is variable (0-3000 rpm) and is controlled by the pressure applied to the main switch (1). Apply less pressure for a slower, controlled start.
Chuck
The drill features a keyless chuck. Note that the chuck has a left-hand thread; if you need to remove it, you must first loosen the safety screw by turning it clockwise.
Technical specifications
- Power input: 810W
- Voltage: 230V / 50Hz
- Speed: 0-3000 rpm
- Max drilling capacity: 13 mm
- Cable length: 1.8 m
Manufacturer information
Fieldmann
Practical help
Common problems
Motor stops during operation
The tool is overloaded; reduce the pressure applied to the drill.
Chuck removal
You must first loosen the safety screw by turning it clockwise before unscrewing the chuck.
Before use
- Check that the power supply is 230V/50Hz.
- Inspect the power cable and plug for any damage.
- Use a detector to check for hidden pipes or wires in the wall.
- Secure the workpiece in a vice or clamp.
- Wear safety goggles and ear protection.
Specs in practice
- Max Drilling Capacity
- Maximum drill bit diameter is 13 mm.
Images and diagrams
- Switch (6) toggles between standard drilling (right) and impact drilling (left).
- Switch (1) controls the speed based on trigger pressure.
Model compatibility
- Suitable for brick, concrete, wood, iron, ceramics, and plastic.
- Suitable for screwdriving and thread cutting.
