Installation Manual for Finder 1L.10.8.230.000X Emergency Light
A comprehensive installation and configuration guide for the Finder 1L.10.8.230.000X recessed emergency light. Includes wiring diagrams, compatibility lists for wall plate adapters, and technical specifications.
Quick answers from the manual
Quick answer
- The 1L.10 is a recessed emergency light. Commissioning requires setting the selector switch from 0 to 1 before installation to enable automatic operation during power failure. p. 1
Key actions
- Commissioning p. 1
First start
- Turn the selector switch from 0 to 1 before mounting the device in the box. p. 1
Problems and fixes
Light fails to activate during power loss
Check if the selector switch was set to 1 during commissioning.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery Charge Time | 72 h | Time to full charge | p. 1 |
| Emergency Duration | 2.5 h | Operating time on battery | p. 1 |
Where to find it in the PDF
- Installation and Technical Data p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Finder 1L.10 is a recessed emergency lighting unit. Before installing the device into the wall box, you must perform the commissioning step: turn the selector switch from 0 to 1. This ensures the lamp will automatically illuminate when the power supply is absent and turn off when power is restored.
Installation
The device is designed for recessed mounting. Follow these steps for proper installation:
- Wiring: Connect the device according to the provided wiring diagram, ensuring the Line (L) and Neutral (N) connections are correct.
- Adapter Selection: Use the appropriate adapter for your specific wall plate. The device is compatible with various commercial brands and series.
- Mounting: Insert the device into the wall box using the compatible adapter.

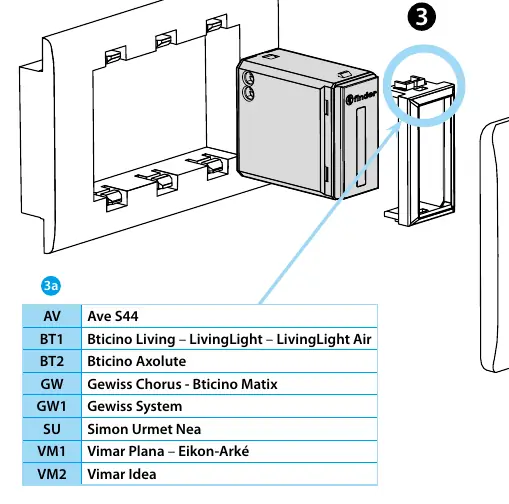

Compatibility
The 1L.10 is compatible with a wide range of wall plate systems. Supported series include:
- Ave: S44
- Bticino: Living, LivingLight, LivingLight Air, Axolute
- Gewiss: Chorus, System, Matix
- Simon Urmet: Nea
- Vimar: Plana, Eikon, Arké, Idea
Technical Specifications
- Supply Voltage: 110...230 V AC (50/60 Hz)
- Power Consumption: 0.2 W
- Operating Temperature: -10 to +50°C
- Protection Rating: IP20
- Battery Charge Time: 72 hours for a full charge
- Emergency Duration: 2.5 hours when fully charged
- Light Output: 14 lumen
- Color Temperature: 5700 K
Manufacturer information
Finder S.p.A.
Practical help
Common problems
Light does not turn on during power failure
Ensure the selector switch was turned from 0 to 1 during the commissioning phase before installation.
Before use
- Verify that the supply voltage is within the 110-230V AC range.
- Identify the correct adapter for your wall plate series using the compatibility table.
- Perform the commissioning step (switch 0 to 1) before mounting.
- Allow 72 hours for the battery to fully charge.
Specs in practice
- Charging time
- The battery requires 72 hours of continuous power to reach full capacity.
Images and diagrams
- The wiring diagram shows the connection of Line (L) and Neutral (N) to the device.

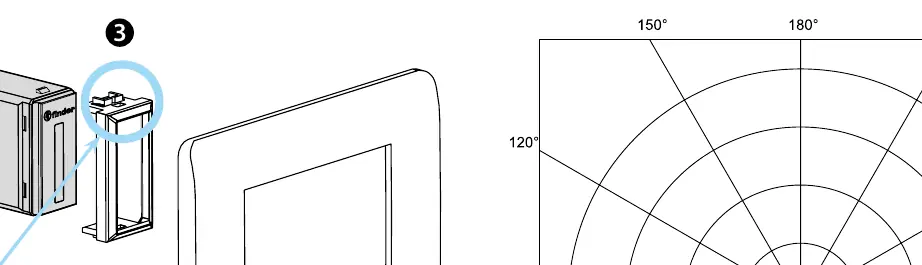

- The installation sequence shows the device being inserted into the wall box with the adapter.
- Polar diagrams illustrate the light distribution in horizontal and vertical sections.
Model compatibility
- The device requires a specific adapter for different wall plate brands.
- Compatible brands include Ave, Bticino, Gewiss, Simon Urmet, and Vimar.
