User Manual for FMS 1:6 JIMNY RC Car
Quick guide for the FMS 1:6 JIMNY RC car. Includes transmitter FS-G4P setup, ESC WP-1040 configuration, binding instructions, assembly steps, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The FMS 1:6 JIMNY is a scale RC model featuring a metal beam, non-load bearing chassis, and leaf spring suspension. This manual covers the operation of the included FS-G4P transmitter and the WP-1040-BRUSHED ESC.
Transmitter Setup (FS-G4P)
The FS-G4P is a 4-channel 2.4GHz transmitter. Before operation, install 4 AA batteries in the base compartment.
Binding
- Turn on the transmitter while holding the bind button to enter bind mode (G.LED flashes quickly).
- Power on the receiver; it will enter bind mode automatically.
- Binding is successful when the receiver LED flashes slowly and the transmitter LED remains solid.
Calibration
If recalibration is required:
- Turn and hold the wheel clockwise and throttle forward, then turn on the transmitter.
- Calibrate wheel: Turn fully clockwise, then counterclockwise.
- Calibrate trigger: Pull back then forward fully.
- Press the bind key to save and exit.
ESC Configuration (WP-1040)
The ESC features jumpers to configure settings:
- Battery Type: Select between LiPo or NiMH.
- Mode: Select between Crawler or Boat mode.
- Reverse: Enable or disable reverse functionality.
Operating the Vehicle
Always power on the transmitter before the receiver. Ensure the throttle is at the lowest position and switches are in the up position before powering on. The vehicle features an adjustable windshield, hinged hood for maintenance, and a spare tire carrier.
Assembly
The vehicle requires assembly of the rearview mirrors and the top bow. Ensure all parts are securely fastened according to the assembly diagrams.
Battery Safety
- Always charge LiPo batteries on non-flammable, heat-resistant surfaces.
- Use a LiPo-safe bag during charging.
- Do not allow LiPo cells to exceed 60°C (140°F).
- Disconnect and remove the battery from the model when not in use for long periods.
Official resources from the manual
Manufacturer information
FMS Model
Practical help
Common problems
Motor doesn't work, no sound, LED off
Check battery wire connections or replace the defective switch.
Motor doesn't work, red LED blinks
Check throttle wire connection or set throttle trim to neutral.
Car runs backward when giving throttle
Swap two motor wire connections or reverse the throttle channel on the transmitter.
Car cannot go backward
Check the jumper position on the ESC.
Before use
- Install 4 fresh AA batteries in the transmitter.
- Ensure the ESC battery is fully charged.
- Verify the throttle is at the lowest position.
- Check that all transmitter switches are in the up position.
- Ensure the receiver is properly connected to power.
Specs in practice
- WP-1040-BRUSHED
- Electronic Speed Controller (ESC) supporting 2-3S LiPo or 5-9 cells NiMH.
- Throttle Throw
- 12 degrees forward, 12.5 degrees backward.
Images and diagrams

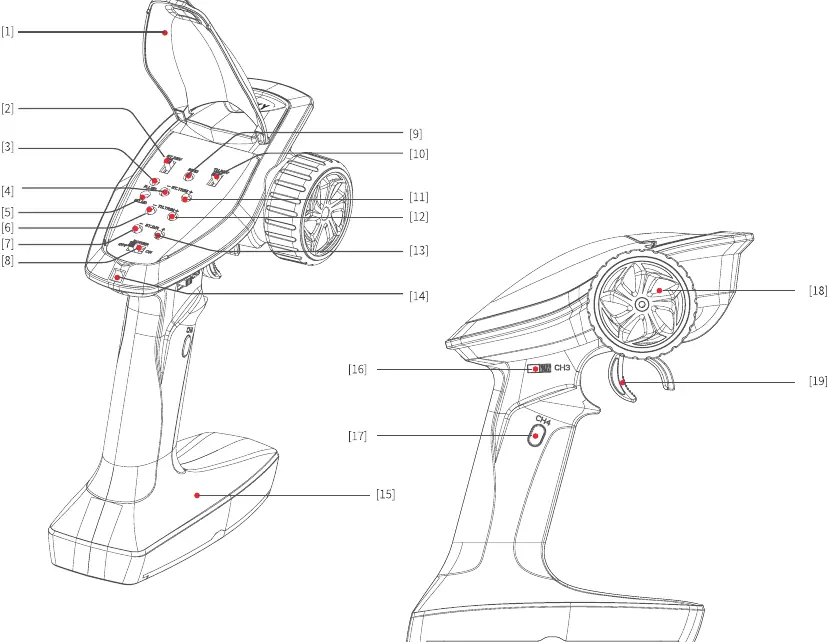

- Transmitter controls: Shows trim, D/R, and channel switches.

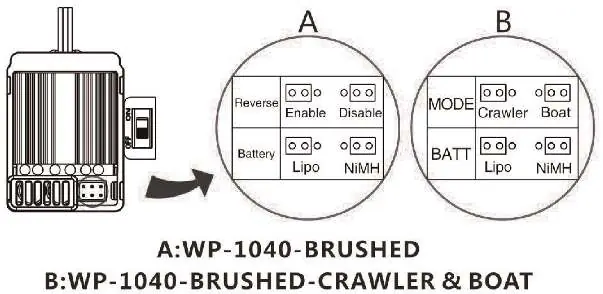

- ESC Jumper settings: Visual guide for configuring Battery type and Mode (Crawler/Boat).
Model compatibility
- Transmitter FS-G4P is compatible with FR-R4P receiver.
- ESC supports 540 or 550 size motors.
