User Manual for FMS Yak 54 1300mm RC Airplane

Important Safety Information

This product is a sophisticated hobby model, not a toy. It is intended for users aged 14 and older. Always operate the model in a safe, open area away from people, traffic, and buildings. Never operate the model with low transmitter batteries or in the street. Moisture can damage electronics, so avoid water exposure. Never place any part of the model in your mouth.

Kit Contents and Inspection

Before assembly, inspect all parts to ensure they are in good condition. The kit includes:

• Fuselage assembly (with motor, canopy, electronics, and ESC)
• Rudder (with hinges)
• Horizontal stabilizer
• Landing gear set
• Propeller and spinner
• Main wing tube
• Spare parts bag

Assembly Instructions

Follow these steps to assemble your aircraft:

• Landing Gear: Fit the main landing gear into the fuselage, install the fairing plate, and secure it with the provided screws.
• Horizontal Stabilizer: Slide the stabilizer into the mounting groove, ensuring the red side faces down, and secure with self-tapping screws.
• Rudder: Slide the carbon fiber hinge axis into the hinge cap on the vertical fin.
• Main Wing: Slide the wing panels into the mounting saddle while threading the aileron servo leads. Insert the reinforcing tube and secure the wing using the provided machine screws.
• Receiver and Battery: Attach the receiver to the hatch using velcro. Slide the battery into the hatch and secure it with hook and loop tape, adjusting the position to achieve the correct Center of Gravity (CG).
• Linkages: Connect the linkage rods to the control horns for the aileron, elevator, and rudder. Use the provided fuel tubing to keep the clevis closed.
• Propeller: Install the propeller blades onto the back plate, cover with the spinner, and secure with the provided screws.

Preparing for Flight

Proper setup is critical for safe flight:

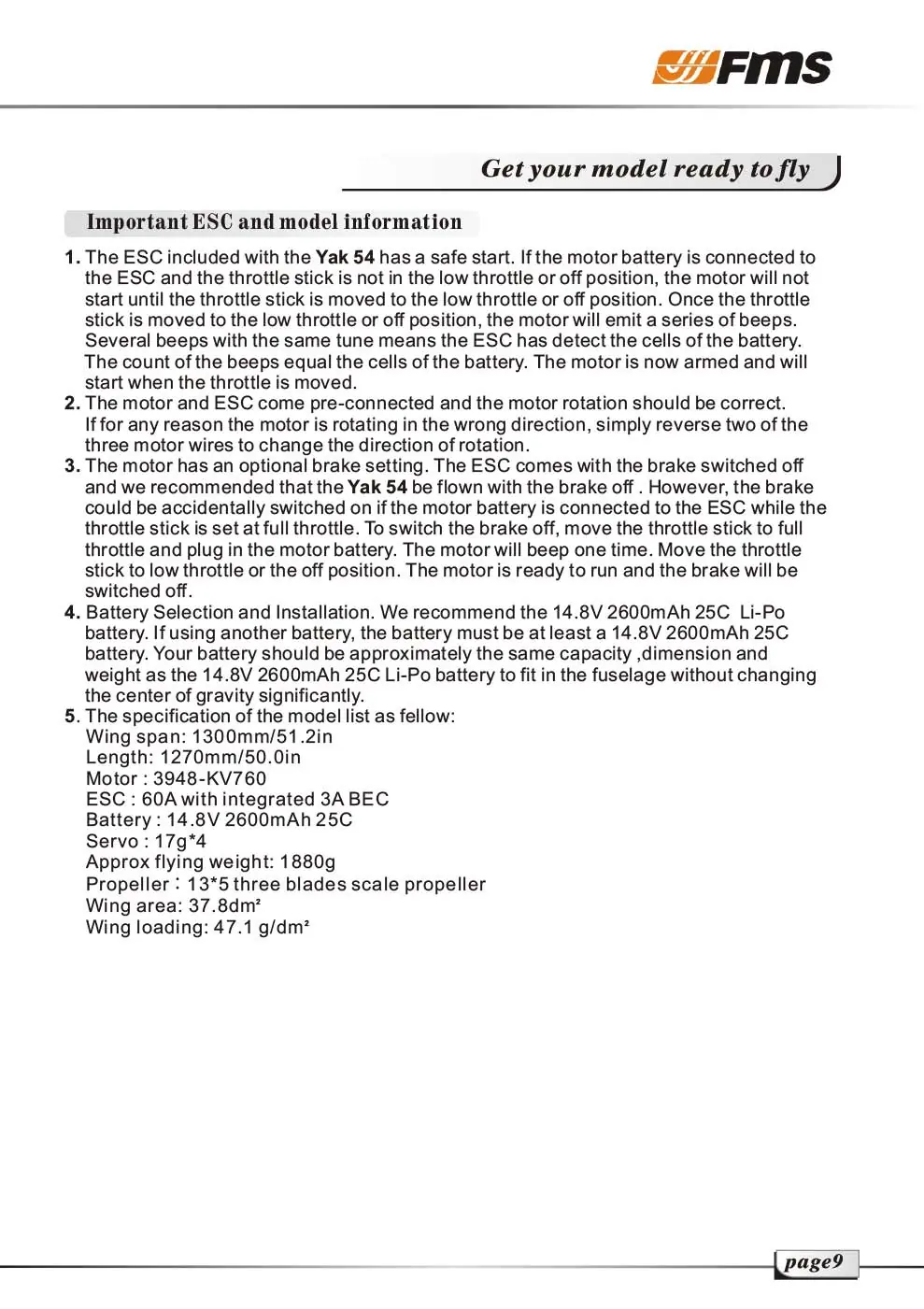

• ESC and Motor: The ESC has a safe start feature. Ensure the throttle stick is in the low or off position before connecting the battery.
• Transmitter Setup: Bind your receiver to your transmitter. Ensure all control sticks are in the neutral position.

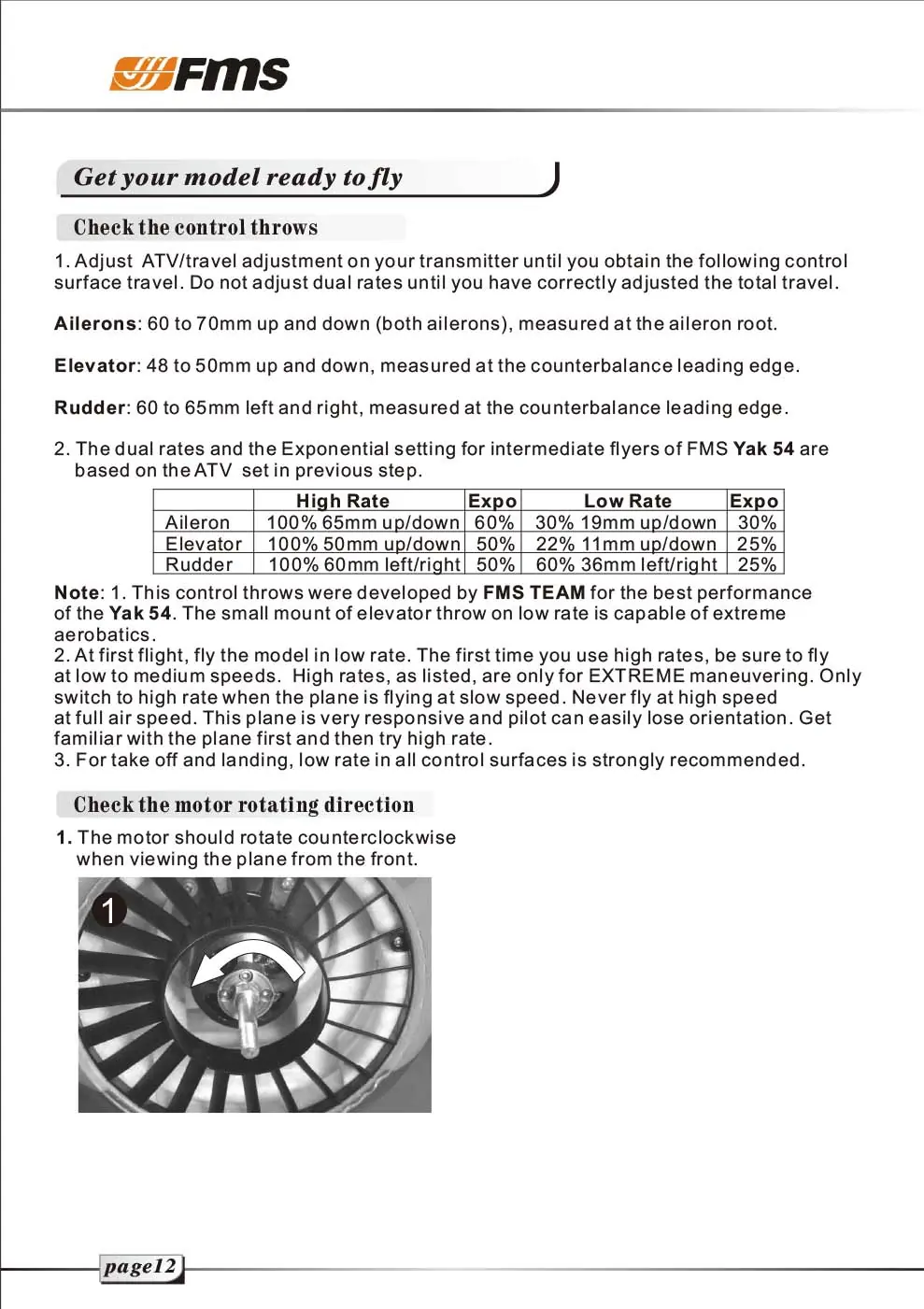

• Control Throws: Adjust the ATV/travel settings on your transmitter. Recommended throws are 60-70mm for ailerons, 48-50mm for elevator, and 60-65mm for rudder.
• Center of Gravity (CG): The recommended CG is 120mm forward from the leading edge of the main wing. Balance the model with the battery installed.

Flying Guidelines

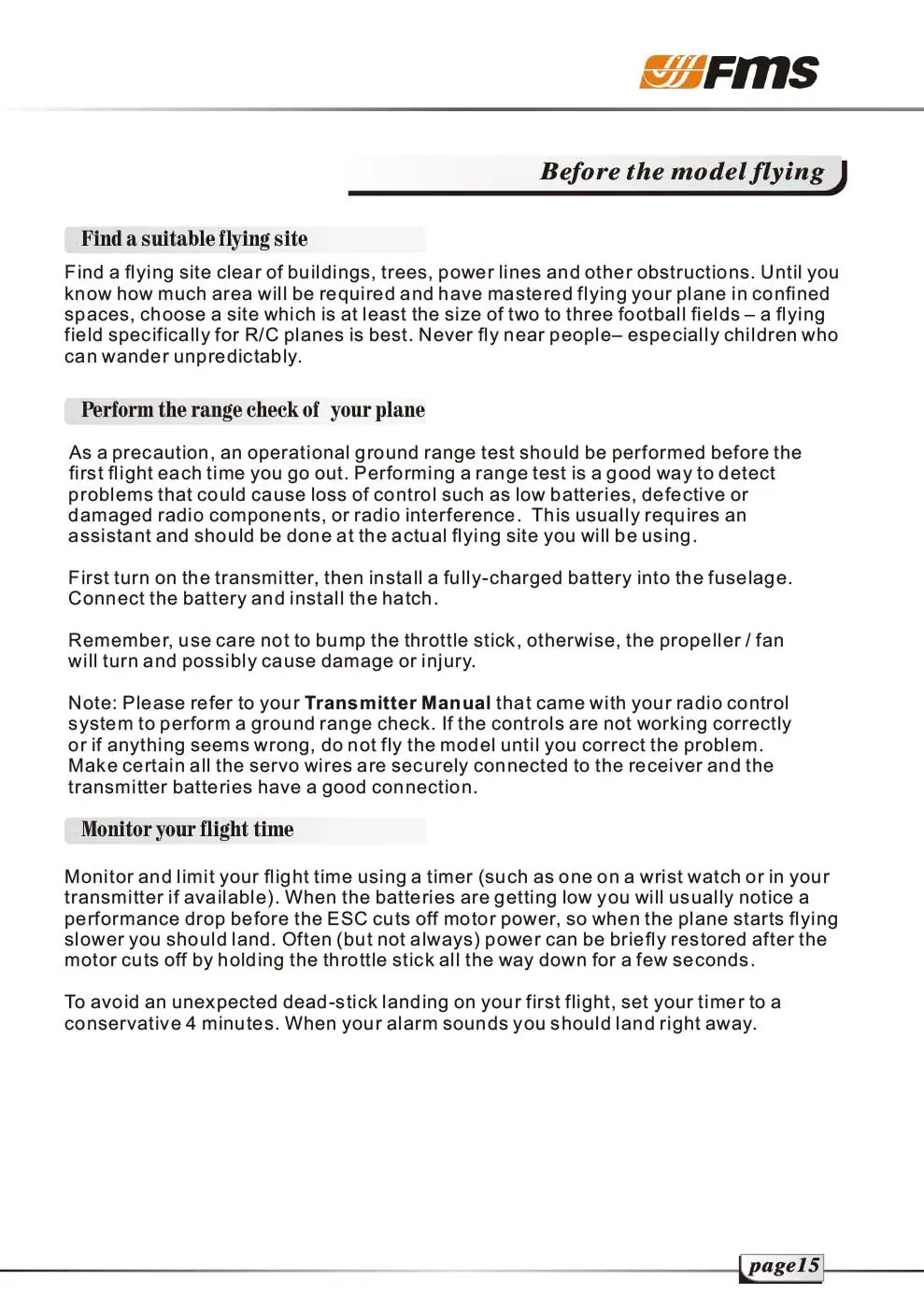

Before your first flight, perform a ground range check to ensure radio components are functioning correctly. Choose a flying site at least the size of two to three football fields. Monitor your flight time using a timer; a conservative 4-minute timer is recommended for the first flight to avoid unexpected power loss.

Troubleshooting

If you encounter issues, check the following:

• No throttle response: Ensure the ESC is armed and the throttle channel is not reversed.
• Excessive vibration: Check for damaged propeller/spinner or loose parts.
• Reduced flight time: Ensure the battery is fully charged and the propeller is installed correctly.
• Reversed controls: Check transmitter channel settings.
