User Manual for Frico Ribbed Pipe Radiator 125 and 127 Series
Quick guide for Frico Ribbed Pipe Radiator 125 and 127 series. Includes installation instructions, wiring diagrams, technical specifications, and safety guidelines.
Table of contents
Manual images
Click an image to enlargeImportant Information
The Frico Ribbed Pipe Radiator is designed for fixed installation in both dry and damp environments, as well as garages. The 127 series models are sand-filled and approved for environments with a risk of fire. Please read all instructions before installation and use.
Installation
The radiator must be mounted horizontally on the wall using four screws via the keyhole slots. Ensure the connection box is positioned on the left side when viewed from the front. The two lower slots are used to secure the radiator. Maintain the following minimum distances for safe operation:
- Above: 300 mm
- Below: 200 mm
- Side: 50 mm
An optional floor mounting support (FBRP) is available.
Electrical Installation
The radiator is intended for permanent installation. The electrical connection must be performed by a qualified electrician in accordance with the latest IEE wiring regulations. The installation must be preceded by an omnipolar switch with a contact separation of at least 3 mm.
Controls and Wiring
The radiator requires an external control device to comply with Ecodesign regulations (EU) 2015/1188. Approved control devices include the TAP16R electronic thermostat, which features weekly programming, open window detection, and adaptive start control. For installations not covered by Ecodesign regulations, other control solutions such as the KRT series may be used. Refer to the wiring diagrams provided in the manual for specific connection configurations based on your model and thermostat type.
Safety and Maintenance
The radiator is equipped with a capillary tube for overheating protection. If the protection triggers, identify and eliminate the cause, then press the reset button located inside the cover. Note that surfaces can become very hot during operation. Do not cover the radiator with fabric or similar materials, as this poses a fire risk. Do not place the unit directly under a fixed wall socket. A 300 mA residual current circuit breaker is recommended for fire protection.
Technical Data
All models operate at 230V~. The 125 series ranges from 200W to 1150W, while the 127 series (sand-filled) ranges from 500W to 800W. All units are rated IP44.
Contact Information
For the latest updated information and local contact details, visit www.frico.net. Main office: Frico AB, Industrivägen 41, SE-433 61 Sävedalen, Sweden. Tel: +46 31 336 86 00. Email: [email protected].
Official resources from the manual
Practical help
Common problems
Overheating protection triggered
Identify and eliminate the cause of overheating, then press the reset button located inside the cover.
Smoke or odor during first use
This is normal and results from dust or dirt accumulated during storage; it will disappear quickly.
Before use
- Ensure the wall surface can support the weight of the radiator.
- Verify the connection box is on the left side when viewed from the front.
- Confirm the power supply is 230V~.
- Ensure minimum clearance distances (300mm above, 200mm below, 50mm side) are maintained.
- Check that an omnipolar switch with 3mm contact separation is installed.
Images and diagrams

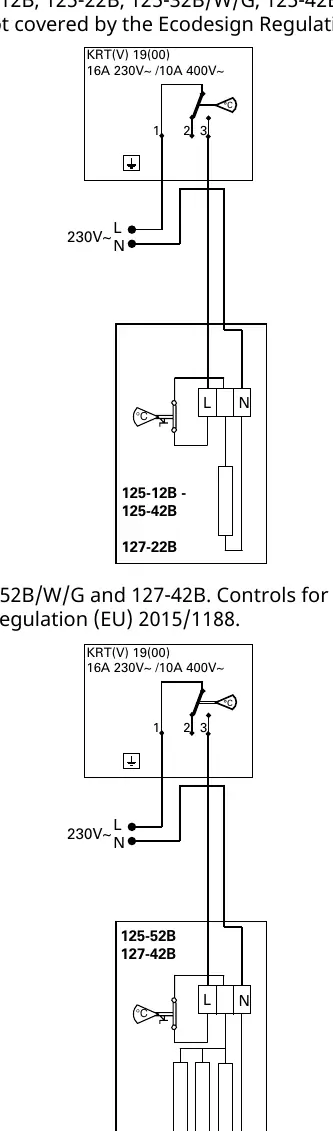

- Wiring diagrams illustrate connections for thermostats like TAP16R and KRT series.
- Dimensions table provides A and B measurements for all specific model variants.
Model compatibility
- Requires an external thermostat for Ecodesign compliance.
- 127 series is sand-filled for fire-risk environments.
