Frigidaire FGID2474QF0A Dishwasher Parts Catalog
Official parts catalog for the Frigidaire 24-inch built-in dishwasher model FGID2474QF0A. Includes exploded diagrams and part lists for the control panel, door, wash system, electrical components, and racks.
Quick answers from the manual
Quick answer
- This document is a parts catalog for the Frigidaire 24-inch built-in dishwasher (Model FGID2474QF0A). It provides exploded diagrams and lists of replacement parts for the control panel, door, wash system, electrical components, and racks. p. 1
Key actions
- Identify parts using exploded diagrams p. 2, 4, 6, 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Circulation Pump | 120V, 850W | Power rating for the circulation pump assembly. | p. 7 |
| Drain Pump | 60HZ | Frequency rating for the drain pump. | p. 7 |
Show 1 more answers Show less
Where to find it in the PDF
- Control Panel p. 2, 3
- Electrical Parts p. 6, 7
- Wash System p. 8, 9

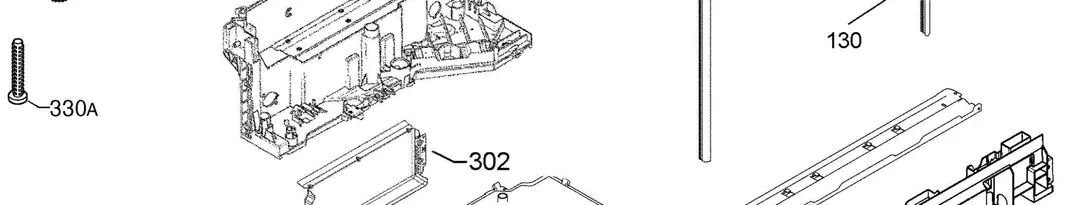

- Tub & Frame p. 10, 11
- Wiring Diagram p. 14
Table of contents
Manual images
Click an image to enlargeParts Catalog Overview
This document serves as the official parts catalog for the Frigidaire 24-inch built-in dishwasher, model FGID2474QF0A. It provides detailed exploded diagrams and corresponding part numbers for all major assemblies of the appliance, intended for use in identifying and ordering replacement parts.
How to Use This Catalog
The catalog is organized by major functional systems. Each section includes an exploded view diagram with position numbers (POS. NO) that correspond to the part lists provided on the facing pages. Use these part numbers when ordering replacements or identifying components for repair.
Major Assemblies

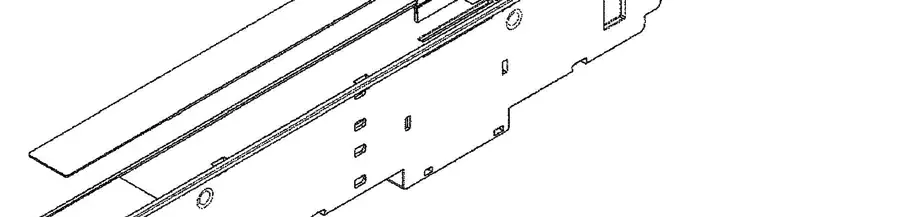

- Control Panel: Includes the complete control panel assembly.

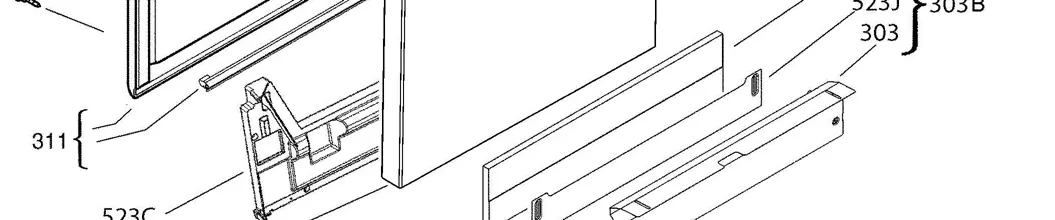

- Door: Includes the outer door, liner, handle, and kickplate components.

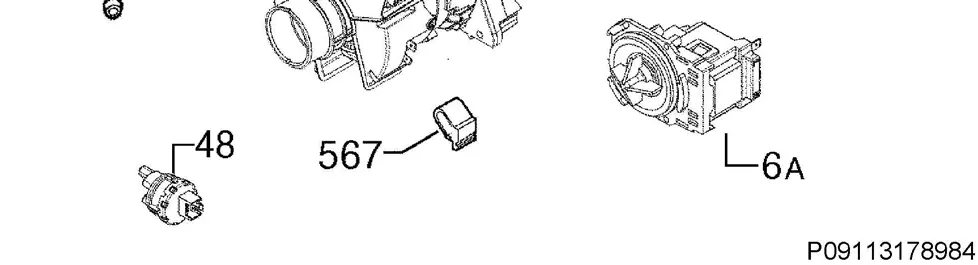

- Electrical Parts: Includes the circulation pump, drain pump, sensors, detergent dispenser, and control boards.

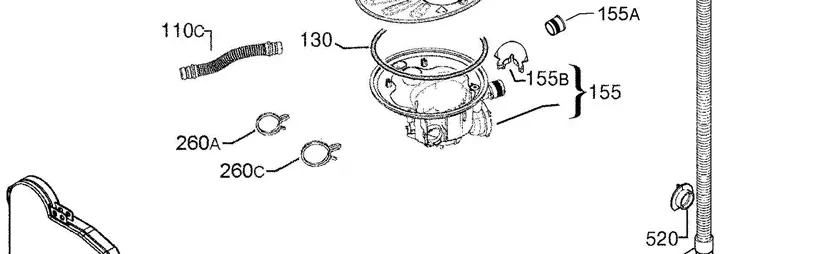

- Wash System: Includes spray arms, sump assembly, filters, and hoses.
- Tub & Frame: Includes the base, hinges, adjustable feet, and rack rails.

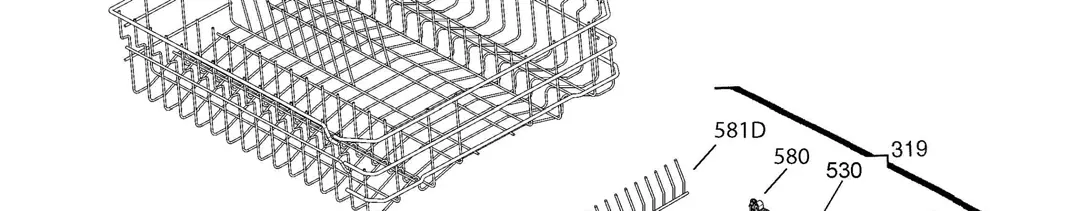

- Racks: Includes upper and lower rack assemblies, cutlery baskets, and rack rollers.
Wiring Diagram
A comprehensive wiring diagram is provided on page 14, detailing the connections between the main control board, door lock, dispenser, sensors, and pumps.
Manufacturer information
Frigidaire
Practical help
Common problems
Identifying a replacement part
Locate the component in the exploded diagrams, note the position number, and find the corresponding part number in the list on the facing page.
Before use
- Verify the model number (FGID2474QF0A) matches your appliance.
- Identify the specific assembly (e.g., Wash System, Electrical) where the part is located.
- Use the exploded diagram to find the position number of the required part.
- Cross-reference the position number with the part list to find the correct part number.
Show more Show less
Specs in practice
- Circulation Pump
- 120V, 850W, complete assembly with heater.
Images and diagrams
- Exploded views show the physical arrangement of parts.
- Position numbers (POS. NO) link the diagram to the part list table.
- Part numbers are required for ordering replacements.
Model compatibility
- This catalog is specific to model FGID2474QF0A.
Manual page author
David Miller
Documentation analyst
