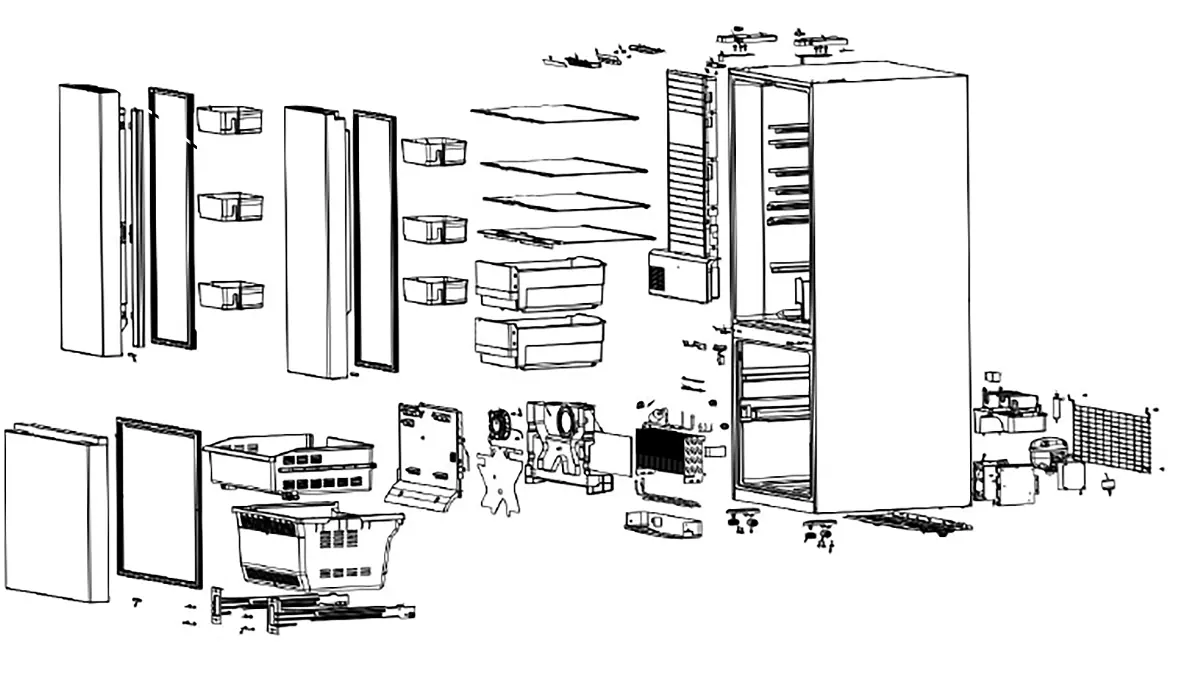

Troubleshooting and Service Manual for Furrion Everchill 17 Cu. Ft. 12V Refrigerator
Quick guide for the Furrion Everchill 17 Cu. Ft. 12V Refrigerator (BCD-455WTE-B-04H). Includes wiring instructions, maintenance tips, troubleshooting, and specifications.
Table of contents
Quick guide from the manual
This document provides essential service, maintenance, and troubleshooting information for the Furrion Everchill 17 Cu. Ft. 12V Refrigerator. It is intended for use by qualified service personnel or owners performing basic maintenance. Always prioritize safety and disconnect power before performing any service.
Safety instructions
- Electric Shock Hazard: Do not remove the back cover. There are no user-serviceable parts inside.
- Ventilation: Keep all ventilation openings clear of obstructions.
- Handling: Do not damage the refrigerant circuit or tubing.
- Environment: Do not use near water, heat sources, or in areas exposed to rain/moisture.
- Supervision: Ensure children do not play with or crawl inside the refrigerator.
Power source requirements
This is a Class III appliance and must be supplied at safety extra low voltage (12V DC). Do not connect to AC power.
Wiring requirements: The connection must be reliable. Use the following wire sizes based on the maximum length:
- 14 AWG: 3.2 Feet (Not recommended)
- 13 AWG: 8 Feet
- 12 AWG: 13 Feet
- 10 AWG: 20 Feet
- 8 AWG: 33 Feet
- 6 AWG: 50 Feet
Wiring connection
Refer to the wiring diagram (Fig. 1) for connections:
- Connect the 1 terminal to the Positive pole of 12V DC.
- Connect the 2 terminal to the Negative pole of 12V DC.
- If installed in an RV, connect the 3 GND terminal directly to the RV chassis.
Maintenance and cleaning
- Cleaning: Use a damp cloth. Avoid bristle brushes, steel wool, detergents, soap powder, alkaline cleaners, benzene, gasoline, or acid.
- Door Gasket: Carefully wipe dry and clean the groove. When replacing, fix the four corners first, then embed the rest segment by segment.
- General: Clear dust from the rear panel and side plates regularly.
Troubleshooting
If the unit is not operating, check if it is unplugged or if the circuit breaker/fuse is blown. If the refrigerator is too warm, check the temperature setting, ensure the door is not left open, and verify the door gasket seals properly. If the unit is vibrating, ensure it is on a level surface and not touching the wall.
Specifications
- Total Volume: 16 Cu. Ft. (453L)
- Refrigerant: R600a (2.3oz)
- Rated Voltage: DC 12V
- Rated Current: 14.5A
- Defrost Power: 120W
- Net Weight: 187 lb. (85kg)
Manufacturer information
Furrion
Practical help
Common problems
Refrigerator does not operate
Check if the unit is unplugged or if the circuit breaker/fuse is blown.
Refrigerator compartments are too warm
Check temperature control settings, ensure the door is not frequently opened, verify the door gasket seals properly, or wait for the unit to reach temperature after being disconnected.
Vibrating or rattling
Adjust leveling legs, ensure the unit is on a level surface, and move the unit away from the wall.
The door will not close properly
Ensure the refrigerator is on a level surface, clean the gasket, or check if the storage basket is out of position.
Before use
- Ensure the power source is 12V DC.
- Verify the wire gauge is appropriate for the length of the run (13 AWG or larger recommended).
- Ensure the refrigerator is placed on a level surface.
- Check that all ventilation openings are clear of obstructions.
- Ensure the unit is not installed near heat sources.
Specs in practice
- Rated Voltage: DC 12V
- The unit must be powered by a 12V DC source; do not connect to AC power.
- Rated Current: 14.5A
- The maximum electrical current draw during operation.
- Refrigerant: R600a
- The type of refrigerant used; handle with care as it is flammable.
Images and diagrams
- Fig. 1 shows the terminal block layout for 12V DC power input, identifying the positive, negative, and ground connections.
Model compatibility
- This appliance is intended for use in recreational vehicles (RVs).
