Furrion 2-Zone Entertainment Soundbar FSB2N25MC-BL Spec Sheet
Technical specifications and product overview for the Furrion 2-Zone Entertainment Soundbar (FSB2N25MC-BL), including power requirements, connectivity options, and dimensions.
Table of contents
Manual images
Click an image to enlargeProduct Overview and Specifications
The Furrion 2-Zone Entertainment Soundbar (FSB2N25MC-BL) is a specialized audio device designed for multi-zone entertainment setups. This document provides the technical specifications and physical dimensions required for installation and integration.
Key Features
- Digital FM Tuner: Includes 10 presets for radio stations.
- 2-Zone Audio Distribution: Supports one internal zone and one external zone.
- 2-Zone Video Distribution: Allows for routing video signals to two zones.
- Connectivity: Features front-access HDMI, USB interface, and an IR sensor.
- Inputs: Equipped with 2 analog stereo inputs on the rear panel.
- Compatibility: Works with Unimote.
Technical Specifications
- Operating Voltage: DC 9-16V
- Max Power Consumption: 70.5W
- Max Power Output: Full range: 10W x 2; Subwoofer: 20W; Z2: 10W x 2
- USB Charging: Max 2.1A
- USB Port: Supports high-speed USB 2.0 flash drives
- Radio Coverage: FM 87.5 - 107.9 MHz
- Bluetooth Effective Range: Up to 30 feet
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Connectivity Ports
- 1 x RCA (Audio LR) Output
- 1 x Video Input
- 2 x Video Outputs
- 1 x HDMI Output
- 1 x HDMI Input
- 1 x 3.5mm AUX-IN
- 2 x Zone Audio Outputs (1 Internal, 1 External)
Support and Contact
For technical support or customer service, contact Furrion at:
Email: [email protected]: (888) 354 5792Address: USA Innovation Center & Institute of Technology, 52567 Independence Ct. Elkhart, IN 46514
Manufacturer information
Furrion
Practical help
Before use
- Ensure the power source provides DC 9-16V.
- Verify that the installation environment is within the operating temperature range of -20°C to 60°C.
- Ensure Bluetooth devices are within the 30-foot effective range.
- Check that the USB drive is formatted for high-speed USB 2.0 compatibility.
Specs in practice
- Operating Voltage
- The device requires a DC power supply between 9V and 16V.
- Max Power Output
- Total output is distributed across full range (10W x 2), subwoofer (20W), and Z2 (10W x 2).
- Radio Coverage
- The FM tuner operates on the standard 87.5 - 107.9 MHz frequency band.
Show more Show less
Images and diagrams

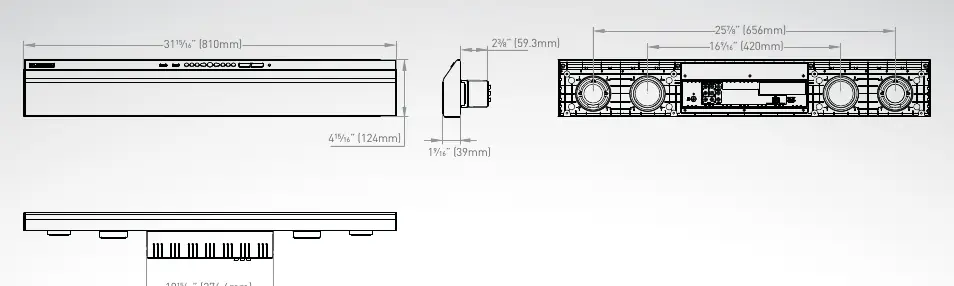

- The dimensions diagram on page 2 provides the exact width, height, and depth of the unit for mounting purposes.
- The unit measures 31 15/16 inches (810mm) in width.
Model compatibility
- Compatible with Unimote.
- Supports high-speed USB 2.0 flash drives.
