Installation Manual for Geberit Monolith Plus Sanitary Module
Comprehensive installation guide for the Geberit Monolith Plus sanitary module. Includes essential safety instructions for glass handling, detailed mounting steps, water and electrical connection procedures, and final assembly instructions.
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
The Geberit Monolith Plus contains glass components that require careful handling to prevent injury. Always wear protective goggles and cut-resistant gloves during installation. Ensure that all glass edges and surfaces are protected from damage. Only install components that are free from damage. When mounting the frame, ensure it is installed without mechanical distortion to prevent tension on the glass plate.
Installation Preparation

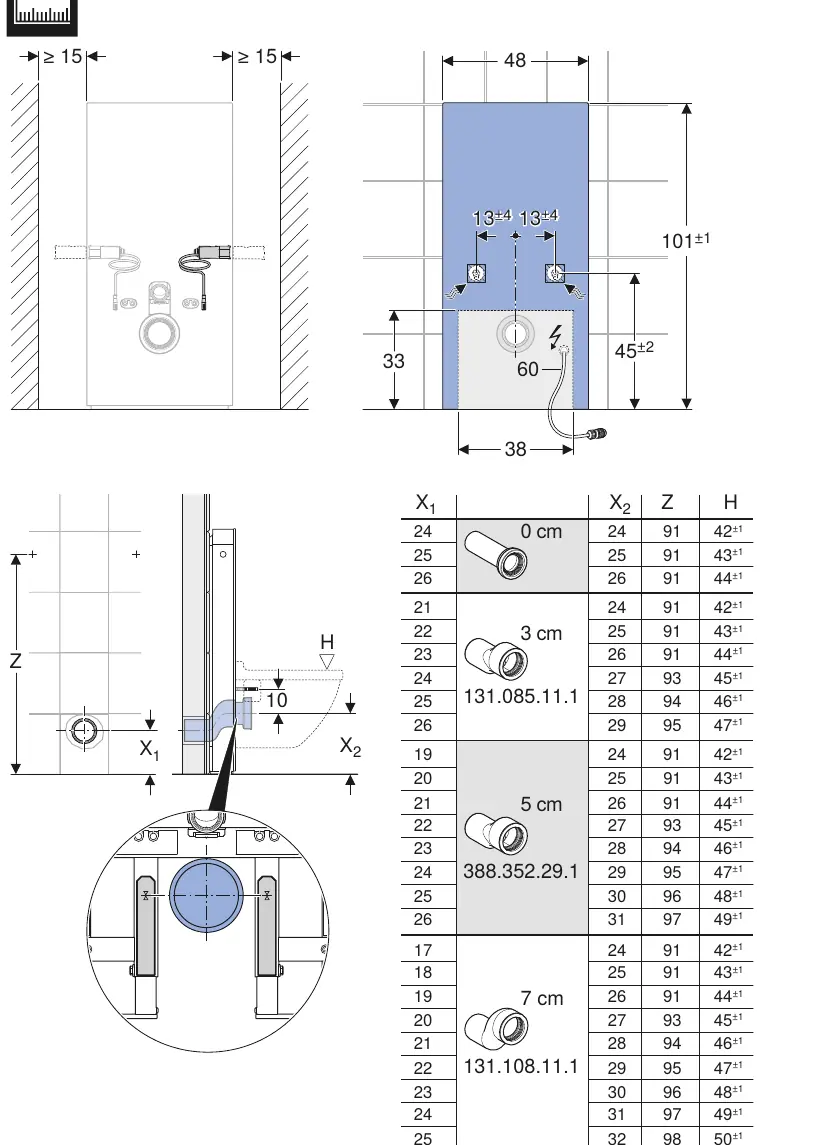

Before beginning the installation, ensure you have the necessary tools and that the wall structure is suitable. Refer to the dimension diagrams provided in the manual to mark the correct positioning for the mounting frame and water connections. Ensure the mounting frame is level and free of mechanical stress.

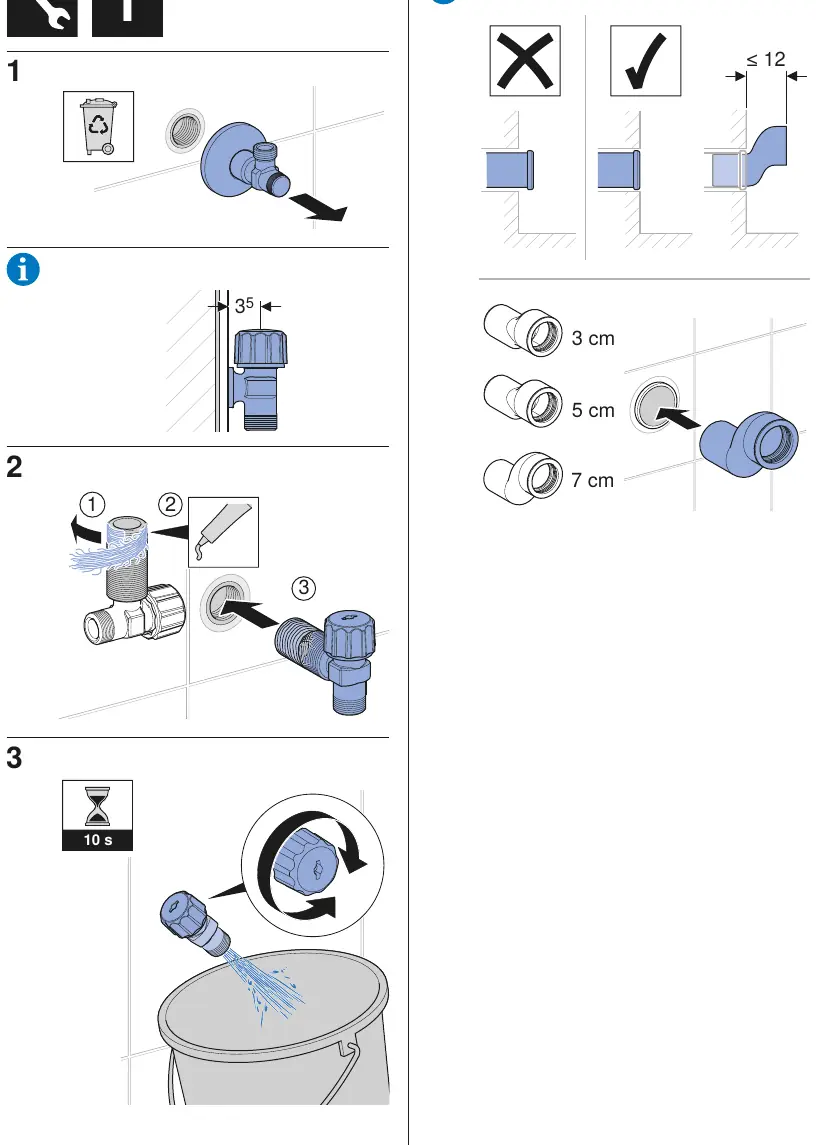

Water Connection
1. Flush the water supply line thoroughly before connecting to ensure no debris enters the system.2. Connect the water supply according to the provided diagrams.3. Check all connections for leaks after installation.

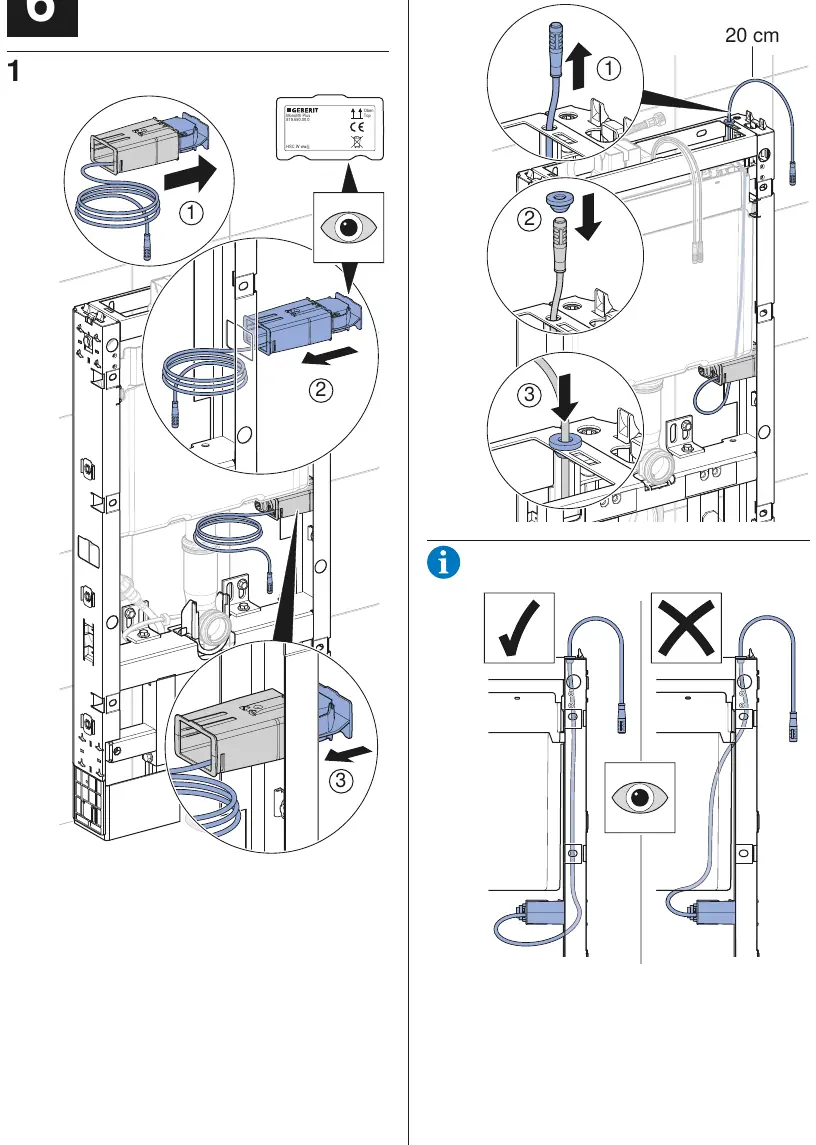

Electrical Connection
The Monolith Plus requires an electrical connection. Ensure the power supply is disconnected before starting. Route the cables carefully as shown in the installation diagrams, ensuring they are not pinched or damaged during the assembly of the glass panel.

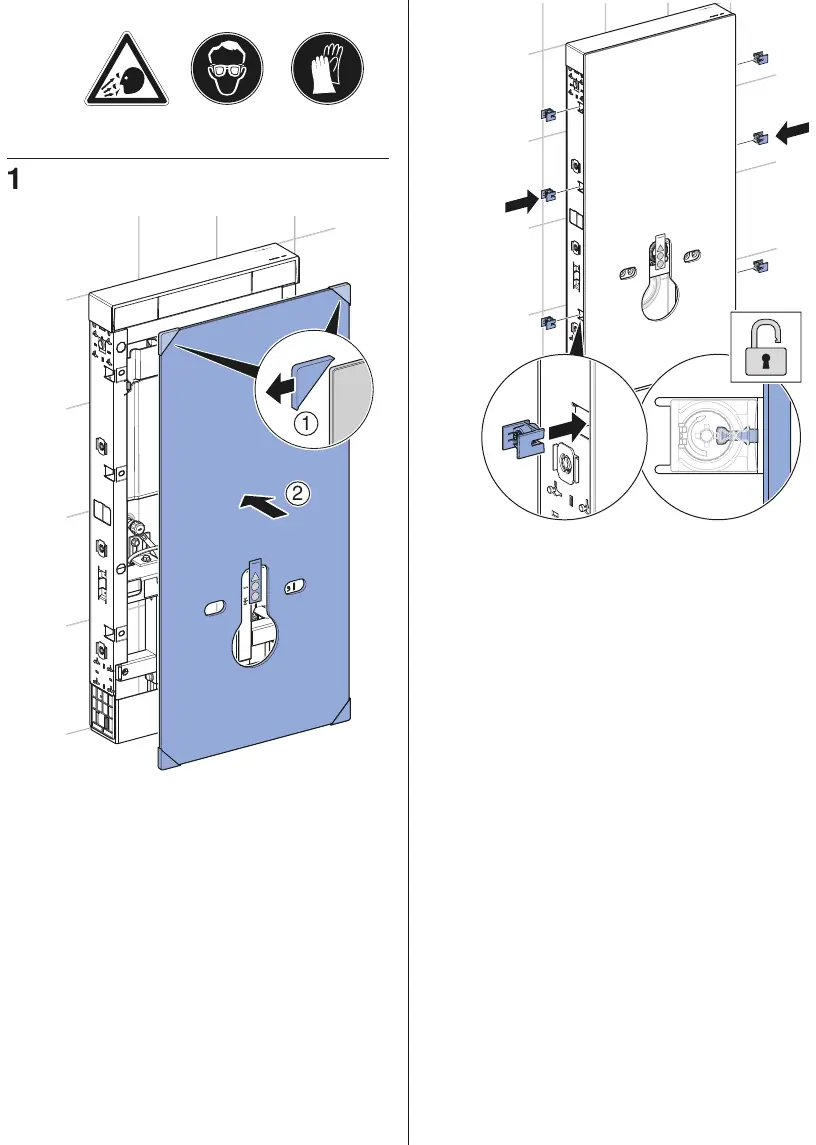

Final Assembly
Once the frame is mounted and connections are secured, attach the glass panel. Ensure it is properly aligned and locked into place. Verify that all safety clips are engaged to secure the glass panel against falling.
Maintenance and Cleaning
Regularly inspect the unit for any signs of damage. Clean the glass surfaces with non-abrasive cleaners to maintain the finish. Do not use harsh chemicals that could damage the glass or the mounting components.
Manufacturer information
Geberit Group
Practical help
Common problems
Glass panel tension or breakage
Ensure the mounting frame is installed without mechanical distortion or stress.
Water leaks
Verify that the water supply line is properly flushed and connections are tightened correctly.
Before use
- Wear protective goggles and cut-resistant gloves.
- Inspect all components for damage before installation.
- Ensure the mounting frame is level and free of mechanical stress.
- Flush the water supply line before connection.
Images and diagrams
- The manual provides detailed dimension diagrams for wall preparation.
- Step-by-step illustrations guide the user through the mounting frame installation, water connection, and electrical wiring.
- Specific diagrams show the correct sequence for attaching the glass panel.
Model compatibility
- Designed for use with Geberit AquaClean systems.
