Installation Guide for Globe Electric 3-Light Vanity Fixture 52056
A comprehensive installation guide for the Globe Electric 3-Light Vanity Fixture (model 52056). This manual includes essential safety warnings, step-by-step wiring instructions, and bulb specifications.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Globe Electric 3-Light Vanity Fixture (model 52056), including safety warnings, wiring diagrams, and bulb specifications. p. 1, 2
Key actions
- Turn off power at the main breaker or fuse box before beginning installation. p. 2
First start
- Install three E26 base bulbs (max 60W each) after securing the fixture to the wall. p. 2
Show 3 more answers Show less
Maintenance and reset
- Clean the lamp with a soft, damp cloth after turning off the power. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | E26 | Medium base | p. 2 |
| Max Wattage | 60W | Maximum wattage per bulb | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation Instructions p. 2
Table of contents
Quick Guide from the Manual
This document provides installation instructions for the Globe Electric 3-Light Vanity Fixture (model 52056). Before beginning, ensure you have the necessary tools and that the power is completely disconnected at the main circuit breaker or fuse box. The fixture requires three E26 base bulbs, with a maximum of 60 watts each.
Safety Precautions
Electrical work carries risks. Always follow these safety guidelines:
- Turn off the power at the main breaker or fuse box before starting any work.
- Use a voltage tester to ensure the circuit is not live.
- If you are unsure about electrical wiring, consult a qualified electrician.
- Ensure the electrical system is properly grounded.
- Keep fire extinguishers accessible in the workshop or basement area.
Installation Steps
Follow these steps to install your vanity fixture:
- Power Off: Turn the wall switch to the OFF position. Turn off the main power at the breaker panel or unscrew the fuse for the specific circuit.
- Mounting: Attach the mounting crossbar to the outlet box using the provided screws.
- Wiring: Connect the fixture wires to the house wires. Connect the ground wire to the ground screw on the crossbar. Connect the black (live) wire to the black house wire and the white (neutral) wire to the white house wire using wire connectors.
- Securing: Carefully tuck the wires into the outlet box and secure the fixture to the mounting crossbar using the mounting screws and decorative nuts.
- Bulbs: Install three E26 base bulbs (sold separately), ensuring you do not exceed 60 watts per bulb.
Cleaning and Maintenance
To clean your lamp, first turn off the switch or power source. Wipe the fixture with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Practical help
Common problems
Fixture does not turn on
Verify that the circuit breaker is on and the bulbs are securely screwed into the sockets.
Unsure about wiring connections
If you are not comfortable with electrical wiring, contact a qualified electrician to perform the installation.
Before use
- Turn off power at the main breaker or fuse box
- Verify the mounting surface is stable
- Ensure you have three E26 base bulbs
- Check that all wire connections are secure
Show more Show less
Images and diagrams

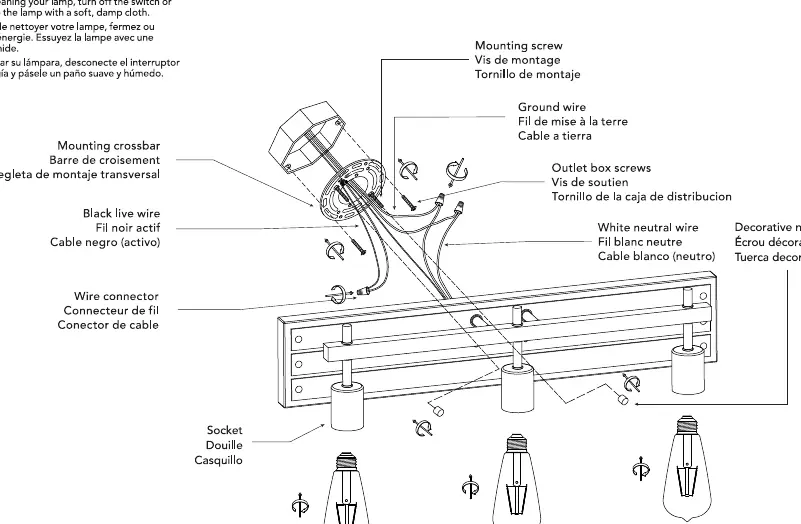

- The wiring diagram illustrates the mounting crossbar, ground wire, black (live) wire, white (neutral) wire, and the decorative nuts used to secure the fixture.
