User Guide for Goal Zero Boulder 200 Briefcase Solar Panel
A comprehensive user guide for the Goal Zero Boulder 200 Briefcase solar panel. Includes setup instructions, chaining procedures, technical specifications, and usage tips for charging Yeti power stations.
Quick answers from the manual
Quick answer
- The Boulder 200 Briefcase is a 200W portable solar panel designed to charge Goal Zero Yeti power stations via an APP connector. p. 3
Key actions
- Connect to Yeti p. 2
- Chain multiple panels p. 4
Problems and fixes
Waterproofing
The panel is weather-resistant, but the connected power station must be kept dry.
p. 4Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Power | 200W | Maximum power output | p. 4 |
| Weight | 42 lbs (19 kg) | Total weight of the unit | p. 4 |
Where to find it in the PDF
- Getting to Know Your Gear p. 2
- Technical Specifications p. 4
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Boulder 200 Briefcase is a portable solar panel designed to charge Goal Zero Yeti power stations. For the best solar charging experience, reposition the panel throughout the day to ensure it faces the sun directly. Always verify the input specifications of the device you are connecting to the panel.
Getting to Know Your Gear
The panel features a built-in kickstand for easy positioning on the ground. On the back of the panel, you will find a junction box equipped with an APP connector, which is used to output power to your portable power station.
Connecting Your Device
To charge your equipment, plug the APP connector from the solar panel directly into the input port of your Goal Zero Yeti power station. Ensure the connection is secure.
Chaining Panels
If you need to chain multiple Boulder 200 Briefcases together, or if your total configuration exceeds 150W, you must purchase a specific combiner cable from Goal Zero. Please contact the Goal Zero customer solutions center for assistance in selecting the correct cable for your specific setup.
Frequently Asked Questions
- Waterproofing: The Boulder solar panels are designed to be weather-resistant. However, the power packs and power stations you are charging must be kept dry and protected from dust, rain, and snow.
- Mounting: The Boulder 200 Briefcase is not designed for permanent roof mounting. It is a portable, fold-and-go style panel. For permanent installations, consider the Boulder 50 or 100 solar panels.
- Charging Capabilities: This panel is designed for larger Goal Zero Yeti portable power stations. For smaller devices like phones, headlamps, or other USB-powered gear, use the foldable Nomad solar panels.
- Charging Time: Charging time depends on several factors, including the size of the Yeti, the size of the solar array, cloud cover, and ambient temperature.
Technical Specifications
- Rated Power: 200W
- Open Circuit Voltage: 18-22V
- Cell Type: Monocrystalline
- Ports: Anderson Powerpole (14-22V, up to 14A, 200W max)
- Weight: 42 lbs (19 kg)
- Dimensions (Folded): 40.0 x 26.75 x 3.5 in (101.6 x 70.0 x 8.9 cm)
- Dimensions (Unfolded): 40.0 x 53.5 x 1.75 in (101.6 x 140 x 4.4 cm)
Manufacturer information
Goal Zero
Practical help
Common problems
Slow charging speed
Reposition the solar panel throughout the day to ensure it is facing the sun directly.
Need to chain multiple panels
Purchase a combiner cable from Goal Zero for configurations over 150W.
Device not charging
Ensure the APP connector is securely plugged into the Yeti input port and check the Yeti's input specifications.
Before use
- Check the input specifications of your Yeti power station.
- Ensure the panel is placed in a location with direct sunlight.
- Keep the connected power station dry and protected from the elements.
- Verify you have the correct combiner cable if chaining multiple panels.
Specs in practice
- Open Circuit Voltage
- The voltage range of 18-22V provided by the panel.
- Anderson Powerpole
- The standard connector type used for high-current power connections.
Images and diagrams

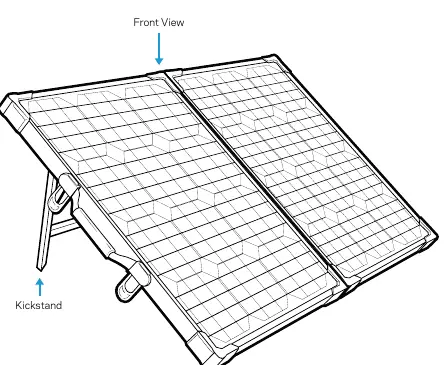

- Front View: Shows the solar panel with the kickstand deployed.
- Back View: Shows the junction box location and the APP connector cable.
Model compatibility
- Designed for Goal Zero Yeti Portable Power Stations.
- Not suitable for permanent roof mounting.
- Use Nomad panels for smaller USB devices.
