The Greenworks 2101602CT is a 40V cordless string trimmer designed for cutting grass, light weeds, and similar vegetation at ground level. This manual provides essential instructions for safe operation, assembly, and maintenance. Always wear ANSI Z87.1 compliant safety glasses with side shields when operating the tool.
Installation
Before using the machine, ensure all parts are present and undamaged.
- Attach the guard: Remove screws from the trimmer head, place the guard, align screw holes, and tighten the screws. Do not touch the cut-off blade.
- Assemble the shaft: Loosen the knob on the coupler, push the release button on the lower shaft, align it with the positioning hole, slide the shafts together, and tighten the knob.
- Attach the auxiliary handle: Press the handle onto the upper shaft, slide it over the metal ring, align the holes, and tighten with the knob.
- Install the battery: Align the ribs on the battery pack with the grooves in the battery compartment and push until it clicks into place.
Operation
Starting and Stopping: Push the lock-out button and pull the trigger to start. Release the trigger to stop.
Adjusting the cutting line: The machine features an auto-feed head. If the line does not advance automatically, release the trigger, wait two seconds, and push the trigger again. For manual adjustment, stop the machine, remove the battery, push the spool retainer button, and pull the cutting line.
Maintenance
Regular maintenance ensures optimal performance and safety.
- Cleaning: Clean the machine after use with a moist cloth and neutral detergent. Keep air vents free of debris. Do not spray water on the motor.
- Replace the spool: Push the tabs on the sides of the trimmer head, remove the cover, remove the old spool, and insert the new one. Ensure the line is in the slot before installing.
- Replace the cutting line: Cut two pieces of 0.065" (1.65 mm) nylon line approximately 3m long. Bend one end, insert into anchor holes, and wind tightly in the indicated direction.
Troubleshooting
If the machine does not start, check the battery connection and charge level. If the machine stops while cutting, it may be overloaded or grass may be wound around the shaft; remove the battery and clear the obstruction. If the line breaks frequently, ensure you are cutting with the tip of the line and avoiding hard objects like stones or walls.
Manufacturer information
Greenworks
Practical help
Common problems
Machine does not start
Check battery connection, charge the battery, or ensure the lock-out button and trigger are pressed simultaneously.
Machine stops while cutting
Remove grass from the motor shaft, check for motor overload, or allow the battery/machine to cool down.
Line does not advance
Lubricate with silicone spray, install more line, or untangle the spool.
Before use
- Wear ANSI Z87.1 compliant safety glasses
- Ensure the guard is properly attached
- Check for damaged parts
- Ensure the battery is fully charged
- Clear the work area of bystanders and pets
Show more Show less
Specs in practice
- Cutting path diameter
- 12 inches (305 mm)
Images and diagrams

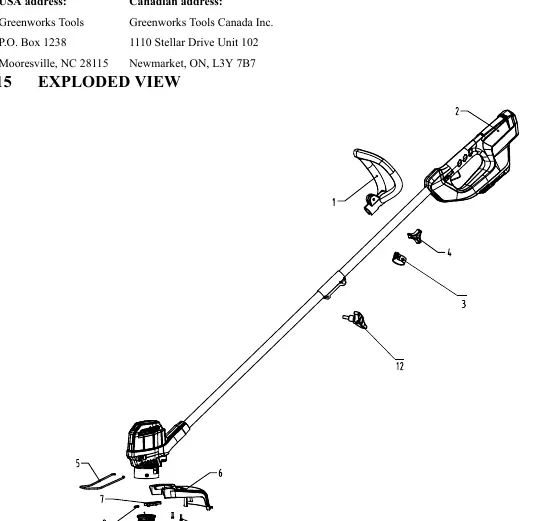

- The exploded view diagram on page 13 identifies all components including the auxiliary handle, shaft, spool, and guard for repair and parts replacement.
Model compatibility
- Use only Greenworks 29662/29652 or BAF series batteries.
- Use only Greenworks 29692 or CAF series chargers.
- Use only 0.065 inch (1.65 mm) diameter nylon cutting line.
