Hager 80161773 Push-button 1gang Data Sheet
Technical specifications and installation details for the Hager 80161773 1-gang push-button with RGB LED and internal temperature sensor. Includes dimensions, electrical requirements, and functional features.
Table of contents

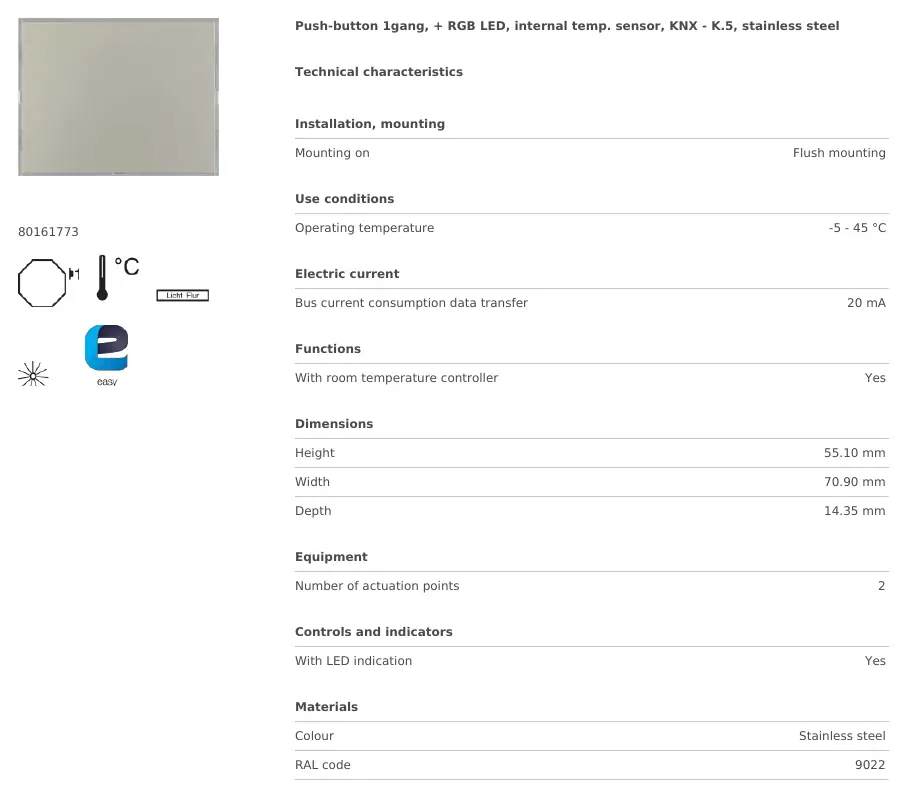

Manual images
Click an image to enlargeKey Information
The Hager 80161773 is a 1-gang push-button designed for KNX systems. It features an integrated RGB LED for status indication and an internal temperature sensor. This device is intended for flush mounting and is constructed from stainless steel and thermoplastic materials.
Technical Specifications
- Model: 80161773
- Mounting: Flush mounting
- Operating Temperature: -5 to 45 °C
- Bus Current Consumption: 20 mA
- Dimensions: 55.10 mm (Height) x 70.90 mm (Width) x 14.35 mm (Depth)
- Material: Stainless steel, Thermoplastic
- RAL Code: 9022
- Surface Finish: Mat
Features and Functions
This device offers several integrated functions for smart home control:
- Room Temperature Controller: Includes an integrated temperature sensor that outputs measured values via object and can operate as a controller extension unit.
- Manual Control: Supports manual interruption of automatic functions already triggered.
- LED Indication: Equipped with RGB LED for visual feedback.
- Labelling: Includes a labelling field for identification.
- Protection: Features dismantling protection to prevent unauthorized removal.
Installation and Use
The device is designed for flush mounting. Ensure the installation environment remains within the specified operating temperature range of -5 to 45 °C. The device requires a connection to the KNX bus with a current consumption of 20 mA for data transfer.
Manufacturer information
Hager Group
Practical help
Common problems
Device not communicating on KNX bus
Verify that the bus current consumption does not exceed the available power and that the 20 mA requirement is met.
Temperature readings inaccurate
Ensure the device is installed in a location free from direct drafts or heat sources that could interfere with the internal sensor.
Before use
- Verify KNX bus compatibility
- Ensure a flush mounting box is available for installation
- Confirm the operating environment is between -5 °C and 45 °C
- Check that the bus power supply can provide the required 20 mA
Specs in practice
- Bus current consumption
- The amount of electrical current (20 mA) the device draws from the KNX bus for operation.
- Flush mounting
- The device is designed to be installed inside a wall box, sitting flush with the surface.
- Dismantling protection
- A mechanical feature designed to prevent the device from being easily removed from the wall.
Model compatibility
- Designed for KNX systems.
- Functions as a controller extension unit.
