User Manual for Hama Fabric 10 10000mAh Power Pack
Quick guide for the Hama Fabric 10 10000mAh Power Pack. Learn how to charge the power bank, connect your devices, and understand the LED status indicators.
Table of contents
Quick guide from the manual
This document provides essential operating instructions for the Hama Fabric 10 Power Pack. Please ensure the device is fully charged before its first use.
Operation
Charging the Power Pack
To charge the power pack, connect the included USB-C cable to the power pack's USB-C (IN 5V/3A) port and a suitable USB charger. Charging begins and ends automatically.
Charging terminal devices
Connect your terminal device to the USB-A (OUT 5V/2.4A) or USB-C (OUT 5V/3A) port. The power pack will automatically recognize the device and supply the optimal current. Do not use both outputs simultaneously, as this significantly reduces charging current and increases charging time.
LED Status Indicators
- Each status LED corresponds to 25% of the total capacity.
- If all four LEDs are illuminated, the power pack is fully charged.
- Press the button on the power pack to check the current capacity.
- Press the button twice to switch the power pack off.
Safety Notes
- Do not charge the power pack using a PC or notebook, as charging currents can damage the USB port.
- Do not charge and discharge the power pack simultaneously.
- Do not use damaged charging devices or cables.
- Keep the product out of the reach of children.
- Do not expose the product to extreme temperatures or moisture.
Care and Maintenance
Clean this product only with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
Manufacturer information
Hama GmbH & Co KG
Practical help
Common problems
Charging is slow
Do not use the USB and USB-C outputs simultaneously, as this reduces the charging current.
Device not charging
Ensure the total power consumption of the connected device does not exceed 3000 mA.
Before use
- Charge the Power Pack fully before first use.
- Check if your terminal device is compatible with the power output.
- Use the provided USB-C cable for charging the power pack.
- Ensure the power pack is not being charged and discharged at the same time.
Images and diagrams

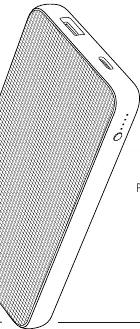

- The power pack features a button to check capacity and switch the device off.
- Status LEDs indicate the remaining battery capacity in 25% increments.
Model compatibility
- Compatible with most smartphones and devices charged via USB-A or USB-C.
- Ensure the connected device does not exceed 3000 mA total power consumption.
