Installation and User Guide for Hansgrohe Talis S2 Variarc Kitchen Mixer
Quick guide for the Hansgrohe Talis S2 Variarc kitchen mixer (models 14870XXX, 14875XXX). Includes installation steps, technical specifications, hot water limiter adjustment, and safety instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential installation and operation instructions for the Hansgrohe Talis S2 Variarc kitchen mixer (models 14870XXX and 14875XXX). It is intended for professional installers and users. Key requirements include wearing gloves during installation to prevent injury and balancing pressure differences between hot and cold water supplies.
Safety and Installation
- Safety: Wear gloves during installation to avoid crushing or cutting injuries.
- Pressure: Large pressure differences between hot and cold water supplies must be balanced.
- Appliance Connection: Only dishwashers or washing machines with the DVGW mark may be connected to the appliance valve without additional safety measures. If no appliance is connected, the valve must be plugged.
- Installation: The fitting must be installed, flushed, and tested according to valid norms. Do not use acetic acid-containing silicone.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 80°C
- Recommended hot water temperature: 65°C
- Flow rate at 0.3 MPa: 10 l/min
Hansgrohe mixers can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.
Operation and Adjustments
The mixer is operated via a single lever. To adjust the hot water limiter, follow the procedure on page 23. Note that if the mixer is used in combination with a continuous flow water heater, the hot water limiter is not necessary.
Maintenance
For cleaning, refer to the enclosed brochure. Spare parts are available; refer to the exploded view on page 22 for part identification.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
High pressure difference between hot and cold water
The pressure differences must be balanced.
Hot water temperature too high or needs adjustment
Adjust the hot water limiter on the single-lever mixer (see page 23).
Appliance valve not in use
If no dishwasher or washing machine is connected, the valve must be plugged.
Before use
- Ensure hot and cold water pressures are balanced.
- Check that the installation area is clean and prepared.
- Verify that the continuous flow heater (if used) is compatible (min. 0.15 MPa flow pressure).
- Ensure only DVGW-certified appliances are connected to the appliance valve.
- Use appropriate tools (SW 10 mm and SW 19 mm wrenches).
Specs in practice
- Operating pressure
- The maximum pressure the mixer can withstand (1 MPa).
- Recommended operating pressure
- The optimal pressure range for best performance (0.1 - 0.5 MPa).
Images and diagrams

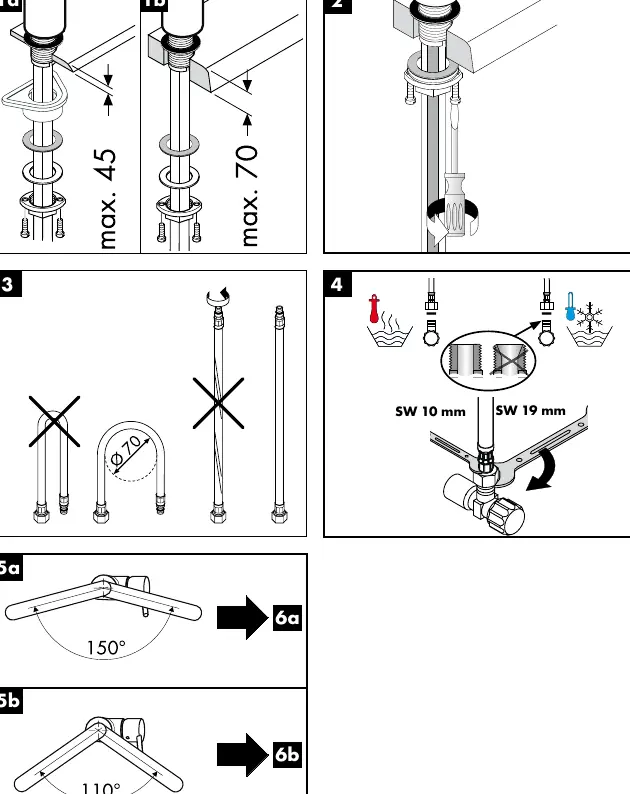

- Page 17: Shows the physical installation sequence, including mounting the base and connecting the hoses.
- Page 18-19: Illustrates the swivel range adjustment (150° or 110°).

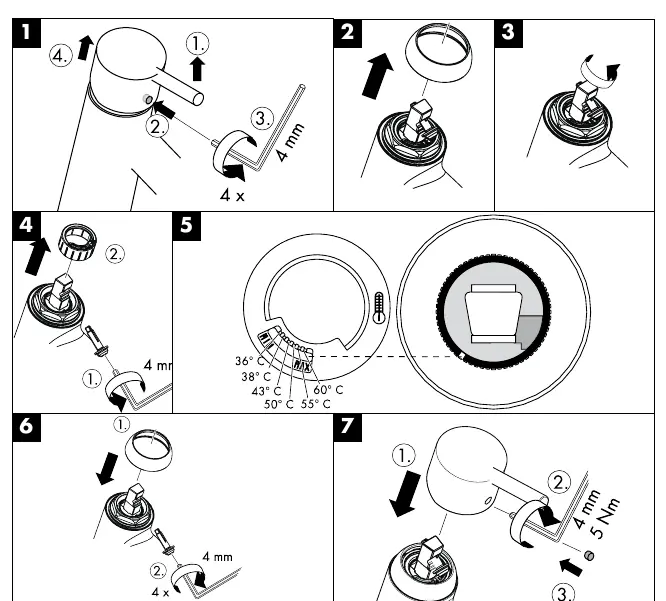

- Page 23: Details the step-by-step process for adjusting the hot water limiter.
Model compatibility
- Compatible with hydraulically and thermally controlled continuous flow heaters.
- Requires a minimum flow pressure of 0.15 MPa for use with continuous flow heaters.
- Appliance connection valve is only for DVGW-certified dishwashers or washing machines.
