Installation Guide for AXOR Urquiola 11042XXX / 11043XXX
Quick installation and usage guide for the AXOR Urquiola faucet series (11042XXX/11043XXX). Includes technical specifications, installation steps, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and usage instructions for the AXOR Urquiola faucet series (11042XXX and 11043XXX). The product is designed exclusively for drinking water. Please ensure that hot and cold water supplies have balanced pressures before installation.
Installation
Before installation, inspect the product for transport damage. Once installed, transport or surface damage claims will not be honored. Pipes and fixtures must be installed, flushed, and tested according to applicable standards. Wear gloves during installation to prevent crushing and cutting injuries.
Installation Steps
Refer to pages 33-35 for the detailed installation sequence:
- Step 1-5: Initial mounting, sealing, and pipe connection.
- Step 6-10: Final assembly, tightening, and lubrication.
- Step 11-16: Final adjustments, handle installation, and aerator maintenance.
Technical Data
The faucet is equipped with the EcoSmart (flow limiter) as standard.
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 60°C
- Thermal disinfection: 70°C / 4 min
Maintenance and Usage
EcoSmart Adjustment: If you experience problems with an instantaneous water heater or require a higher water flow, the EcoSmart flow limiter located behind the aerator can be removed.
Cleaning: Do not use silicone containing acetic acid. Hansgrohe recommends not using the first half-liter of water drawn in the morning or after a prolonged period of non-use as drinking water.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Low water flow
Remove the EcoSmart flow limiter located behind the aerator.
Water heater issues
If the instantaneous water heater causes problems, remove the EcoSmart flow limiter.
Before use
- Inspect the product for transport damage before installation.
- Ensure hot and cold water supplies have balanced pressures.
- Flush pipes according to applicable standards.
- Wear gloves during installation to prevent injury.
- Do not use silicone containing acetic acid.
Specs in practice
- Operating pressure
- Maximum pressure is 1 MPa; recommended is 0.1 - 0.5 MPa.
- Hot water temperature
- Maximum temperature is 60°C.
- Thermal disinfection
- Can be performed at 70°C for 4 minutes.
Images and diagrams

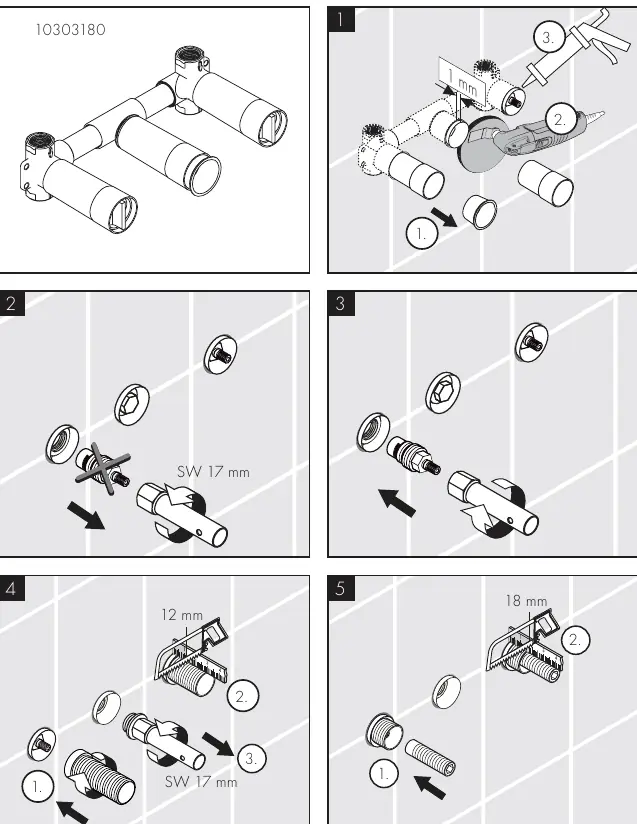

- Page 33: Initial mounting and sealing steps.

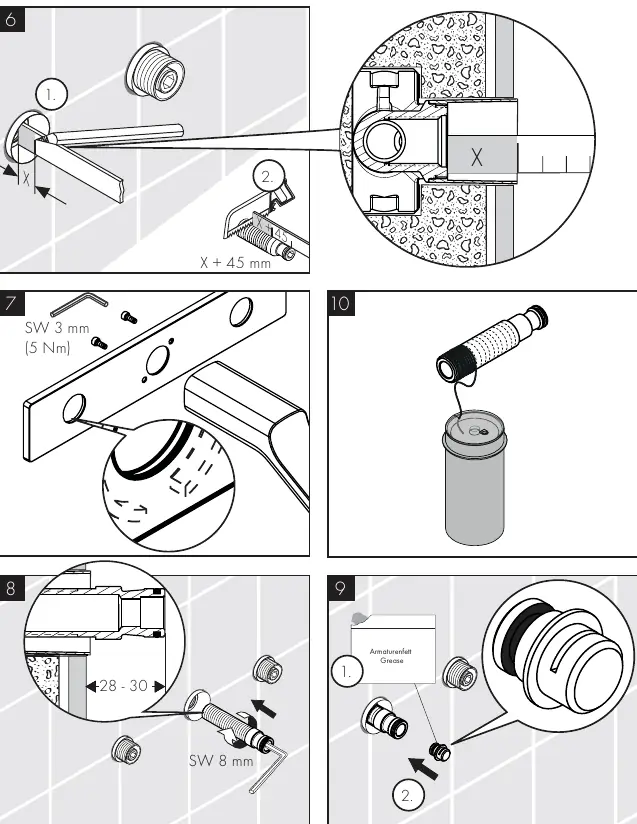

- Page 34: Final assembly and tightening steps.

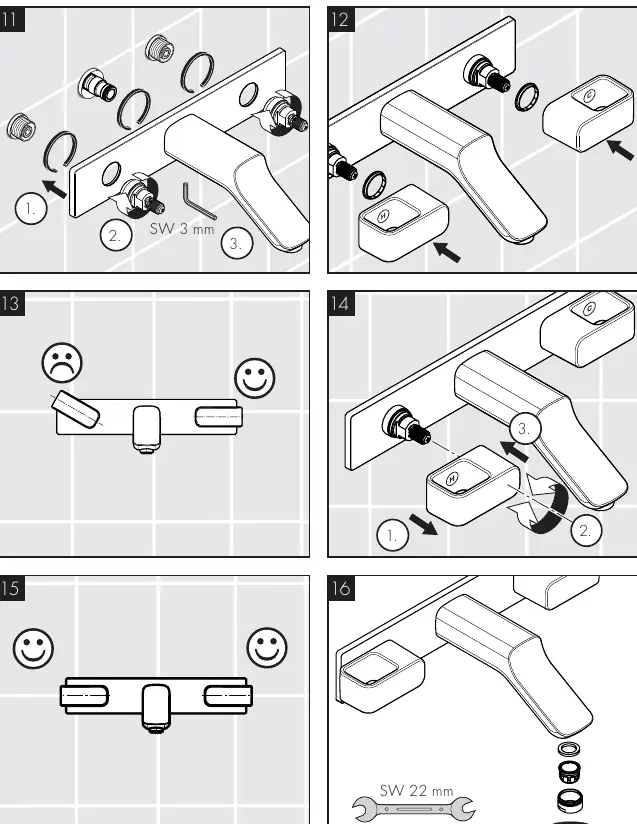

- Page 35: Final adjustments and aerator maintenance.
Model compatibility
- Designed exclusively for drinking water.
- Not compatible with semi-pedestals attached to the drain valve.
