Harbor Breeze 10958-120-1BK Solar LED Color-Changing Flood Light

Quick Guide

This solar flood light requires specific battery types and optimal placement to function correctly. Ensure you use only 18500 1000mAh LiFePO4 rechargeable batteries. The unit must be placed in an area with full, direct sunlight to ensure the battery charges properly. Avoid placing the light near other nighttime light sources, as this may prevent the automatic sensor from activating.

Safety Information

Important: Do not use alkaline, standard (carbon-zinc), or Ni-Cd (nickel cadmium) batteries. Only use LiFePO4 rechargeable batteries. Do not mix battery types. Batteries must be recycled or disposed of properly according to local regulations. Handle the ground stake with care as it has a sharp, pointed edge.

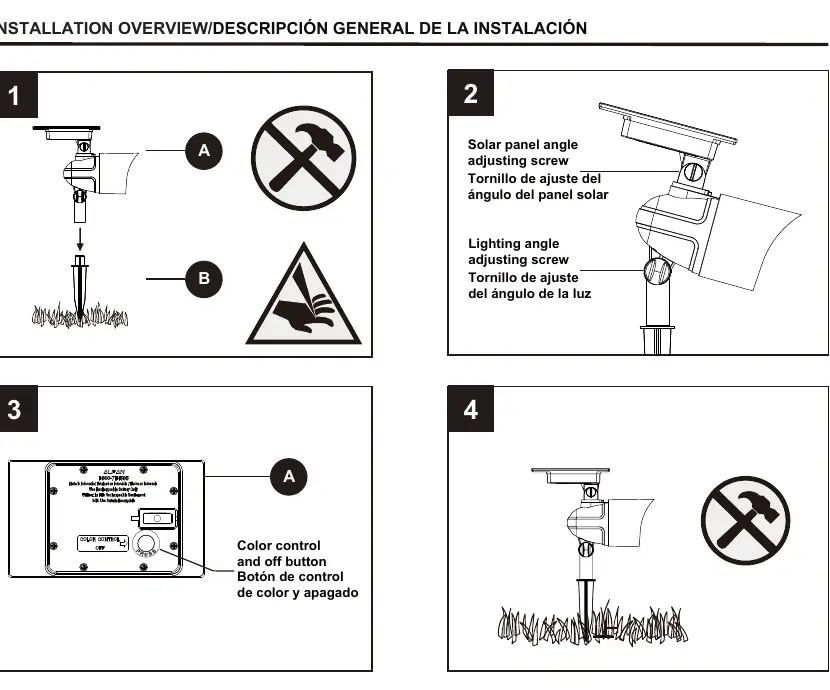

Installation Overview

Before beginning, ensure all parts are present. No tools are required for assembly.

1. Attach the ground stake to the light fixture.
2. Adjust the solar panel angle using the adjusting screw to maximize sunlight exposure.
3. Adjust the lighting angle using the adjusting screw to direct the light as needed.
4. Use the color control and off button to select your desired lighting mode.

Care & Maintenance

To keep the light functioning optimally:

• Clean the solar panel regularly with a damp cloth. Do not use chemicals or abrasives.
• Keep the solar panel free of snow, dirt, and debris.
• If relocating the light, carefully detach it from the ground.
• Remove batteries if the light will not be used for an extended period.

Troubleshooting

If the light stops working or operates for a short duration:

• Battery not charged: Place the unit in direct sunlight for three sunny days.
• Insufficient sunlight: Move the light to a sunnier location.
• Light sensor interference: Ensure the solar top housing is not under any direct light source (like street or porch lights) when testing.
• Weak battery: Replace the battery with a new 18500 1000mAh LiFePO4 battery.
