HiKOKI UL 18DF Cordless Cooler and Warmer User Manual
Comprehensive user guide for the HiKOKI UL 18DF Cordless Cooler and Warmer. Includes setup, operation, power source options, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The HiKOKI UL 18DF is a cordless cooler and warmer box powered by 18V batteries, 12V car sockets, or 230V mains. It features ECO and MAX modes for temperature control. p. 7, 9, 10
Key actions
- Install carry handle p. 9
First start
- Check for damage, ensure correct voltage, install RCD, and clean before first use. p. 9
Problems and fixes
Device does not work
Check plug/battery insertion, battery charge, vehicle ignition, and power switch settings.
p. 10Maintenance and reset
- Clean the interior with water and dishwashing liquid. Vacuum or brush ventilation slots. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 24 L | Internal volume | p. 7 |
Where to find it in the PDF
- Overview p. 2
- Specifications p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The HiKOKI UL 18DF is a versatile cordless cooler and warmer box designed for private use in camping, vehicles, or similar environments. It can be powered by an 18V battery, a 12V vehicle cigarette lighter socket, or 230V mains power (using the provided AC adapter).
Device Overview
The device features a rotary knob for power control, an operating mode switch (warm/cold), and a 24L capacity container. It is equipped with ventilation slots to ensure proper air circulation.
Setup and Installation
- Carry Handle: Insert the carry handle at the indicated angle, first on one side by inserting the nose into the rectangular opening, then on the other side while pulling the handle slightly apart.
- Power Connection: Ensure the power cord is not pinched or damaged during setup. Do not position the unit directly in front of power outlets.
Operation
The device is not intended for continuous operation; the maximum operating time is 6 days. After this, switch off the device for at least 2 hours.
- Power Supply: Select the power source using the switch. For 12V vehicle use, unwind the cable completely and plug it into the cigarette lighter socket. For mains, use the provided AC adapter.
- Mode Selection: Use the operating mode switch to select between cooling and warming.
- Power Adjustment: Turn the rotary knob clockwise to switch on and increase power, or counter-clockwise to reduce power and switch off.
Energy Saving Tips
- Do not expose the device to direct sunlight.
- In cooling mode, use already cooled food and beverages.
- Do not open the lid longer than necessary and close it completely.
- Ensure air can circulate between food items.
Maintenance and Inspection
Danger: Always disconnect the device from the power supply and remove the battery before maintenance.
- Cleaning: Wipe the exterior with a soft, dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline, or paint thinner. Clean the interior with water and dishwashing liquid.
- Storage: Store in a place with a temperature below 40°C and out of reach of children. Ensure batteries are fully charged before long-term storage.
Manufacturer information
HiKOKI
Practical help
Common problems
Device does not work
Check if the plug or battery is inserted fully. If using battery power, check the charge status. If using 12V, ensure the vehicle ignition is on. Ensure the device is switched on via the rotary knob and mode switch.
Device does not cool/warm properly
Ensure ventilation slots are not covered. Increase power using the rotary knob. Move the device to a cooler location (for cooling mode).
Before use
- Check device for damage
- Ensure mains voltage matches the type plate
- Install an RCD (max 30mA) for mains connection
- Clean the device before first use
Specs in practice
- Power Sources
- 18V Battery, 12V DC, 230V AC
Images and diagrams

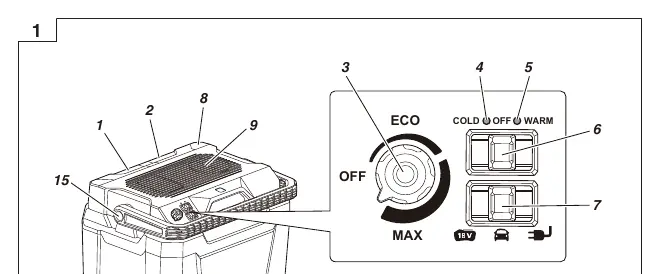

- Fig 1: Overview of parts and controls
- Fig 2: Battery removal and insertion
- Fig 3: Charging process
- Fig 4: Carry handle installation
- Fig 5: Opening and closing the lid
Model compatibility
- Compatible with HiKOKI BSL18 series batteries
- Not intended for continuous operation (max 6 days)
