Instruction Manual for HiKOKI M 18DYA Cordless Cut Out Tool
Comprehensive user guide for the HiKOKI M 18DYA Cordless Cut Out Tool. Includes safety instructions, battery and charger operation, bit installation, depth adjustment, and maintenance procedures.
Quick answers from the manual
Quick answer
- The HiKOKI M 18DYA is a cordless cut-out tool for gypsum board. It uses an 18V Li-ion battery and features a brushless motor, adjustable depth guide, and overload protection. p. 9, 10
Key actions
- Install the battery by aligning it with the groove and sliding it until it clicks. p. 11
- Install the bit by pressing the lock button, loosening the collet nut with the wrench, inserting the bit, and tightening the nut. p. 13
First start
- Ensure the switch is OFF, install the battery, adjust the depth guide, and turn the switch to the ON position. p. 13, 14
Problems and fixes
Motor stops due to overload
Release the switch, remove the cause of the overload, and restart the tool.
p. 14, 15Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| LED blinks (0.1s on/0.1s off) | Overload Protection | Remove the cause of the overloading. | p. 15 |
| LED blinks (0.5s on/0.5s off) | Temperature Protection | Allow the tool and battery to thoroughly cool. | p. 15 |
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor | DC brushless motor | Type of motor used in the tool. | p. 10 |
| No-load speed | 28,000 /min | Rotational speed without load. | p. 10 |
Where to find it in the PDF
- Safety Instructions p. 2, 3, 4, 5
- Functional Description p. 9
- Specifications p. 10
- Assembly and Operation p. 11, 12, 13, 14
- Maintenance and Inspection p. 16, 17
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The HiKOKI M 18DYA is a cordless cut-out tool designed for cutting gypsum board. Before operation, ensure the battery is charged and the bit is correctly installed. Always wear eye protection and keep hands away from rotating parts. If the tool stops during operation, it may be due to the overload or temperature protection function; release the switch and remove the cause of the overload.
Safety instructions
- General: Read all safety warnings and instructions. Failure to follow them may result in electric shock, fire, or serious injury.
- Work area: Keep the area clean and well-lit. Do not operate in explosive atmospheres.
- Electrical: Do not expose the tool to rain or wet conditions.
- Personal: Always wear eye protection. Do not wear loose clothing or jewelry.
- Battery/Charger: Use only the specified charger (UC18YFSL) and battery (BSL1830C). Do not short-circuit terminals.
Functional description
The tool features a brushless motor, a collet system for 1/8" and 1/4" bits, a depth guide for controlled cutting, and an LED light for visibility. The battery mount includes terminals that must be kept free of swarf and dust.
Assembly and operation
- Battery: Align the battery with the groove in the head cover and slide it until it clicks into place. To remove, press the latches.
- Bit installation: Press the lock button to secure the shaft, then use the included wrench to loosen the collet nut. Insert the bit and tighten the nut firmly.
- Depth adjustment: Loosen the knob bolt and slide the depth guide to the desired position. The bit tip should protrude at least 3 mm from the material.
- Operation: Press the 'I' side of the switch to turn ON and the 'O' side to turn OFF. The LED light activates automatically when the tool is turned on.
Maintenance and inspection
- Bit: Replace dull or damaged bits immediately to prevent motor overload.
- Cleaning: Use an air gun to remove dust and chips from the body and battery terminals. Do not use bleach, gasoline, or thinners.
- Screws: Regularly inspect and tighten all screws.
- Storage: Store in a place below 104°F (40°C) and out of reach of children.
Technical specifications
- Model: M 18DYA
- Motor: DC brushless motor
- Collet capacity: 1/8" (3.18 mm)
- No-load speed: 28,000 /min
- Battery: Li-ion BSL1830C (18V)
Manufacturer information
HiKOKI
Practical help
Common problems
Motor stops during operation
The tool is likely overloaded or the battery is depleted. Release the switch, eliminate the cause of the overload, and restart.
LED light blinks
This indicates a safeguard function. Check Table 5 in the manual for specific blink patterns (Overload or Temperature protection) and follow the corrective action.
Battery not charging
Check if the battery is overheated (let it cool) or if there is a malfunction in the battery or charger (check for foreign objects in the connector).
Before use
- Ensure the work area is clear of debris and clutter.
- Verify the switch is in the OFF position before inserting the battery.
- Check that the bit is sharp and correctly installed.
- Ensure the depth guide is securely attached and adjusted.
- Wear appropriate personal protective equipment (eye protection, ear protection).
Specs in practice
- No-load speed
- 28,000 /min; the rotational speed of the tool when not cutting material.
- Collet chuck capacity
- 1/8" (3.18 mm); the size of the bit shank the tool can accept.
- Charging time
- Approximately 45 minutes for the BSL1830C battery using the UC18YFSL charger.
Images and diagrams

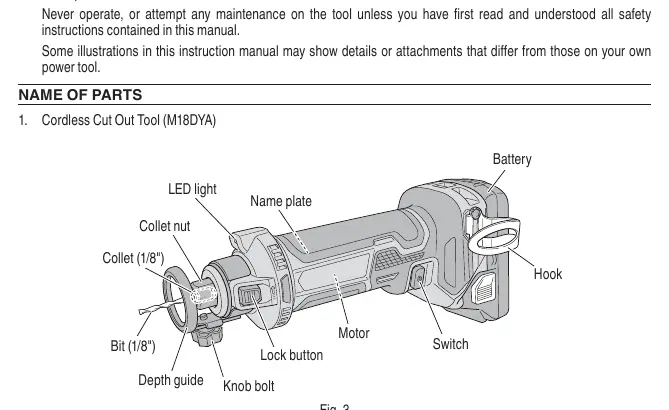

- Fig. 3: Overview of tool parts including lock button, collet, and depth guide.
- Fig. 6: Battery removal and installation procedure.
- Fig. 9: Bit installation using the lock button and wrench.
- Fig. 14: Recommended feed direction for inner and outer peripheral cutting.
Model compatibility
- Use only genuine Metabo HPT batteries (BSL1830C).
- Use only the specified charger (UC18YFSL).
