User Manual for HiKOKI CV 14DBL / CV 18DBL Cordless Multi-Tool
Quick guide for the HiKOKI CV 14DBL and CV 18DBL Cordless Multi-Tool. Includes safety instructions, operating modes (Standard/AUTO), battery charging, and maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This cordless multi-tool is designed for flush cutting, pocket cutting, peeling tiles, and polishing wood. It features two operating modes: Standard and AUTO. Always ensure the battery is charged before use and follow all safety precautions.
Safety Warnings
General Power Tool Safety: Keep work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away. Use personal protective equipment, including eye protection.
Cordless Multi Tool Safety: Hold the tool by insulated gripping surfaces when cutting near hidden wiring. Always hold the tool firmly with one hand on the housing. Ensure the area to be cut is free of hidden obstructions like electrical, water, or gas pipes.
Applications
- Flush cutting and pocket cutting of various materials
- Peeling of tiles, caulking, etc.
- Polishing wood materials, etc.
Charging
Before using the tool, charge the battery using the specified charger. Connect the charger to a power source; the pilot lamp will blink in red. Insert the battery firmly. The pilot lamp will light continuously in red during charging and blink when charging is complete. If the lamp blinks in other patterns, refer to the pilot lamp indication table in the manual.
Mounting and Operation
Standard Mode: Adjust the dial from 1 to 5 to change the vibration frequency between 6000 and 20000 min-1.
AUTO Mode: Set the dial to 'A'. The tool automatically adjusts the vibration frequency between 15000 min-1 and 20000 min-1 based on the workload, reducing vibration and noise.
Maintenance and Inspection
Regularly inspect the application tool for dullness or damage and replace it if necessary. Check all mounting screws to ensure they are properly tightened. Keep the motor unit clean and free of oil or water. Store the tool in a place where the temperature is less than 40°C and out of reach of children.
Manufacturer information
HiKOKI
Practical help
Common problems
Motor stops during use
Check if the battery is empty or if the tool is overloaded. Release the switch and eliminate the cause of the overload.
Battery will not charge
Check for foreign objects in the charger or battery connector. If none are found, the battery or charger may be malfunctioning.
Before use
- Ensure the battery is fully charged
- Check that the application tool is securely mounted
- Verify the work area is free of hidden obstructions
- Wear appropriate personal protective equipment (eye protection)
Specs in practice
- Oscillation angle
- Total angle (left/right) of oscillation.
- Vibration frequency
- The speed of oscillation, adjustable between 6000 and 20000 min-1.
Images and diagrams
- Fig 1: Battery removal and insertion
- Fig 2: Charging the battery

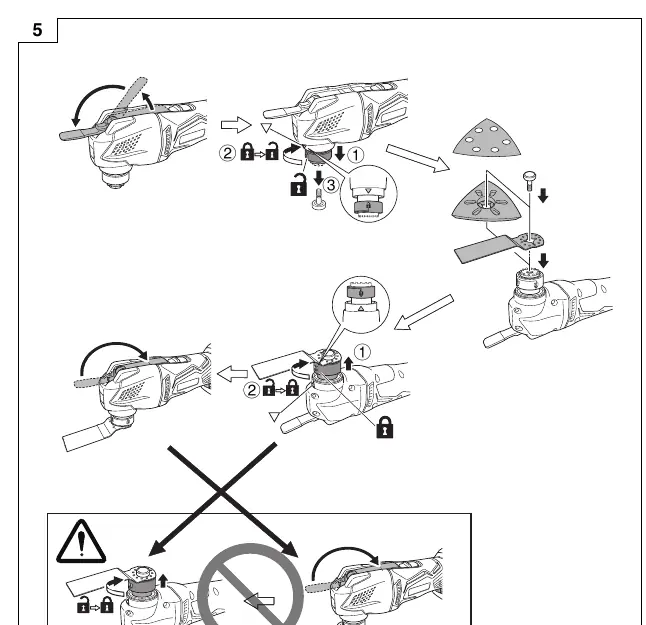

- Fig 5: Mounting the application tool
- Fig 6: Switch operation
- Fig 7: Adjusting operating speed
Model compatibility
- Use only designated genuine HiKOKI batteries.
