User Manual for HiKOKI UB 18DD Cordless Work Light
Quick guide for the HiKOKI UB 18DD Cordless Work Light. Includes setup, operation, safety warnings, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The HiKOKI UB 18DD is a cordless work light designed for illuminating work sites. It can be powered by a compatible HiKOKI battery or an AC cord. It features adjustable brightness and a USB charging port for external devices.
Safety Warnings
- General: Do not look directly into the light, do not cover the light when in use, and keep at least 50 cm away from the illuminated object.
- Battery: Use only designated rechargeable batteries. Do not short-circuit terminals. Avoid high temperatures and moisture.
- IP65 Rating: The product is dust-resistant and water-resistant. Ensure all covers (battery, AC socket, USB port) are closed properly to maintain this rating.
Operation
- Battery Installation: Insert the battery firmly into the tool.
- AC Power: Pull back the rubber cover and insert the AC cord plug fully into the socket. The lock ring secures the connection.
- Brightness Adjustment: Use the adjustment dial to control the light intensity.
- Tripod Mounting: The light can be mounted on a tripod using the 5/8-UNC screw hole. If the tripod screw is less than 20 mm, use the included adapter.
- USB Charging: Use the USB port to charge devices. Note that the AC cord power source takes priority if both battery and AC are connected.
Maintenance and Inspection
- Cleaning: Wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline, or paint thinner.
- Storage: Store in a place where the temperature is less than 40°C and out of reach of children.
- Terminals: Keep terminals free of swarf and dust to prevent short circuits.
Specifications
- Voltage: 18 V
- Brightness: 1000–10000 lm
- Weight: 4.7 kg (with BSL1830C and AC cord) / 5.3 kg (with BSL36B18 and AC cord)
Manufacturer information
HiKOKI
Practical help
Common problems
Light does not turn on
Check if the battery is charged, if the tool is overloaded, or if the battery is overheated. If overloaded or overheated, release the switch and allow the battery to cool.
USB device not charging
Ensure the battery is sufficiently charged. If the battery charge capacity is low, the work light cannot charge USB devices.
Before use
- Charge the battery fully before first use.
- Check that the battery terminals are free of swarf and dust.
- Ensure the AC cord is in good condition if using AC power.
- Verify the work light is placed on a stable surface or securely mounted on a tripod.
- Ensure all rubber covers (USB, AC socket) are closed if not in use.
Specs in practice
- 1000-10000 lm
- Adjustable brightness range from 1000 to 10000 lumens.
Images and diagrams

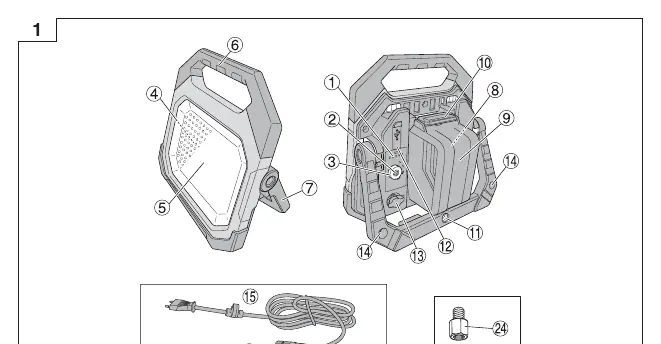

- Fig 1: Overview of parts including battery level indicator, switch, and adjustment dial.

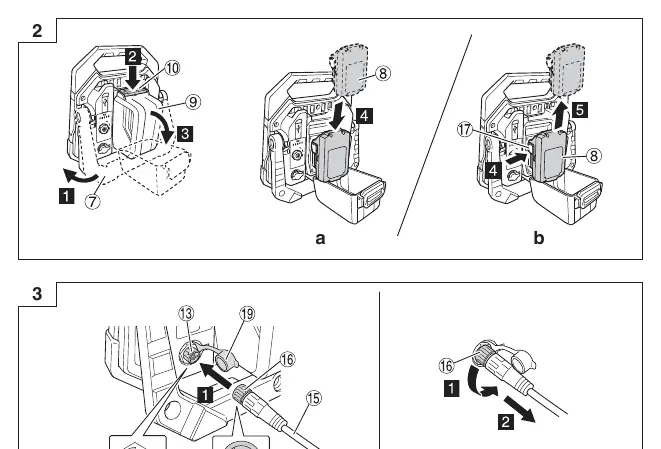

- Fig 2: Battery insertion and removal procedure.
- Fig 3: AC cord connection and removal.

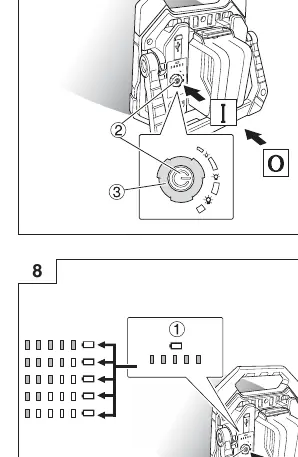

- Fig 6: Power switch operation and brightness adjustment.
- Fig 7: Tripod mounting instructions.
Model compatibility
- Compatible with HiKOKI Multi Volt and BSL18 series batteries.
- Existing batteries (BSL3660/3620/3626, etc.) cannot be used with this tool.
