User Manual for HiKOKI G 23SWU2 Disc Grinder
Quick guide for the HiKOKI G 23SWU2 disc grinder. Includes safety instructions, assembly, operation, maintenance, and technical specifications.
PDF source: polski · summary: English
Quick answers from the manual
Quick answer
- The HiKOKI G 23SWU2 is a disc grinder designed for grinding and cutting metal, stone, and similar materials. It features soft-start and 0-voltage re-start protection. p. 5
Key actions
- Fitting and adjusting the wheel guard p. 5, 137
- Replacing carbon brushes p. 6, 138
First start
- Ensure the switch is OFF, mount the wheel, tighten the nut, confirm the push button is disengaged, and then connect to the power source. p. 4, 5
Show 4 more answers Show less
Problems and fixes
Tool does not restart after power interruption
Return the switch to OFF, wait at least 1 second, then restart.
p. 5Maintenance and reset
- Replace carbon brushes when they reach the wear limit. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Sound power level | 101 dB (A) | Measured A-weighted sound power level | p. 6 |
| Sound pressure level | 90 dB (A) | Measured A-weighted sound pressure level | p. 6 |
| Vibration emission | 5.3 m/s2 | Vibration emission value for surface grinding | p. 6 |
Where to find it in the PDF
- Safety Warnings p. 2, 3, 4
- Specifications and Operation p. 5
- Maintenance p. 6
Table of contents
Manual images
Click an image to enlargeQuick Guide
The HiKOKI G 23SWU2 is a high-performance disc grinder designed for grinding and cutting various materials, including steel, bronze, aluminum, concrete, stone, and brick. This manual provides essential safety, operation, and maintenance instructions.
Safety Warnings
General Power Tool Safety: Always keep the work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away. Ensure the power tool plug matches the outlet and do not modify it. Use personal protective equipment, including eye protection, dust masks, and hearing protection.
Grinding and Cutting-off Safety: This tool is intended for grinding or cut-off operations. Do not use accessories not specifically designed by the manufacturer. Ensure the rated speed of the accessory is at least equal to the maximum speed of the tool. Always use the provided guard and ensure it is securely attached. Do not use damaged accessories. Hold the tool by insulated gripping surfaces when performing operations where the cutting accessory may contact hidden wiring.
Kickback Warnings: Kickback is a sudden reaction to a pinched or snagged rotating wheel. Maintain a firm grip and position your body to resist kickback forces. Always use the auxiliary handle for maximum control.
Assembly and Operation
Fitting the Wheel Guard: Ensure the guard is securely attached and positioned for maximum safety. When using an abrasive cutting wheel, remove the standard wheel guard and attach the wheel guard with side guard (sold separately).
Mounting Wheels: Ensure the wheel is the correct type, free of cracks, and properly mounted with the correct flanges. Tighten the wheel nut securely.
Operation: Ensure the power switch is in the OFF position before connecting to the power source. The tool features a soft-start and 0-voltage re-start protection. If the 0-voltage re-start protection is activated, return the switch to OFF and wait at least 1 second before restarting.
Maintenance and Inspection
Carbon Brushes: The motor uses carbon brushes, which are consumable parts. Replace them when they reach or are near the wear limit. Keep brushes clean and ensure they slide freely in the holders.
Motor Maintenance: The motor winding is the heart of the tool. Ensure it does not become damaged or wet with oil or water.
Supply Cord: If the supply cord needs replacement, it must be done by a HiKOKI Authorized Service Center.
Technical Specifications
The tool is designed for a 230V power supply. It features a soft-start and 0-voltage re-start protection. Measured A-weighted sound power level is 101 dB (A), and sound pressure level is 90 dB (A). Vibration emission value for surface grinding is 5.3 m/s2.
Manufacturer information
HiKOKI
Practical help
Common problems
Excessive vibration during operation
Check if the wheel is mounted correctly, the nut is tightened, and the wheel is free of cracks or defects.
Motor performance issues
Inspect carbon brushes for wear and replace if they are near the wear limit.
Tool does not restart after a power cut
The 0-voltage re-start protection is active. Return the switch to OFF, wait at least 1 second, then restart.
Before use
- Check that the power source matches the tool's nameplate.
- Ensure the power switch is in the OFF position.
- Inspect the grinding wheel for cracks or surface defects.
- Ensure the wheel is properly mounted and the nut is securely tightened.
- Confirm the push button is disengaged by pressing it two or three times.
- Wear appropriate personal protective equipment (eye protection, dust mask, etc.).
Show more Show less
Specs in practice
- 0-Voltage Re-start Protection
- Prevents the tool from automatically restarting if the power is cut during operation.
Images and diagrams

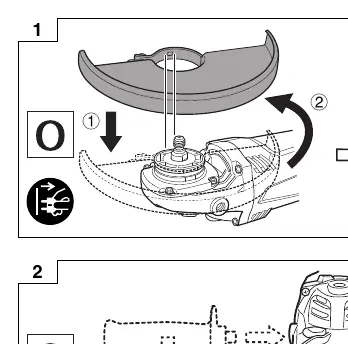

- Figure 1: Fitting and adjusting the wheel guard.

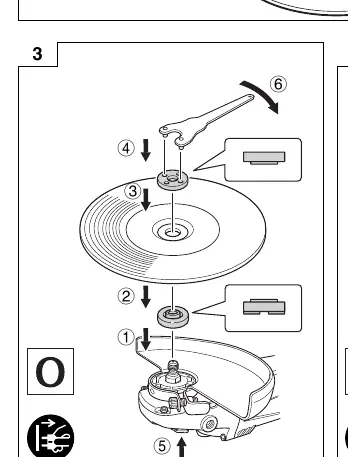

- Figure 3: Assembling the depressed center wheel.

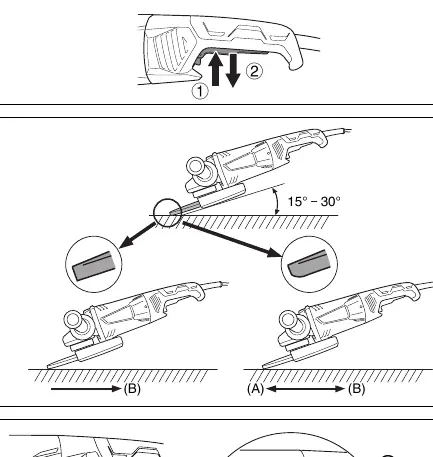

- Figure 6: Correct grinding angle and method.
- Figure 7: Inspecting and replacing carbon brushes.
Model compatibility
- Use only wheel types recommended for this power tool.
- Do not use worn-down wheels from larger power tools.
- Ensure threaded mounting of accessories matches the grinder spindle thread.
