User Manual for HiKOKI NR 1890DCA Cordless Strip Nailer
Comprehensive user manual for the HiKOKI NR 1890DCA Cordless Strip Nailer. Includes detailed instructions on battery charging, nailing operation modes, safety precautions, jam clearing, and maintenance procedures.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The HiKOKI NR 1890DCA is a cordless strip nailer designed for wood framing and construction. Before use, ensure the battery is fully charged and the correct nailing mode is selected. Always wear eye protection and keep hands away from the firing head. The tool features a brushless motor, LED light, and a dry-fire lockout mechanism.
Safety Warnings
- Eye Protection: Always wear safety goggles compliant with AS/NZS 1337.
- Trigger Safety: Keep fingers away from the trigger when not actively nailing.
- Kickback: Be aware of tool recoil; do not press against the workpiece with excessive force.
- Jam Clearing: Always remove the battery and all nails before attempting to clear a jam.
- Prohibited Use: Do not use the nailer on scaffolding or ladders. Do not use it as a hammer.
Charging the Battery
Use the UC18YSL3 charger. Insert the battery firmly. The charge indicator lamp will blink blue during charging and turn green when complete. If the lamp blinks red, check for proper insertion or overheating. Allow the charger to rest for 15 minutes between consecutive charging cycles.
Operation
The nailer features two operation modes (except for New Zealand models, which are Full Sequential only):
- Full Sequential Actuation: Press the push lever against the wood, then pull the trigger.
- Contact Actuation: Pull the trigger first, then press the push lever against the wood to drive a nail.
Trigger Lock: Always engage the trigger lock when the tool is not in use.
Depth Adjustment: If nails are driven too deep or shallow, use the adjuster on the firing head to change the depth in half-turn increments.
Maintenance and Inspection
- Cleaning: Regularly blow out the magazine and feeder mechanism to prevent jams.
- Jam Clearing: If a jam occurs, remove the battery and nails, then use the provided Torx bar wrench to remove the magazine bolts and clear the firing head.
- Storage: Store in a cool, dry place out of reach of children.
Troubleshooting
- Nailer won't turn on: Check battery charge or ensure the power switch was held for more than 1 second.
- Nailer won't fire: Ensure the push lever is pressed firmly against the workpiece and the trigger is pulled within 2 seconds of the push lever activation.
- Weak drive: Adjust the nailing depth or check battery charge.
Manufacturer information
HiKOKI
Practical help
Common problems
Nailer does not operate (Power switch ON)
Ensure the nailer is pressed firmly against the workpiece. Verify that the trigger is pulled within 2 seconds of the push lever activation. Check if the trigger lock is engaged.
Nails jam
Remove the battery and nails. Use the Torx wrench to remove the magazine bolts and clear the firing head. Ensure you are using the correct nail type.
Weak drive / Slow to cycle
Check the nailing depth adjustment. Ensure the battery is fully charged.
Before use
- Ensure all screws are tightened.
- Verify the push lever and trigger move smoothly.
- Charge the battery fully.
- Wear appropriate eye protection.
- Check that the correct nailing mode is selected.
Specs in practice
- Applicable Nail Length
- 50 mm to 90 mm paper collated strip nails.
- Nail Loading capacity
- 50 nails.
Images and diagrams

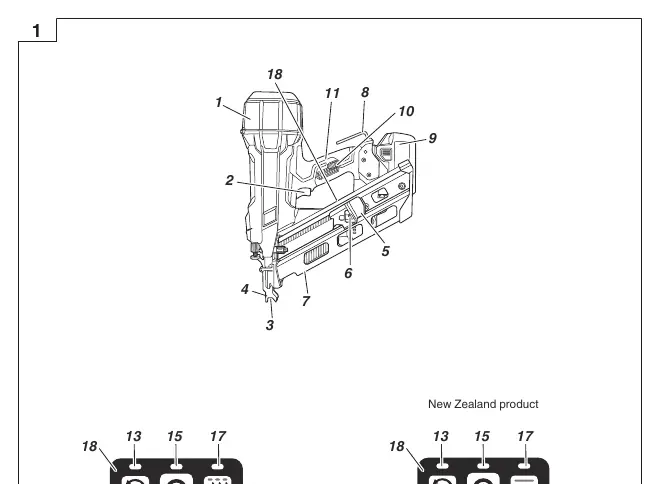

- Fig 1: Parts identification including trigger, push lever, and magazine.
- Fig 8: Power switch operation.
- Fig 10: Nailing operation mode selection.
- Fig 13: Trigger lock mechanism.
- Fig 27: Jam clearing procedure.
Model compatibility
- New Zealand models are restricted to Full Sequential Actuation only.
- Use only paper collated strip nails (30° angle).
- Not recommended for 75-90mm ring shank nails in pressure-treated lumber.
