Operating Instructions for Hilti VC 20/40-U-Y/UM-Y Vacuum Cleaner
Quick guide for the Hilti VC 20/40-U-Y/UM-Y wet/dry vacuum cleaner. Learn about setup, operation, battery charging, filter maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Hilti VC 20/40-U-Y/UM-Y is a professional wet/dry vacuum cleaner powered by mains or 36V Li-ion batteries. It features automatic filter cleaning and can be used as a charging station or transport trolley. p. 5, 6
Key actions
- Change the dust bag p. 16
- Change the filter element p. 18
- Charge batteries p. 14
First start
- Connect the suction hose, install the appropriate dust bag, and plug into a grounded outlet or insert charged batteries. p. 13, 14, 15
Problems and fixes
Warning tone activated
Dust bag is full or filter is clogged. Change bag or clean filter.
p. 19, 20Maintenance and reset
- Automatic filter cleaning is active by default. It can be toggled using the button (16). p. 16
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated power input | 1,200 W | Power consumption when connected to mains. | p. 9 |
| Container capacity | 21 L / 36 L | Total volume of the waste container. | p. 9 |
Where to find it in the PDF

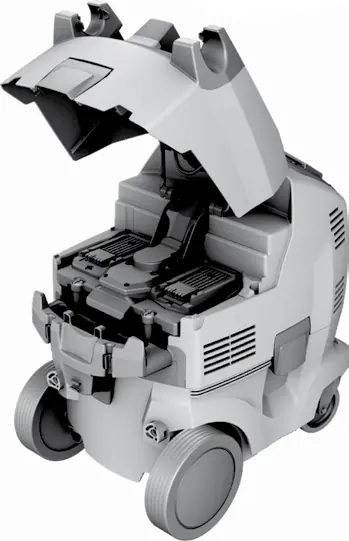

- Parts and Controls p. 2
- Technical Data p. 9, 10
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hilti VC 20/40-U-Y/UM-Y is a professional wet/dry industrial vacuum cleaner. Before first use, ensure the correct dust bag is installed for your application (paper for wood, plastic for mineral dust). The unit can be powered by mains electricity or Hilti 36V Li-ion batteries. Always ensure the filter system is installed and the hose diameter setting (on UM models) matches the hose used.
Product description
This appliance is a universal industrial vacuum cleaner with an automatic filter cleaning system. It is designed for wet and dry applications. It can also function as a charging station for Hilti Li-ion batteries (14V/22V/36V) when connected to mains power. When equipped with optional accessories (adapter plate and pushbar), it can serve as a transport trolley for Hilti toolboxes.
Safety instructions
- Class M Vacuum: Suitable for picking up dry, non-flammable dusts, wood chips, and mineral dusts containing quartz with exposure limit values ≥0.1 mg/m³.
- Hazardous Materials: Do not pick up asbestos or other hazardous substances not specified.
- Liquids: Do not pick up flammable or aggressive liquids (gasoline, solvents, acids, etc.). Do not pick up liquids over 60°C.
- PPE: Always wear appropriate protective equipment, including respiratory protection, when handling hazardous dust.
- Transport: Do not transport by crane. Empty the container before carrying.
Setup and installation
Before operating, ensure the vacuum is on a stable surface and castor brakes are engaged. Connect the suction hose to the hose socket.
Fitting dust bags
- Open the two catches and lift the top section.
- For wood chips: Push the cardboard flange of the paper dust bag into the plastic adapter and engage in the container.
- For mineral dust: Fit the plastic dust bag into the container.
- Replace the top section and close the catches.
Operation
Mains-powered: Plug into a grounded outlet and turn the control switch to ON. For power tools, use the built-in power outlet and set the switch to AUTO.
Battery-powered: Insert one or two 36V batteries. Turn the switch to ON. The built-in power outlet for tools is not available in battery mode.
Hose diameter setting (UM models): Ensure the selector switch matches the diameter of the hose being used to maintain correct M-function warning thresholds.
Care and maintenance
The appliance features an automatic filter cleaning system. Do not use compressed air or hard objects to clean the filter manually. Replace the filter at least every 6 months.
Changing the filter
- Disconnect from power and remove batteries.
- Open filter cover clips and remove the filter cover.
- Remove the filter element carefully.
- Clean the sealing surface, fit the new filter, and reassemble.
Troubleshooting
If the warning tone sounds, the dust bag may be full or the filter clogged. Check the hose for blockages. If the motor does not start, check the circuit breaker or if the container is full. For battery issues, ensure the battery is charged and correctly inserted.
Manufacturer information
Hilti Corporation
Practical help
Common problems
Warning tone sounds (reduced suction)
Check if the dust bag is full or the filter is clogged. Clean the filter or change the bag.
Motor does not restart
Check if the mains circuit breaker has tripped or if the container is full.
Dust blown out of appliance
Check if the filter is fitted correctly or if the filter seal is damaged.
Battery not detected
Remove the battery, wait 2 seconds, and re-insert it.
Before use
- Ensure the vacuum is on a stable surface with castor brakes engaged.
- Check that the correct dust bag (paper or plastic) is installed.
- Verify the filter element is clean and correctly seated.
- Check that the suction hose is securely connected.
- If using battery power, ensure batteries are fully charged.
- For UM models, set the hose diameter selector switch correctly.
Specs in practice
- Rated power input
- 1,200 W (mains) or 750 W (battery).
- Container capacity
- 21 L (VC 20) or 36 L (VC 40).
- Protection class
- IP X4 (protection against sprayed water).
Images and diagrams
- The fold-out cover pages contain numbered diagrams corresponding to parts and maintenance steps.
- Diagram 2 shows the paper dust bag installation.
- Diagram 5 illustrates the filter element removal process.
Model compatibility
- Use only Hilti 36V Li-ion batteries.
- Use only genuine Hilti accessories and spare parts.
- VC 20-UM-Y and VC 40-UM-Y require specific hose diameter settings.
