Assembly Instructions for Home Decorators Collection Grayson 23 Inch W Linen Cabinet
View the assembly instructions for the Home Decorators Collection Grayson 23 Inch W Linen Cabinet. This guide includes safety warnings, a list of required tools, step-by-step assembly for the tip restraint, and maintenance tips.
Quick answers from the manual
Quick answer
- The Grayson 23 Inch W Linen Cabinet requires assembly, specifically the installation of the tip restraint hardware. It is designed to hold 50 lbs. p. 7
Key actions
- Install tip restraint hardware p. 7
Problems and fixes
Uneven gap between the doors and cabinet
Adjust the leg levelers to ensure the linen cabinet is level or adjust the door hinges.
p. 8Show 3 more answers Show less
Maintenance and reset
- Dust frequently with a clean, soft and dry cloth. Wipe away any water or liquid spills immediately. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight Capacity | 50 lbs | Maximum load limit | p. 2 |
Where to find it in the PDF
- Assembly Instructions p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

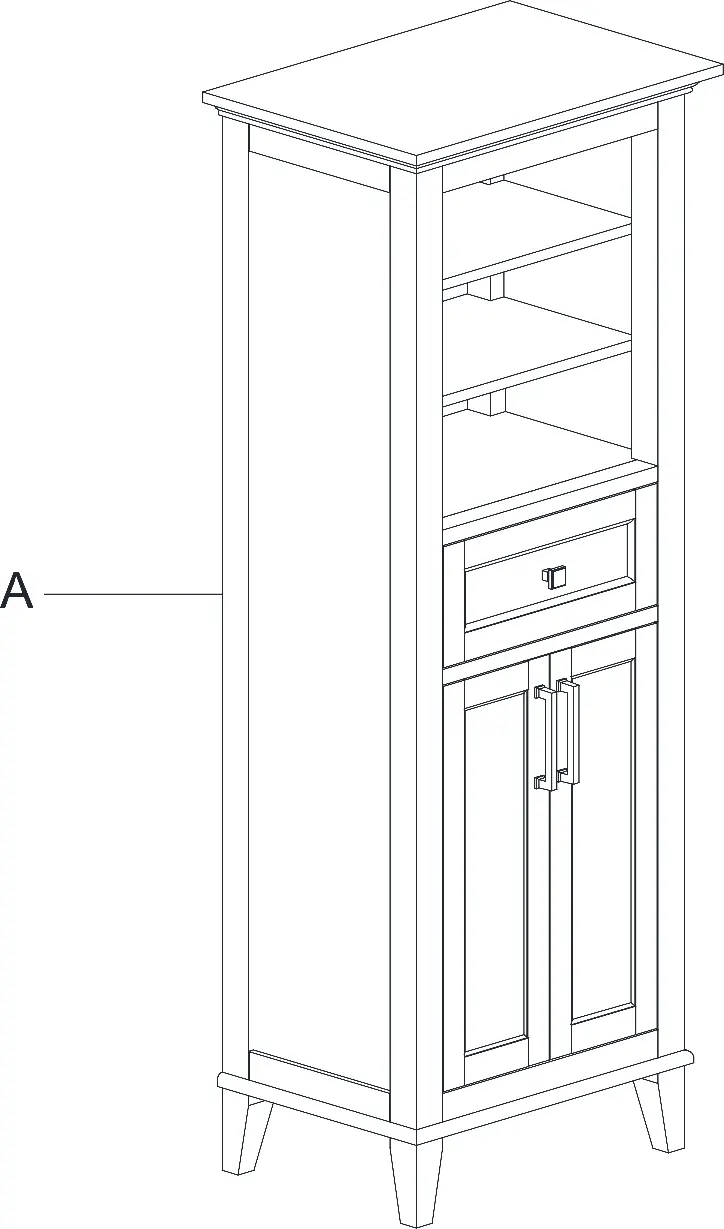

This document provides assembly instructions for the Home Decorators Collection Grayson 23 Inch W Linen Cabinet. Key safety requirements include mounting the unit to the wall or floor using the provided tip restraint hardware to prevent tipping. The cabinet is designed to hold a maximum of 50 lbs.

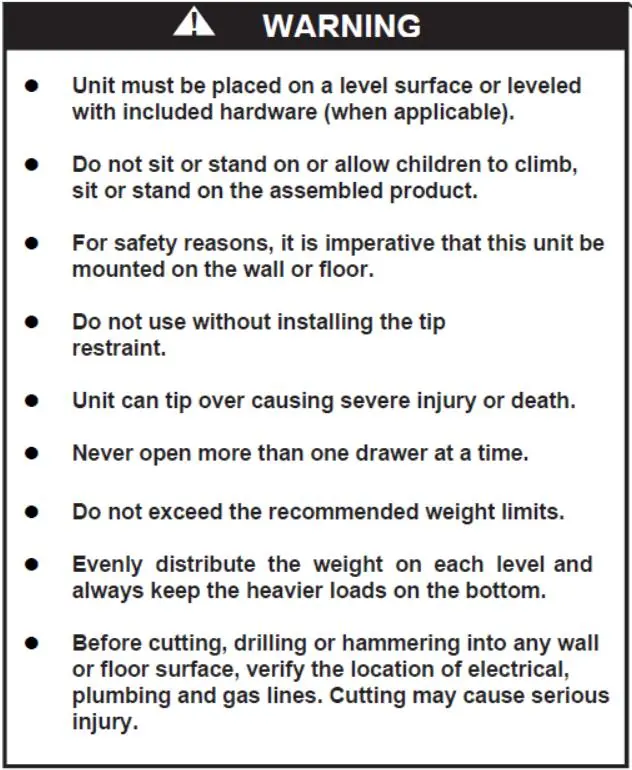

Safety Information
Warning: The unit must be placed on a level surface. Do not exceed the weight limit of 50 lbs. For safety, the unit must be mounted to the wall or floor. Never open more than one drawer at a time. Keep small parts away from children during assembly.
Tools Required
- Electric drill with #2 drill bit
- Phillips screwdriver
- Tape measure
- Level
- Safety goggles
Assembly

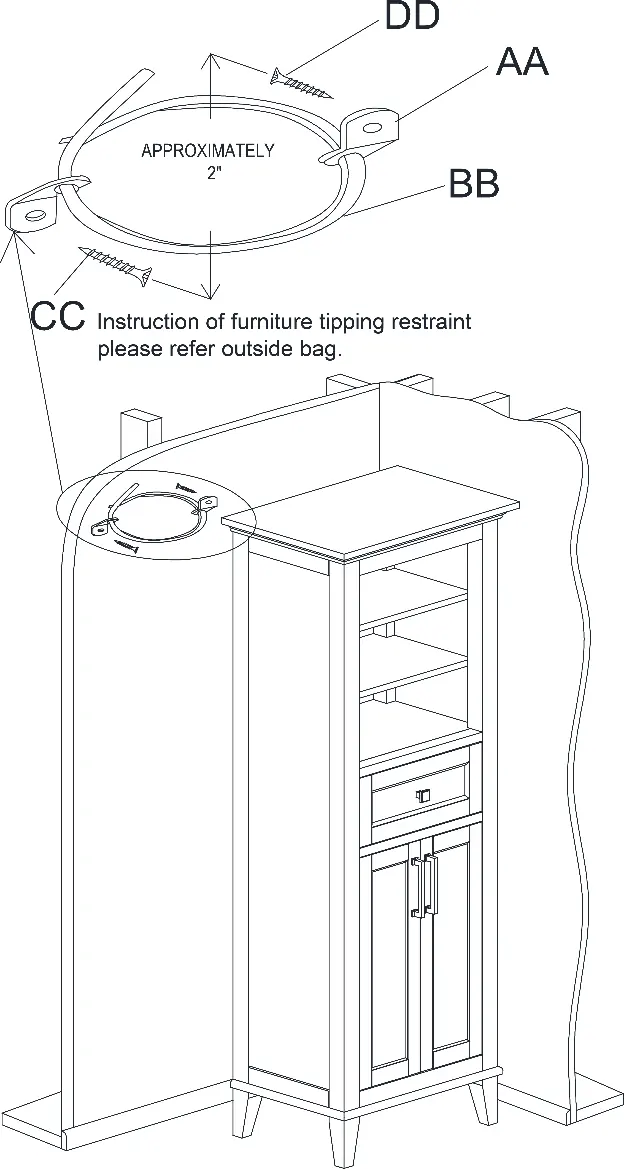

The primary assembly task is installing the tip restraint hardware. This should be performed by at least 2 people.
- Drill a hole in the wall and insert the plastic plug (EE).
- Attach a bracket (AA) to the back top rail of the cabinet using the short screw (DD).
- Install a second bracket (AA) on the wall stud, 2 inches below the cabinet bracket, using the long screw (CC) and plastic plug (EE).
- Position the cabinet so the brackets are vertically aligned.
- Lace the restraint strap (BB) through the brackets, pull tight, and lock.
Maintenance and Care
Avoid placing the cabinet in direct sunlight or near heat/air vents. Dust frequently with a clean, soft, dry cloth. Wipe spills immediately.
Troubleshooting
If there is an uneven gap between the doors and the cabinet, adjust the leg levelers to ensure the unit is level, or adjust the door hinges.
Manufacturer information
Home Decorators Collection
Practical help
Common problems
Uneven gap between the doors and cabinet
Adjust the leg levelers to ensure the cabinet is level, or adjust the door hinges.
Before use
- Check for missing parts
- Ensure you have a drill, screwdriver, tape measure, and level
- Verify wall stud location
- Ensure 2 people are available for assembly
Show more Show less
Specs in practice
- Weight Limit
- The cabinet is designed to hold 50 lbs. Exceeding this may cause injury or damage.
Images and diagrams
- The assembly section focuses on installing the tip restraint hardware to prevent the cabinet from tipping over.
