Ideal Evojet Condensing Pressure Jet Boiler Technical Manual
Technical guide and specification sheet for the Ideal Evojet condensing pressure jet boiler. Includes dimensions, installation clearances, technical parameters, and exploded assembly diagrams.
Quick answers from the manual
Quick answer
- The Ideal Evojet is a range of floor-standing condensing pressure jet boilers (150-3000kW) designed for central heating and indirect hot water systems, featuring stainless steel heat exchangers and multiple burner options. p. 1, 2
Key actions
- Maintain minimum clearances for operation and servicing: Front (Burner Length + 600mm), Sides (1500mm), Rear (1000mm), Top (1000mm). p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max working pressure | 6 bar | Maximum operating pressure for the system. | p. 3 |
| Electrical supply | 230V ± 10% 50Hz 1 Ph | Required power supply. | p. 3 |
Show 1 more answers Show less
Where to find it in the PDF
- Cover and Features p. 1
- Dimensions, Clearances, and Assembly p. 2
- Technical Specifications p. 3
- Engineering Specification p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

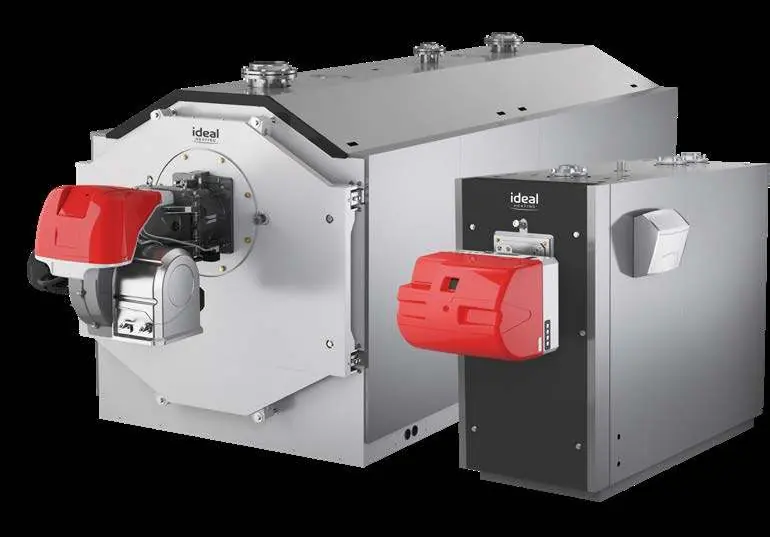

The Ideal Evojet is a range of floor-standing condensing pressure jet boilers available in 14 models with outputs ranging from 150kW to 3000kW. These boilers are designed for central heating and, when used with a suitable storage cylinder, can produce domestic hot water. They feature a stainless steel heat exchanger and are compatible with Natural Gas, LPG, or Oil.
Dimensions and Clearances
To ensure proper operation and maintenance, the following minimum clearances must be maintained:
- Front: Burner length + 600mm (for access/maintenance) or Boiler length (for cleaning).
- Sides: 1500mm (minimum).
- Rear: 1000mm (minimum).
- Top: 1000mm (minimum).
Boiler Assembly

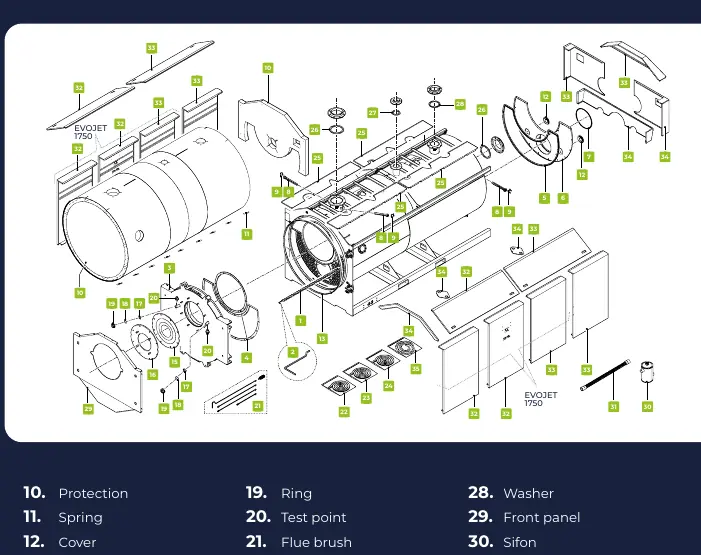

The boiler assembly consists of various components including the diffuser, hook, door, fumes chamber, probe holder pocket, burner flange, and panelling assemblies. Refer to the exploded view diagram in the manual for the specific location and identification of these parts (numbered 1-35).
Technical Specifications
Key technical parameters for the Evojet 2100kW model include:
- Efficiency: Up to 109.3% part load efficiency (NCV 50/30).
- Max Working Pressure: 6 bar.
- Electrical Supply: 230V ± 10% 50Hz 1 Phase.
- Power Consumption: 250 Watts.
- Flow Connections: DN200 PN6.
- Condensate Connection: 1.25 inches.
Engineering Specification
The boilers are designed for fully automatic control. Control options include Two Stage Burner, Modulating Burner, BMS 0-10V, and Oil & Dual Fuel. The system supports frost protection, weather or room compensation, and system pump control when used with external components.
Practical help
Common problems
Insufficient gas pressure
Standard design requirements are based on 20mbar. If the available pressure is lower or different fuel types are used, consult your sales contact for alternative matching or a gas booster kit.
Burner compatibility
Certain burner types require higher minimum gas pressure. Confirm specific burner requirements with your sales contact.
Before use
- Verify that the installation location meets the minimum clearance requirements (Front, Sides, Rear, Top).
- Ensure the fuel supply (Natural Gas, LPG, or Oil) matches the burner configuration.
- Confirm that the system flow rates meet the minimum requirements for the specific boiler model.
- Check that the electrical supply is 230V 50Hz 1 Phase.
- Ensure the system is a fully pumped sealed water system.
Show more Show less
Specs in practice
- Part load efficiency
- Up to 109.3% (NCV 50/30), indicating high energy efficiency during partial load operation.
- Max working pressure
- 6 bar; the maximum pressure the system should operate at.
Images and diagrams
- The exploded view diagram identifies 35 key components of the boiler assembly, including the diffuser, burner flange, and various panelling assemblies.
Model compatibility
- Compatible with Natural Gas, LPG, and Oil.
- Suitable for open flued application in B23 configuration.
- B23P configuration is only compatible with a premix gas burner.
Manual page author
David Miller
Documentation analyst
