User Guide for Ideal Evojet 210kW Condensing Pressure Jet Boiler
Quick guide for the Ideal Evojet 210kW condensing pressure jet boiler. Includes technical specifications, installation clearances, assembly diagram, and operational requirements.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ideal Evojet 210kW is a floor-standing condensing pressure jet boiler designed for commercial applications. It is part of a range of 14 models with outputs from 150-3000kW. This document provides essential technical specifications, installation requirements, and assembly details for the 210kW model.

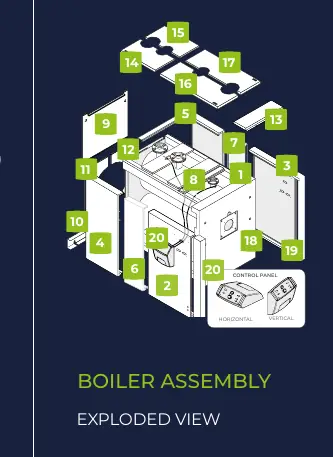

Boiler Assembly
The boiler consists of 20 main components, including the boiler frame, various side and top panels, and the control panel. Refer to the exploded view diagram in the manual for the identification of parts 1 through 20, which include the boiler frame, side panels, rear panels, and top panels.
Technical Specifications
Electrical: The unit requires a 230V ± 10% 50Hz 1 Ph supply with a 6.3A fuse rating and 250W power consumption.
Hydraulics: The boiler has a maximum working pressure of 6 bar and a water content of 360 litres. Flow and return connections are DN65 PN6, with a return connection (ht) of DN50 PN6.
Performance: The boiler features a part load efficiency of up to 109.3% (NCV 50/30) and a seasonal efficiency of 96.4% (Part L vol.2 2022).
Installation and Clearances
To ensure proper operation and servicing, the following minimum clearances must be maintained:
- Front: Burner length + 600mm (for access/maintenance) or Boiler length (for cleaning).
- Sides: 1000mm minimum.
- Rear: 1000mm minimum.
- Top: 1000mm minimum.
Operational Features
The Evojet range is designed for high efficiency with a stainless steel heat exchanger and triple flue pass. It supports modulation via 0-10 volt BMS or RWF controller. The boiler is compatible with Natural Gas, LPG, and Oil, depending on the burner selection.
Practical help
Common problems
Insufficient clearance for maintenance
Ensure 1000mm clearance on sides, rear, and top. Front clearance must be at least the burner length plus 600mm for access.
Boiler not starting or operating incorrectly
Verify electrical supply (230V 50Hz), check fuse rating (6.3T), and ensure gas pressure is at least 20mbar for Natural Gas.
Before use
- Verify the fuel type (Natural Gas, LPG, or Oil) matches the burner configuration.
- Ensure the electrical supply is 230V 50Hz.
- Confirm that minimum flow rates are met as per the specification table.
- Check that all installation clearances (1000mm sides/rear/top) are maintained.
- Ensure the system is fully pumped and sealed.
Show more Show less
Specs in practice
- Part load efficiency
- Up to 109.3% efficiency at 50/30°C, indicating high energy performance.
- Max working pressure
- 6 bar maximum operating pressure for the heating system.
- Electrical supply
- 230V ± 10% 50Hz 1 Ph power requirement.
Images and diagrams
- The exploded view diagram identifies 20 components, including the boiler frame, side panels, and control panel.
- Clearance diagram indicates the required space around the boiler for servicing and cleaning.
Model compatibility
- Compatible with 0-10V DC BMS or Siemens RWF controllers.
- Suitable for open flued application in B23 configuration.
- B23P configuration is only compatible with a premix gas burner.
